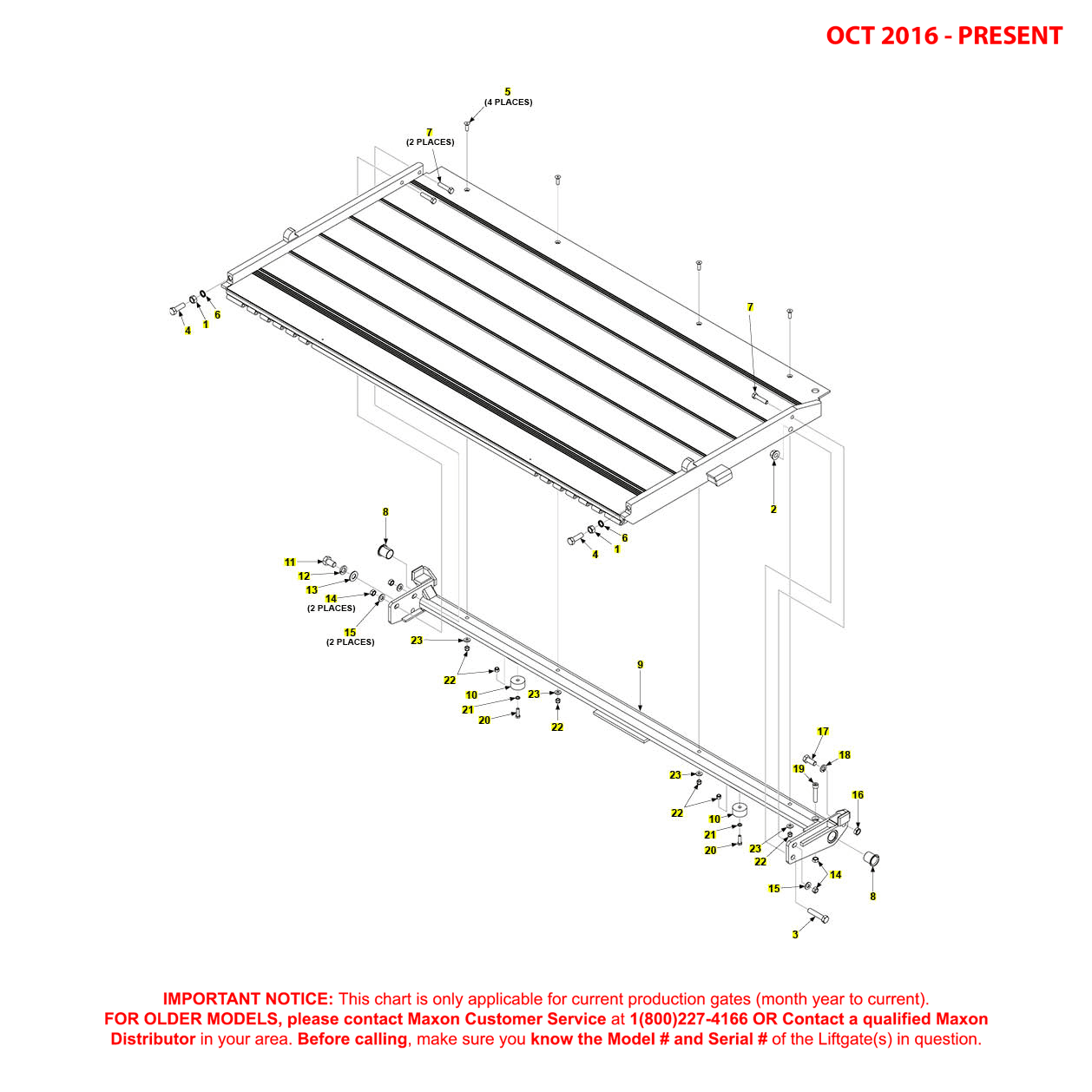

Maxon BMR (Oct 2016 - Present) Aluminum Platform Assembly Diagram

Maxon BMR (Oct 2016 – Present) Aluminum Platform Assembly Diagram

SKU: BMR-OCT16-PRES-ALPFA-DG Category:
ID Image Title SKU Price Quantity Add to Cart
0Maxon 286860-13 - P/F and C-Bar Assembly AL 85X42Maxon 286860-13 - P/F and C-Bar Assembly AL 85X42286860-13-MAXO$3,125.85
0Maxon 286860-42 - P/F and C-Bar Assembly AL 85X36 MGMaxon 286860-42 - P/F and C-Bar Assembly AL 85X36 MG286860-42-MAXO$2,695.88
0Maxon 286860-43 - P/F and C-Bar Assembly AL 85 X 42 MGMaxon 286860-43 - P/F and C-Bar Assembly AL 85 X 42 MG286860-43-MAXO$2,964.00
2Maxon 901023-04 - Flange Lock Nut 63-11 ZCMaxon 901023-04 - Flange Lock Nut 63-11 ZC901023-04-MAXO$1.82
3Maxon 900055-08 - Screw Hex Head .625-11UNC X 3 InchMaxon 900055-08 - Screw Hex Head .625-11UNC X 3 Inch900055-08-MAXO$2.40
4Maxon 900055-04 - Screw Hex Head .625-11UNC X 2 InchMaxon 900055-04 - Screw Hex Head .625-11UNC X 2 Inch900055-04-MAXO$1.77
5Maxon 900040-5 - Screw FLHD SOC 3/8-16 X 1-1/4ZCMaxon 900040-5 - Screw FLHD SOC 3/8-16 X 1-1/4ZC900040-5-MAXO$1.47
6Maxon 903435-09 - Washer Nord-Lock .63/M16 ZCMaxon 903435-09 - Washer Nord-Lock .63/M16 ZC903435-09-MAXO$5.81
7Maxon 900035-6 - Screw Cap HXHD .5-13UNC-2A 2.25Maxon 900035-6 - Screw Cap HXHD .5-13UNC-2A 2.25900035-6-MAXO$1.61
8Maxon 908007-05 - Bearing Flanged 1.25 SHFT 1.5 Inch LGMaxon 908007-05 - Bearing Flanged 1.25 SHFT 1.5 Inch LG908007-05-MAXO$4.47
9Maxon 286855-01 - C-Bar Weldment AL P/F 96 W TRKMaxon 286855-01 - C-Bar Weldment AL P/F 96 W TRK286855-01-MAXO$721.04
9Maxon 286855-02 - C-Bar Weldment AL P/F 102 W TRKMaxon 286855-02 - C-Bar Weldment AL P/F 102 W TRK286855-02-MAXO$726.03
10Maxon 253516 - Bumper 2 X 1 Inch RubberMaxon 253516 - Bumper 2 X 1 Inch Rubber253516-MAXO$21.08
11Maxon 900032-1 - Screw HEX HD 3/4-10 X 1-1/2 ZCMaxon 900032-1 - Screw HEX HD 3/4-10 X 1-1/2 ZC900032-1-MAXO$2.75
12Maxon 902011-9 - Washer Lock .750 .188 THKMaxon 902011-9 - Washer Lock .750 .188 THK902011-9-MAXO$0.50
13Maxon 902000-20 - Flat Washer - .750 .090 Inch THKMaxon 902000-20 - Flat Washer - .750 .090 Inch THK902000-20-MAXO$1.31
15Maxon 902013-13 - Washer Flat 1/2 Inch SAE ZCMaxon 902013-13 - Washer Flat 1/2 Inch SAE ZC902013-13-MAXO$0.57
17Maxon 900055-02 - Screw Hex Head .625-11UNC X 1.5 InchMaxon 900055-02 - Screw Hex Head .625-11UNC X 1.5 Inch900055-02-MAXO$1.94
18Maxon 902011-8 - Washer Lock .625 .156 Inch THKMaxon 902011-8 - Washer Lock .625 .156 Inch THK902011-8-MAXO$0.30
19Maxon 900036-11 - Screw SOCHD .5-13UNC-2A 2.50 InchMaxon 900036-11 - Screw SOCHD .5-13UNC-2A 2.50 Inch900036-11-MAXO$3.59
20Maxon 900014-5 - Screw Hex Cap - .38-16 X 1.25 G8 ZCMaxon 900014-5 - Screw Hex Cap - .38-16 X 1.25 G8 ZC900014-5-MAXO$0.72
21Maxon 902000-10 - Washer Flat .375 X .063 THKMaxon 902000-10 - Washer Flat .375 X .063 THK902000-10-MAXO$0.36
22Maxon 901002 - Nut Nylon 3/8-16 ZincMaxon 901002 - Nut Nylon 3/8-16 Zinc901002-MAXO$0.36
23Maxon 902001-2 - Flat Washer 3/8 X 1/16 Inch ZCMaxon 902001-2 - Flat Washer 3/8 X 1/16 Inch ZC902001-2-MAXO$0.18

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
