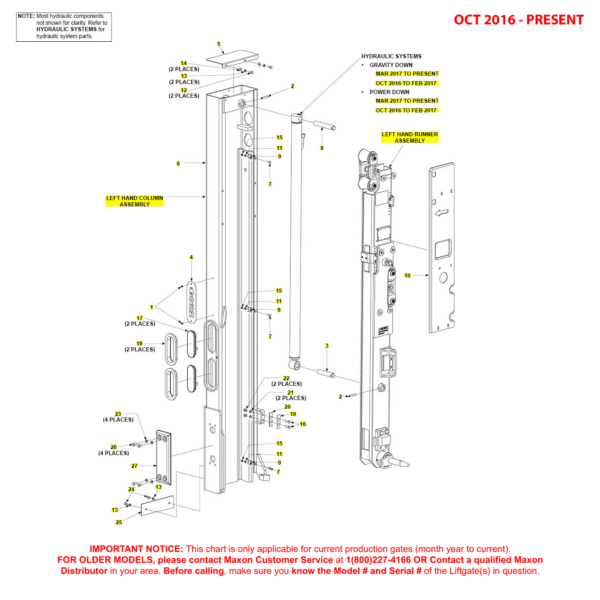

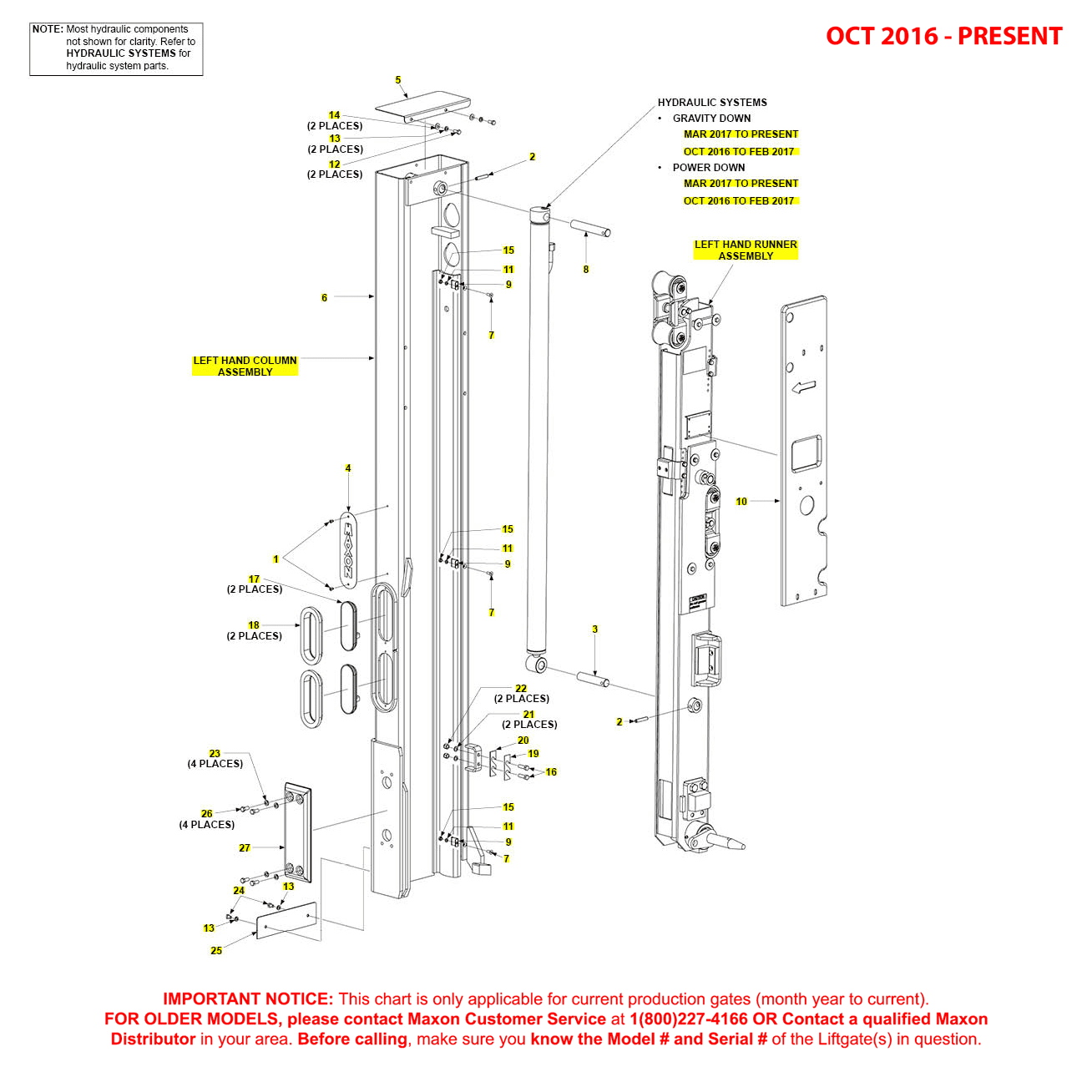

Maxon BMR (Oct 2016 - Present) Left Hand Column Assembly Diagram

Maxon BMR (Oct 2016 – Present) Left Hand Column Assembly Diagram

SKU: BMR-OCT16-PRES-LHCA-DG Category:
ID Image Title SKU Price Quantity Add to Cart
0Maxon 286215-01G - COL Assembly BMR44 LH 12V GALVMaxon 286215-01G - COL Assembly BMR44 LH 12V GALV286215-01G-MAXO$6,611.48
0Maxon 286215-02G-100 - COL Assembly BMR66 LH 12V GALV W/SLDE PadMaxon 286215-02G-100 - COL Assembly BMR66 LH 12V GALV W/SLDE Pad286215-02G-100-MAXO$6,423.30
0Maxon 286215-02G - Column Assembly BMR66 LH 12V GALVMaxon 286215-02G - Column Assembly BMR66 LH 12V GALV286215-02G-MAXO$6,670.95
1Maxon 904005-2 - Rivet - Blind Stainless Steel Dome - .187X.565Maxon 904005-2 - Rivet - Blind Stainless Steel Dome - .187X.565904005-2-MAXO$0.72
2Maxon 904717-06 - ZN Roll Pin - 0.38 x 2 InchesMaxon 904717-06 - ZN Roll Pin - 0.38 x 2 Inches904717-06-MAXO$0.60
3Maxon 268068-07 - Pin SST 1 DIA X 4.91 LG InchMaxon 268068-07 - Pin SST 1 DIA X 4.91 LG Inch268068-07-MAXO$32.84
4Maxon 260478 - Maxon VERT Plate 3 X 10.125 X .031 InchMaxon 260478 - Maxon VERT Plate 3 X 10.125 X .031 Inch260478-MAXO$23.52
5Maxon 295744-11 - Cover LH Column Top GALVMaxon 295744-11 - Cover LH Column Top GALV295744-11-MAXO$19.29
6Maxon 286221-01G - Column Weldment LH GALVMaxon 286221-01G - Column Weldment LH GALV286221-01G-MAXO$1,833.98
7Maxon 900711-03 - Screw SOC FL .25-20 X .75 Inch SSMaxon 900711-03 - Screw SOC FL .25-20 X .75 Inch SS900711-03-MAXO$0.30
8Maxon 268068-06 - Pin SST 1 DIA X 6.32 Inch LGMaxon 268068-06 - Pin SST 1 DIA X 6.32 Inch LG268068-06-MAXO$43.14
9Maxon 286276-01 - ClampMaxon 286276-01 - Clamp286276-01-MAXO$6.54
10Maxon 286326-01 - Cover Column LHMaxon 286326-01 - Cover Column LH286326-01-MAXO$284.57
11Maxon 902019-3 - Washer Lock S/ST .487 OD X .260 ID InchMaxon 902019-3 - Washer Lock S/ST .487 OD X .260 ID Inch902019-3-MAXO$0.12
12Maxon 901602-04 - Bolt Hex .313-18 X 0.75 Inch 18-8 SSMaxon 901602-04 - Bolt Hex .313-18 X 0.75 Inch 18-8 SS901602-04-MAXO$0.32
13Maxon 902019-4 - Washer Lock S/ST .583 OD X .322 ID InchMaxon 902019-4 - Washer Lock S/ST .583 OD X .322 ID Inch902019-4-MAXO$0.12
14Maxon 903409-02 - Washer Fend .34 X .75 OD Inch SSMaxon 903409-02 - Washer Fend .34 X .75 OD Inch SS903409-02-MAXO$0.20
15Maxon 903107-03 - Nut Hex .25-20 UNC SSMaxon 903107-03 - Nut Hex .25-20 UNC SS903107-03-MAXO$0.20
16Maxon 900014-5 - Screw Hex Cap - .38-16 X 1.25 G8 ZCMaxon 900014-5 - Screw Hex Cap - .38-16 X 1.25 G8 ZC900014-5-MAXO$0.72
17Maxon 285371-02 - Lamp LED S/T and T Oval TRK-LITEMaxon 285371-02 - Lamp LED S/T and T Oval TRK-LITE285371-02-MAXO$63.53
18Maxon 261687-01 - GrommetMaxon 261687-01 - Grommet261687-01-MAXO$4.41
19Maxon 288799-02 - Spacer .03 ThickMaxon 288799-02 - Spacer .03 Thick288799-02-MAXO$4.25
20Maxon 288799-01 - Spacer .06 ThickMaxon 288799-01 - Spacer .06 Thick288799-01-MAXO$4.71
21Maxon 903447-02 - Flat Washer .375 X .063 Inch THK SSMaxon 903447-02 - Flat Washer .375 X .063 Inch THK SS903447-02-MAXO$0.17
22Maxon 903134-01 - Nut Nylon Insert Stop .375-16 SSMaxon 903134-01 - Nut Nylon Insert Stop .375-16 SS903134-01-MAXO$0.38
23Maxon 902019-5 - Washer Lock S/ST .680 OD X .385 ID InchMaxon 902019-5 - Washer Lock S/ST .680 OD X .385 ID Inch902019-5-MAXO$0.45
24Maxon 900009-4 - Screw Cap 5/16-18 X 1/2 Inch GR8 ZCMaxon 900009-4 - Screw Cap 5/16-18 X 1/2 Inch GR8 ZC900009-4-MAXO$0.27
25Maxon 286265-01 - CoverMaxon 286265-01 - Cover286265-01-MAXO$19.59
26Maxon 900764-05 - Screw Hex Cap .38-16 X .88 Inch SSMaxon 900764-05 - Screw Hex Cap .38-16 X .88 Inch SS900764-05-MAXO$0.59
27Maxon 297131-01 - BMR Loading Dock BumperMaxon 297131-01 - BMR Loading Dock Bumper297131-01-MAXO$35.99

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
