| ID | Image | Title | SKU | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|
| 1 |  | Maxon 900014-12 - Screw Hex Cap 0.38-16 X .63 Inch G8 ZC | 900014-12-MAXO | $0.74 | ||
| 2 | | Maxon 902011-4 - Washer Lock 3/8 X .094 ZC | 902011-4-MAXO | $0.15 | ||
| 3 | | Maxon 263221 - Upper Pad Support Assembly | 263221-MAXO | $52.82 | ||
| 4 | | Maxon 263030 - Spacer | 263030-MAXO | $4.59 | ||
| 4 | | Maxon 269677-01 - 16GA Spacer | 269677-01-MAXO | $1.77 | ||
| 5 | | Maxon 253614 - Chain Bracket Weldment | 253614-MAXO | $62.31 | ||
| 5 | | Maxon 253645 - Gusset Chain Bracket | 253645-MAXO | $2.88 | ||
| 6 | | Maxon 900014-3 - Screw Hex Head .38-16 X .75 Inch G8 ZC | 900014-3-MAXO | $0.54 | ||
| 7 | | Maxon 280067 - Arm Weldment | 280067-MAXO | $18.27 | ||
| 8 | | Maxon 900004-8 - Screw Cap 1/4-20 X 2 Inch GR8 ZC | 900004-8-MAXO | $0.53 | ||
| 9 | | Maxon 269227-01 - Pin Collar | 269227-01-MAXO | $10.41 | ||
| 10 | | Maxon 901000 - Nylon Nut 1/4-20 Inch Zinc | 901000-MAXO | $0.15 | ||
| 11 | | Maxon 901001 - Nut - Nylon - 5/16-18 Zinc | 901001-MAXO | $0.18 | ||
| 12 | | Maxon 225278-02 - Rubber Bumper 3/4 x 1.5 x 5 - 2 Hole | 225278-02-MAXO | $24.86 | ||
| 13 | | Maxon 902013-10 - Washer Flat 5/16 Inch SAE ZC | 902013-10-MAXO | $0.18 | ||
| 14 | | Maxon 900001-4 - Screw BUT 5/16-18 X 1-1/4 Inch Alloy | 900001-4-MAXO | $1.97 | ||
| 15 | | Maxon 263225 - Lower Pad Support Assembly | 263225-MAXO | $49.19 | ||
| 16 | | Maxon 908011-01 - BRG CMPST 2.25 X 2.50 X 2.13 Inch LG | 908011-01-MAXO | $19.43 | ||
| 17 | | Maxon 253595 - Bearing Self Lube 1.25 X 1 Inch FLANG | 253595-MAXO | $24.00 | ||
| 18 | | Maxon 207644 - Rivet BLND 0.19 X.58 Dome | 207644-MAXO | $0.32 | ||
| 19 | | Maxon 253543 - Pad .28 DIA | 253543-MAXO | $69.38 | ||
| 20 | | Maxon 224342 - 1/4 Self Drill Grease Fitting | 224342-MAXO | $0.45 |
BMRA (Sep 2013 - Dec 2015) Diagrams

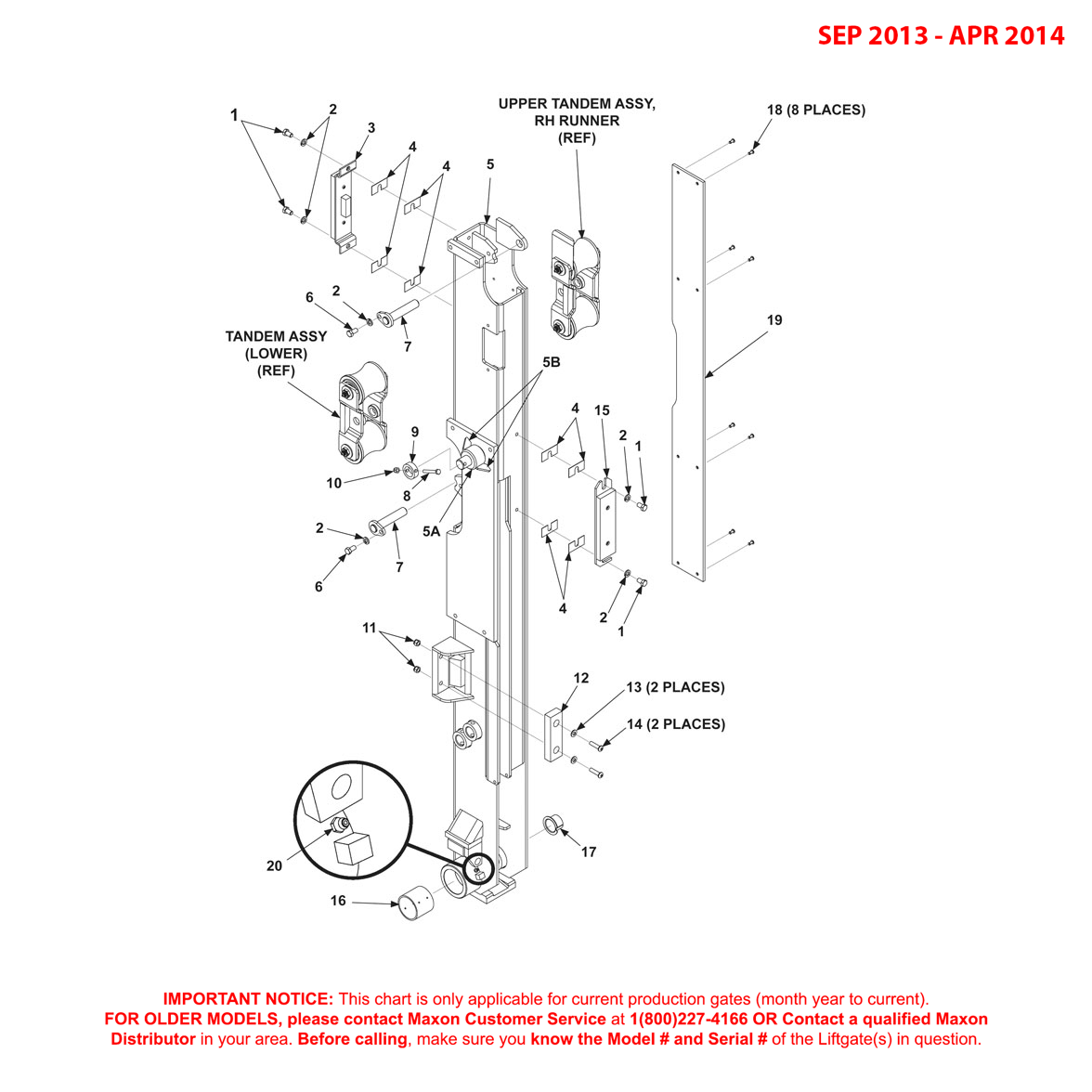

Maxon BMRA (Sep 2013 – Apr 2014) Right Hand Runner Assembly Diagram
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:
- LOCATE YOUR SERIAL PLATE on your Liftgate.
- LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
- IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
- IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
