| ID | Image | Title | SKU | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|
| 1 |  | Maxon 264697-06 - Ramp Aluminum .375 X 16 X 74 Inch | 264697-06-MAXO | $1,292.85 | ||
| 1 | | Maxon 264697-07 - Ramp Aluminum .375 X 16 X 80 Inch | 264697-07-MAXO | $1,348.43 | ||
| 2 | | Maxon 253526-01 - Hinge Arm Weldment L/H GALV | 253526-01-MAXO | $76.35 | ||
| 3 | | Maxon 902001-2 - Flat Washer 3/8 X 1/16 Inch ZC | 902001-2-MAXO | $0.18 | ||
| 5 | | Maxon 905363-01 - Rubber Bumper 2.0 X .88 Inch | 905363-01-MAXO | $5.15 | ||
| 6 | | Maxon 900040-5 - Screw FLHD SOC 3/8-16 X 1-1/4ZC | 900040-5-MAXO | $1.47 | ||
| 8 | | Maxon 900040-6 - Screw FLHD SOC 3/8-16 X 1-1/2ZC | 900040-6-MAXO | $1.50 | ||
| 9 | | Maxon 264586 - Pin Weldment 0.750 | 264586-MAXO | $14.70 | ||
| 10 | | Maxon 269555-01 - Hinge Weldment R/H GALV | 269555-01-MAXO | $188.00 | ||
| 11 | | Maxon 905033-2 - Roll Pin - 1/4 X 1-1/4 Inch ZINC | 905033-2-MAXO | $0.33 | ||
| 12 | | Maxon 253528 - Pin | 253528-MAXO | $42.69 | ||
| 13 | | Maxon 253541 - Bearing Self Lube 1X2 | 253541-MAXO | $22.46 | ||
| 14 | | Maxon 904717-06 - ZN Roll Pin - 0.38 x 2 Inches | 904717-06-MAXO | $0.60 | ||
| 15 | | Maxon 264577 - Pin Weldment 0.50 | 264577-MAXO | $12.05 | ||
| 16 | | Maxon 253542 - Bearing Self Lube 1/2 X 1/2 Inch | 253542-MAXO | $13.04 | ||
| 16 | | Maxon 269553-01 - Locking Arm Assembly | 269553-01-MAXO | $58.11 | ||
| 16 | | Maxon 901011-6 - Nut Hex Head .375-24 UNF-2B | 901011-6-MAXO | $0.48 | ||
| 16 | | Maxon 903435-06 - Washer Nord-Lock .38/M10 ZC | 903435-06-MAXO | $2.60 | ||
| 17 | | Maxon 264638 - Torsion Spring LH | 264638-MAXO | $23.31 | ||
| 19 | | Maxon 260917-06 - Bearing Self Lube 3/4 X 1 Inch (260747) | 260917-06-MAXO | $8.60 | ||
| 19 | | Maxon 264639 - Locking Cam Assembly | 264639-MAXO | $154.67 |
BMRA (Sep 2013 - Dec 2015) Diagrams

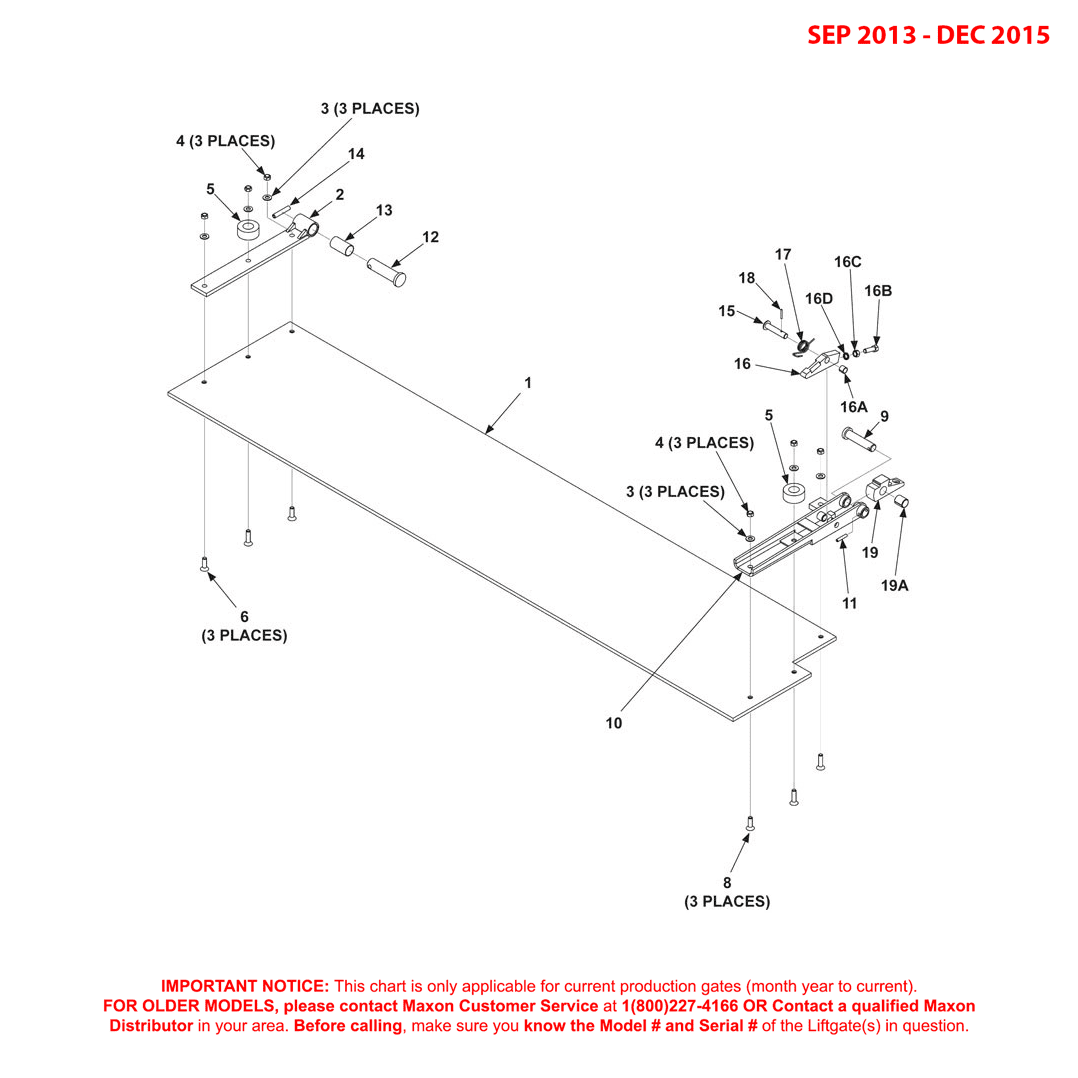

Maxon BMRA (Sep 2013 – Dec 2015) Aluminum Retention Ramp Assembly Diagram For Aluminum Platforms
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:
- LOCATE YOUR SERIAL PLATE on your Liftgate.
- LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
- IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
- IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
