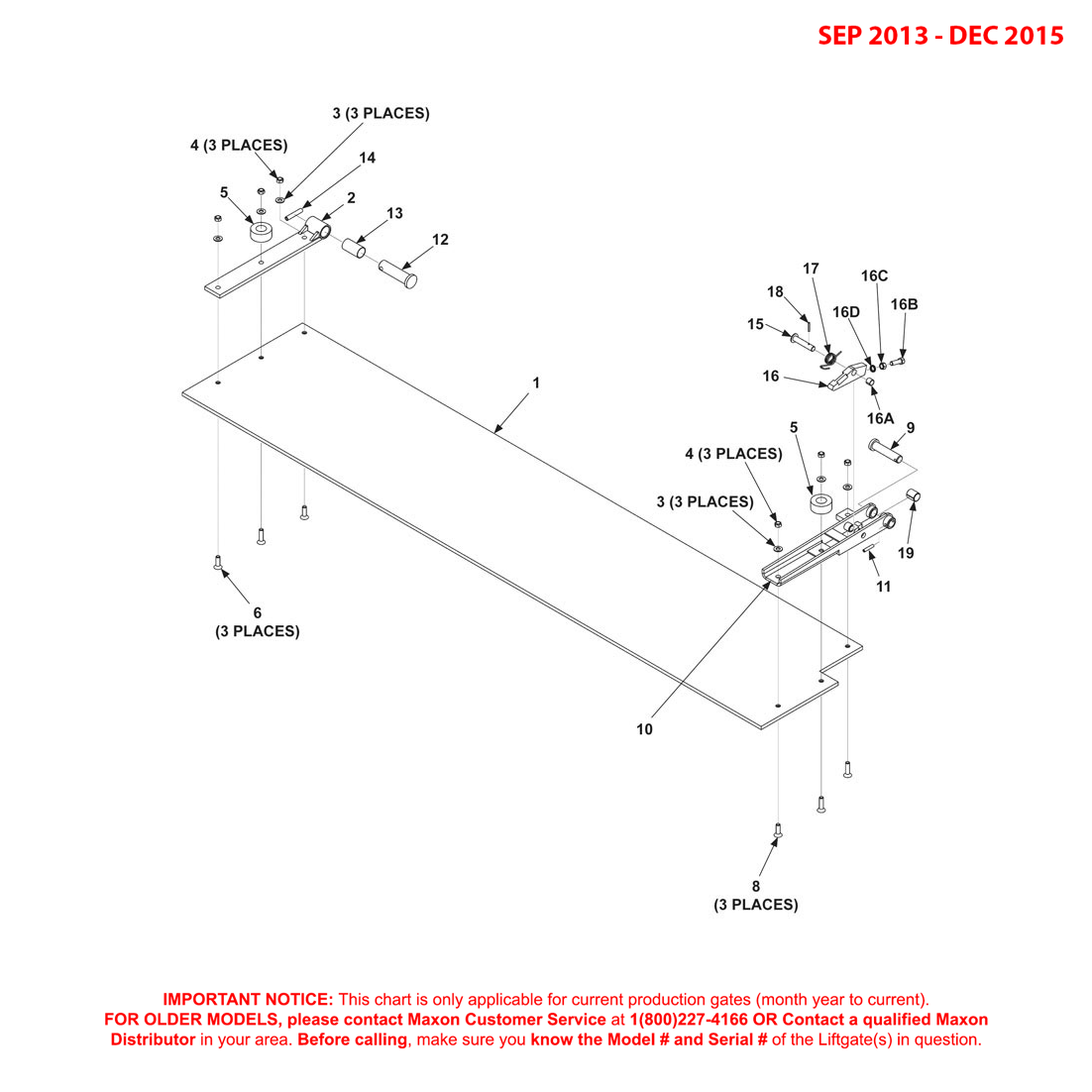

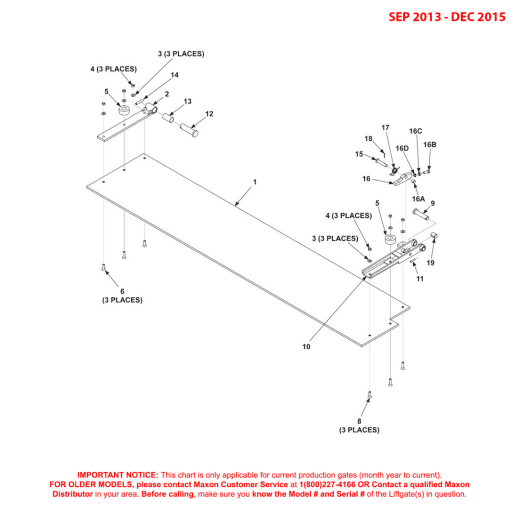

Maxon BMRA (Sep 2013 - Dec 2015) Dual Pump Box Assembly Diagram From ITEParts.com

ID	Title	SKU	Price
1	Maxon 264697-02 - Ramp Aluminum .375 X 16 X 77 Inch	264697-02-MAXO	$1,321.13
1	Maxon 264697-03 - Ramp Aluminum .375 X 16 X 83 Inch	264697-03-MAXO	$1,356.23
2	Maxon 253526-01 - Hinge Arm Weldment L/H GALV	253526-01-MAXO	$76.35
3	Maxon 902001-2 - Flat Washer 3/8 X 1/16 Inch ZC	902001-2-MAXO	$0.18
5	Maxon 905363-01 - Rubber Bumper 2.0 X .88 Inch	905363-01-MAXO	$5.15
6	Maxon 900040-5 - Screw FLHD SOC 3/8-16 X 1-1/4ZC	900040-5-MAXO	$1.47
8	Maxon 900040-6 - Screw FLHD SOC 3/8-16 X 1-1/2ZC	900040-6-MAXO	$1.50
9	Maxon 264586 - Pin Weldment 0.750	264586-MAXO	$14.70
10	Maxon 269555-01 - Hinge Weldment R/H GALV	269555-01-MAXO	$188.00
11	Maxon 905033-2 - Roll Pin - 1/4 X 1-1/4 Inch ZINC	905033-2-MAXO	$0.33
12	Maxon 253528 - Pin	253528-MAXO	$42.69
13	Maxon 253541 - Bearing Self Lube 1X2	253541-MAXO	$22.46
14	Maxon 904717-06 - ZN Roll Pin - 0.38 x 2 Inches	904717-06-MAXO	$0.60
15	Maxon 264577 - Pin Weldment 0.50	264577-MAXO	$12.05
16	Maxon 253542 - Bearing Self Lube 1/2 X 1/2 Inch	253542-MAXO	$13.04
16	Maxon 269553-01 - Locking Arm Assembly	269553-01-MAXO	$58.11
16	Maxon 901011-6 - Nut Hex Head .375-24 UNF-2B	901011-6-MAXO	$0.48
16	Maxon 903435-06 - Washer Nord-Lock .38/M10 ZC	903435-06-MAXO	$2.60
17	Maxon 264638 - Torsion Spring LH	264638-MAXO	$23.31
19	Maxon 260917-06 - Bearing Self Lube 3/4 X 1 Inch (260747)	260917-06-MAXO	$8.60

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

LOCATE YOUR SERIAL PLATE on your Liftgate.
LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
