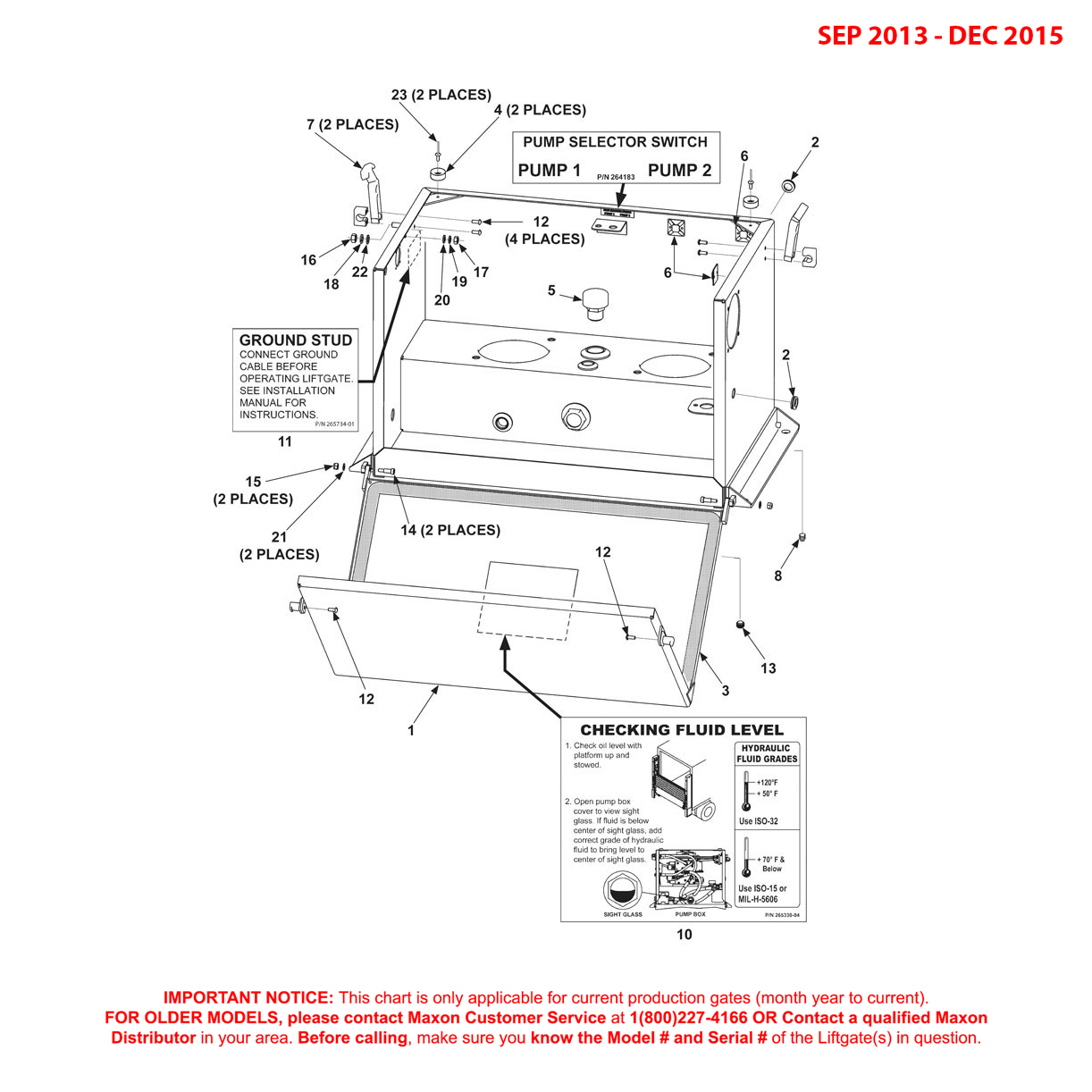

Maxon BMRA (Sep 2013 - Dec 2015) Dual Pump Box Assembly Diagram
,

Maxon BMRA (Sep 2013 – Dec 2015) Dual Pump Box Assembly Diagram

SKU: BMRA-SEP13-DEC15-DPBA-DG Categories: ,
ID Image Title SKU Price Quantity Add to Cart
1Maxon 268205-01 - Cover WeldmentMaxon 268205-01 - Cover Weldment268205-01-MAXO$225.56
2Maxon 261416 - Grommet 3/4 Inch RubberMaxon 261416 - Grommet 3/4 Inch Rubber261416-MAXO$1.49
3Maxon 261544-05 - Rubber Seal 106 InchMaxon 261544-05 - Rubber Seal 106 Inch261544-05-MAXO$20.67
4Maxon 262940 - Bumper Rubber 15/16 X 3/16 X 3/8Maxon 262940 - Bumper Rubber 15/16 X 3/16 X 3/8262940-MAXO$1.49
5Maxon 263369 - FillerMaxon 263369 - Filler263369-MAXO$24.98
6Maxon 263527 - Cable Tie Mounting BaseMaxon 263527 - Cable Tie Mounting Base263527-MAXO$1.43
7Maxon 263791 - LatchMaxon 263791 - Latch263791-MAXO$31.25
8Maxon 264271 - Plug 1/4 Inch MagnetizedMaxon 264271 - Plug 1/4 Inch Magnetized264271-MAXO$10.46
9Maxon 264183 - Decal Pump Selector SwitchMaxon 264183 - Decal Pump Selector Switch264183-MAXO$10.46
14Maxon 900060-3 - Screw Shoulder .25 DIA X .50 InchMaxon 900060-3 - Screw Shoulder .25 DIA X .50 Inch900060-3-MAXO$11.40
15Maxon 901003 - Nut Nylon 10-24 2B ZCMaxon 901003 - Nut Nylon 10-24 2B ZC901003-MAXO$0.11
16Maxon 901011-3 - Nut Hex Head .312-18 UNC-2BMaxon 901011-3 - Nut Hex Head .312-18 UNC-2B901011-3-MAXO$0.12
17Maxon 901011-1 - Nut Hex Head .250-20 UNC-2BMaxon 901011-1 - Nut Hex Head .250-20 UNC-2B901011-1-MAXO$0.11
18Maxon 902011-3 - Lock Washer 5/16 X 5/64 Inch G8 ZCMaxon 902011-3 - Lock Washer 5/16 X 5/64 Inch G8 ZC902011-3-MAXO$0.11
19Maxon 902011-2 - Lock Washer .25 X .062 Inch THKMaxon 902011-2 - Lock Washer .25 X .062 Inch THK902011-2-MAXO$0.08
20Maxon 902000-1 - Washer Flat 1/4 X 1/16 Inch USS ZCMaxon 902000-1 - Washer Flat 1/4 X 1/16 Inch USS ZC902000-1-MAXO$0.20
21Maxon 902000-5 - Washer Flat #10.032 THKMaxon 902000-5 - Washer Flat #10.032 THK902000-5-MAXO$0.12
22Maxon 902000-8 - Flat Washer - .312 .063 THKMaxon 902000-8 - Flat Washer - .312 .063 THK902000-8-MAXO$0.32
23Maxon 904004-3 - Rivet Blind .156DIA X .550 DomeMaxon 904004-3 - Rivet Blind .156DIA X .550 Dome904004-3-MAXO$0.14

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
