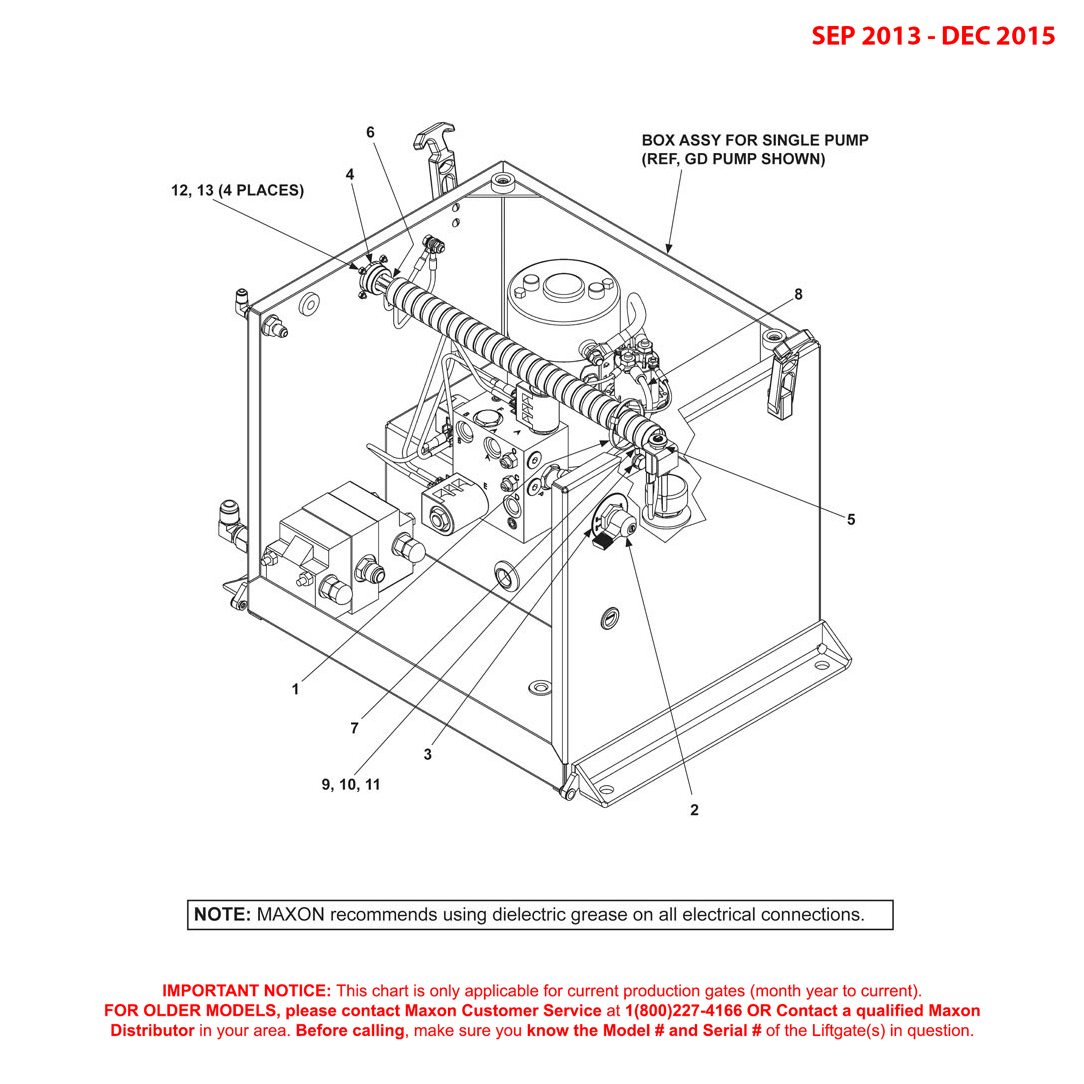

Maxon BMRA (Sep 2013 - Dec 2015) Gravity Down Single Pump Assembly Diagram (1 OF 2) From ITEParts.com

ID	Title	SKU	Price
1	Maxon 205780 - Tie Plastic 7 Inch (50 LB)	205780-MAXO	$0.30
2	Maxon 228754 - Master SW O-Ring Sealed Shaft	228754-MAXO	$119.85
3	Maxon 228755 - Plate Switch Face MAS Disc	228755-MAXO	$21.56
4	Maxon 263802-02 - Gasket Connector 6 Pin	263802-02-MAXO	$2.42
5	Maxon 264179 - Circuit Breaker 10AMP EXT MT	264179-MAXO	$22.80
6	Maxon 283302-01 - Harness Single Pump P/D BMRA	283302-01-MAXO	$233.09
6	Maxon 283303-01 - Harness Single Pump G/D BMRA	283303-01-MAXO	$206.52
7	Maxon 283312-01 - Wire Assembly 16GA #10/.31 Ring 9 Inch	283312-01-MAXO	$13.19
8	Maxon 284416-05 - Cable Assembly 2GA Red 175AMP 1.4F	284416-05-MAXO	$75.96
9	Maxon 900009-1 - Screw Cap 5/16-18 X 5/8 Inch GR8 ZC	900009-1-MAXO	$0.30
10	Maxon 902000-8 - Flat Washer - .312 .063 THK	902000-8-MAXO	$0.32
11	Maxon 902011-3 - Lock Washer 5/16 X 5/64 Inch G8 ZC	902011-3-MAXO	$0.11
12	Maxon 900709-08 - Screw PH Pan HD 4-40 X .5 SS	900709-08-MAXO	$0.12
13	Maxon 901007 - Nut Nylon .112-40 Zinc	901007-MAXO	$0.11

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

LOCATE YOUR SERIAL PLATE on your Liftgate.
LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
