| ID | Image | Title | SKU | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|
| 1 |  | Maxon 269372-01 - F/S Tube Assembly .50 Power Up | 269372-01-MAXO | $33.74 | ||
| 2 | | Maxon 253513 - Flow Divider | 253513-MAXO | $651.51 | ||
| 3 | | Maxon 906704-01 - Elbow - NPSC - SEA #8 F/S O-R M-M | 906704-01-MAXO | $34.83 | ||
| 4 | | Maxon 260120 - Elbow 90DEG JIC#8M-JIC#8F | 260120-MAXO | $22.38 | ||
| 5 | | Maxon 261461 - Union BLKHD SAE37DEG Flare TW | 261461-MAXO | $25.67 | ||
| 6 | | Maxon 261462 - Nut BLKHD SAE37DEG Flare Twin | 261462-MAXO | $5.37 | ||
| 7 | | Maxon 902013-16 - Washer Flat 3/4 Inch SAE ZC | 902013-16-MAXO | $0.62 | ||
| 8 | | Maxon 905027 - Elbow SW Nut #4 SAE 37D M-F | 905027-MAXO | $6.00 | ||
| 9 | | Maxon 905085 - Nut Bulkhead JIC #4 | 905085-MAXO | $2.13 | ||
| 10 | | Maxon 902000-14 - Flat Washer .500 X .063 THK | 902000-14-MAXO | $0.98 | ||
| 11 | | Maxon 905096 - ST Union Fitting Bulkhead M JIC#4 | 905096-MAXO | $39.57 | ||
| 12 | | Maxon 269371-01 - F/S Tube Assembly .25 Power Close | 269371-01-MAXO | $34.77 | ||
| 13 | | Maxon 905179 - Connector F/S #4 O-Ring #6 M-M | 905179-MAXO | $14.10 | ||
| 14 | | Maxon 905158 - Elbow Straight F/S#-O-R #6 | 905158-MAXO | $69.20 |
BMR-A-CS Diagrams, BMRA (Sep 2013 - Dec 2015) Diagrams

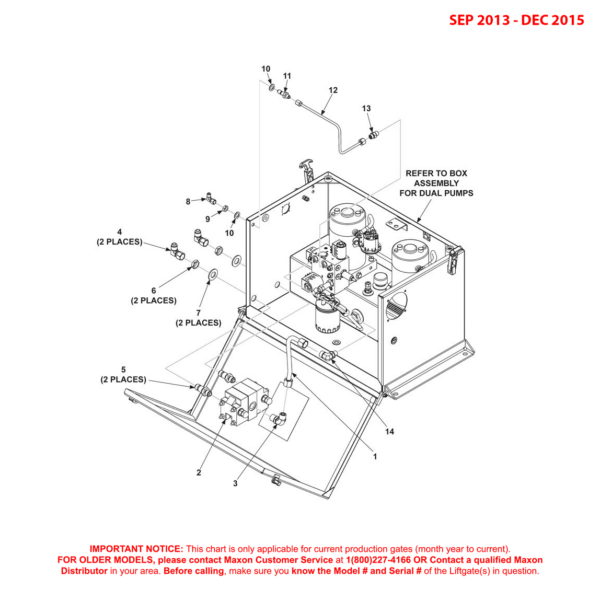

Maxon BMRA (Sep 2013 – Dec 2015) Gravity Down Dual Pump Assembly Diagram (1 OF 2)
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:
- LOCATE YOUR SERIAL PLATE on your Liftgate.
- LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
- IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
- IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
