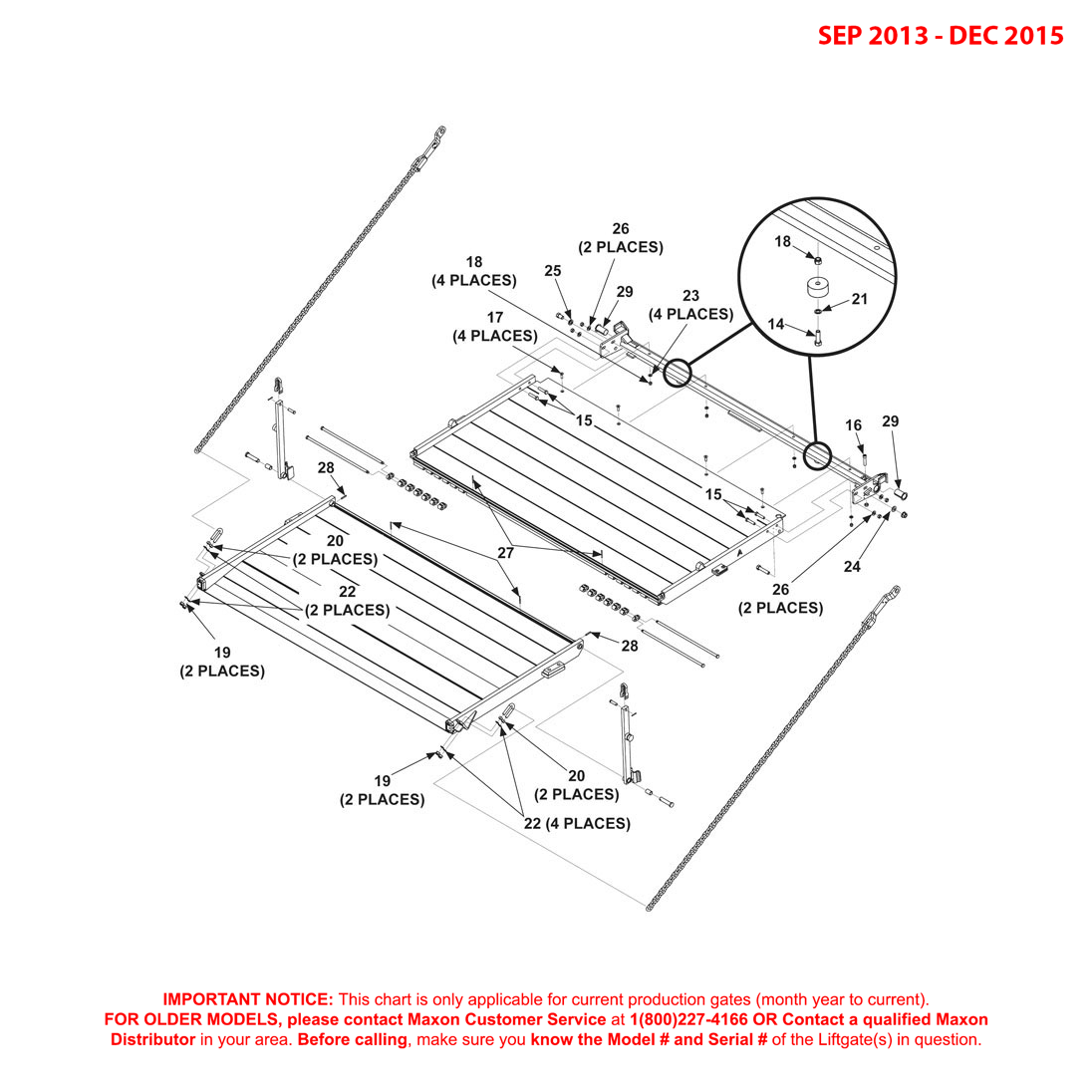

Maxon BMRA (Sep 2013 - Dec 2015) Aluminum Platform Flipover And Chain Assembly Diagram - 2B

Maxon BMRA (Sep 2013 – Dec 2015) Aluminum Platform Flipover And Chain Assembly Diagram – 2B

SKU: BMRA-SEP13-DEC15-ALPFFOCA-DG2B Category:
ID Image Title SKU Price Quantity Add to Cart
14Maxon 900014-5 - Screw Hex Cap - .38-16 X 1.25 G8 ZCMaxon 900014-5 - Screw Hex Cap - .38-16 X 1.25 G8 ZC900014-5-MAXO$0.72
15Maxon 900035-6 - Screw Cap HXHD .5-13UNC-2A 2.25Maxon 900035-6 - Screw Cap HXHD .5-13UNC-2A 2.25900035-6-MAXO$1.61
16Maxon 900036-10 - Screw SOC 1/2-13 X 2-1/4 Inch GR8 ZCMaxon 900036-10 - Screw SOC 1/2-13 X 2-1/4 Inch GR8 ZC900036-10-MAXO$2.37
17Maxon 900040-5 - Screw FLHD SOC 3/8-16 X 1-1/4ZCMaxon 900040-5 - Screw FLHD SOC 3/8-16 X 1-1/4ZC900040-5-MAXO$1.47
18Maxon 901002 - Nut Nylon 3/8-16 ZincMaxon 901002 - Nut Nylon 3/8-16 Zinc901002-MAXO$0.36
19Maxon 901010 - Nylon Lock Nut 1/2-13 ZCMaxon 901010 - Nylon Lock Nut 1/2-13 ZC901010-MAXO$0.54
20Maxon 901011-9 - Nut Hex Head .500-13 UNC-2BMaxon 901011-9 - Nut Hex Head .500-13 UNC-2B901011-9-MAXO$0.38
21Maxon 902000-10 - Washer Flat .375 X .063 THKMaxon 902000-10 - Washer Flat .375 X .063 THK902000-10-MAXO$0.36
22Maxon 902000-14 - Flat Washer .500 X .063 THKMaxon 902000-14 - Flat Washer .500 X .063 THK902000-14-MAXO$0.98
23Maxon 902001-2 - Flat Washer 3/8 X 1/16 Inch ZCMaxon 902001-2 - Flat Washer 3/8 X 1/16 Inch ZC902001-2-MAXO$0.18
24Maxon 902013-15 - Flat Washer 5/8 Inch ZCMaxon 902013-15 - Flat Washer 5/8 Inch ZC902013-15-MAXO$0.44
25Maxon 902011-9 - Washer Lock .750 .188 THKMaxon 902011-9 - Washer Lock .750 .188 THK902011-9-MAXO$0.50
26Maxon 902013-13 - Washer Flat 1/2 Inch SAE ZCMaxon 902013-13 - Washer Flat 1/2 Inch SAE ZC902013-13-MAXO$0.57
27Maxon 904719-17 - Pin Roll .188 X 2 Inch LG SSMaxon 904719-17 - Pin Roll .188 X 2 Inch LG SS904719-17-MAXO$0.69
28Maxon 905033-1 - Roll Pin .250 O.D. X 1.50 Inch LGMaxon 905033-1 - Roll Pin .250 O.D. X 1.50 Inch LG905033-1-MAXO$0.32
29Maxon 905200 - Bearing Self-Lube 1.25ID X 2.5LGMaxon 905200 - Bearing Self-Lube 1.25ID X 2.5LG905200-MAXO$49.58

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
