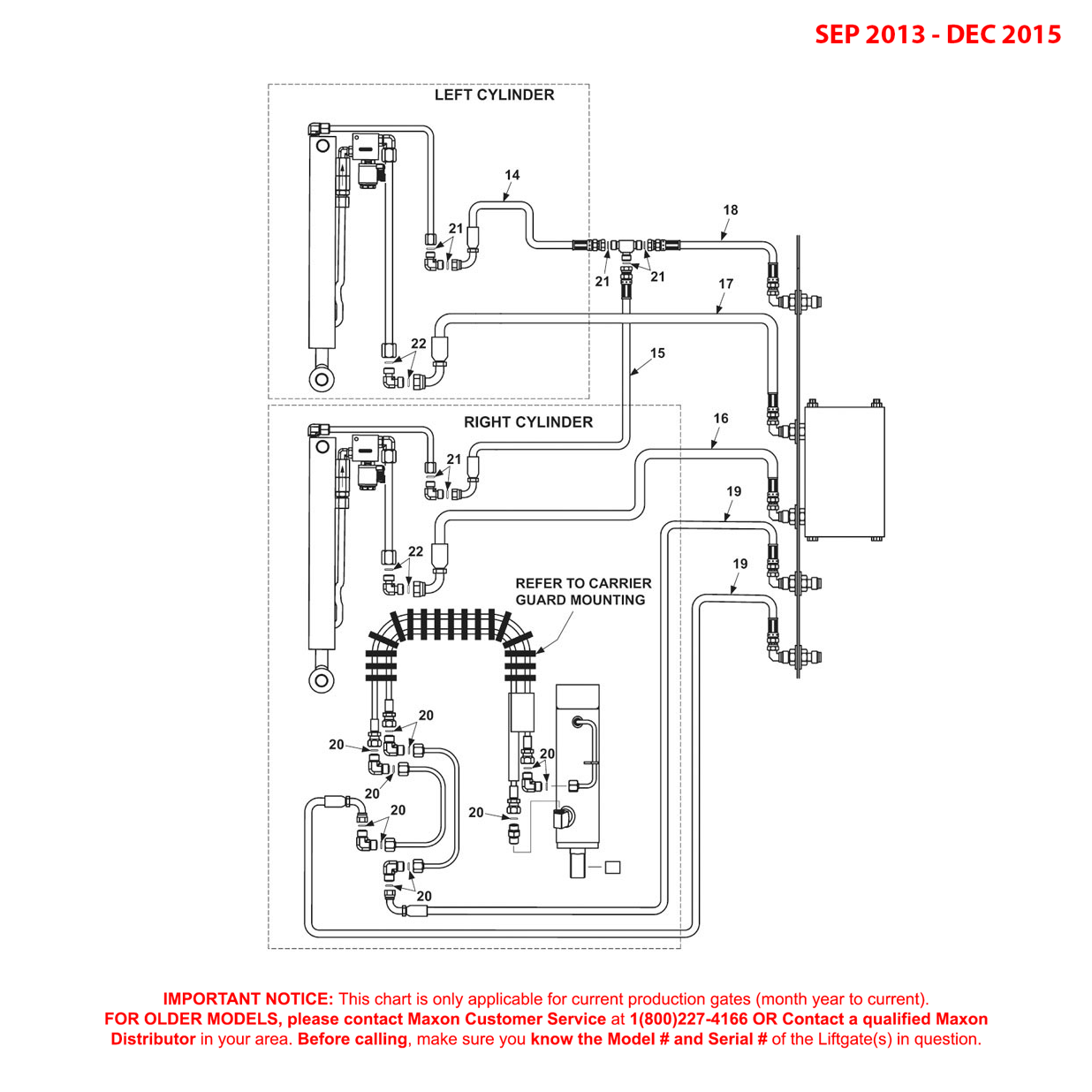

Maxon BMRSD (Sep 2013 - Dec 2015) Hydraulic Components Diagram (2 OF 2)

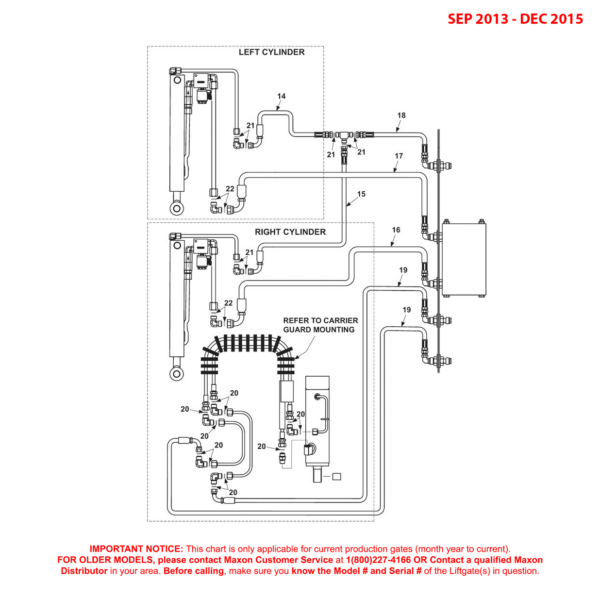

Maxon BMRSD (Sep 2013 – Dec 2015) Hydraulic Components Diagram (2 OF 2)

SKU: BMRSD-SEP13-DEC15-HYDC-DG2 Category:
ID Image Title SKU Price Quantity Add to Cart
14Maxon 264294-02 - Hose/A HP .25 F/S NO.6 90 Degrees F-F/S NO.6 F 100 INMaxon 264294-02 - Hose/A HP .25 F/S NO.6 90 Degrees F-F/S NO.6 F 100 IN264294-02-MAXO$69.45
15Maxon 264294-03 - Hose/A HP .25 F/S NO. 6 90 Degrees F-F/S NO. 6 F 24 INMaxon 264294-03 - Hose/A HP .25 F/S NO. 6 90 Degrees F-F/S NO. 6 F 24 IN264294-03-MAXO$29.07
16Maxon 280223-01 - H/A HP .38 F/S#8 90 F-JIC#8F 80 InchMaxon 280223-01 - H/A HP .38 F/S#8 90 F-JIC#8F 80 Inch280223-01-MAXO$58.91
16Maxon 280223-03 - H/A HP .38F/S#8 90 F-JIC#8F 196 InchMaxon 280223-03 - H/A HP .38F/S#8 90 F-JIC#8F 196 Inch280223-03-MAXO$204.83
16Maxon 280223-05 - H/A HP .38F/S#8 90 F-JIC#8F 316 InchMaxon 280223-05 - H/A HP .38F/S#8 90 F-JIC#8F 316 Inch280223-05-MAXO$292.68
16Maxon 280223-09 - H/A HP .38F/S#8 90F-JIC#8F 412 InchMaxon 280223-09 - H/A HP .38F/S#8 90F-JIC#8F 412 Inch280223-09-MAXO$258.23
16Maxon 280223-13 - H/A HP .38 F/S#8 90F-JIC#8F 256 InchMaxon 280223-13 - H/A HP .38 F/S#8 90F-JIC#8F 256 Inch280223-13-MAXO$123.41
17Maxon 280223-02 - H/A HP .38 F/S#8 90 F-JIC#8F 158 InchMaxon 280223-02 - H/A HP .38 F/S#8 90 F-JIC#8F 158 Inch280223-02-MAXO$88.10
17Maxon 280223-04 - H/A HP .38F/S#8 90 F-JIC#8F 274 InchMaxon 280223-04 - H/A HP .38F/S#8 90 F-JIC#8F 274 Inch280223-04-MAXO$280.01
17Maxon 280223-06 - H/A HP.38F/S#8 90 F-JIC#8F 394 InchMaxon 280223-06 - H/A HP.38F/S#8 90 F-JIC#8F 394 Inch280223-06-MAXO$356.21
17Maxon 280223-10 - H/A HP .38F/S#8 90F-JIC#8F 490 InchMaxon 280223-10 - H/A HP .38F/S#8 90F-JIC#8F 490 Inch280223-10-MAXO$297.47
17Maxon 280223-14 - H/A HP .38 F/S#8 90F-JIC#8F 334 InchMaxon 280223-14 - H/A HP .38 F/S#8 90F-JIC#8F 334 Inch280223-14-MAXO$194.79
18Maxon 280229-01 - H/A HP .25 F/S#6F-JIC #6F 50 InchMaxon 280229-01 - H/A HP .25 F/S#6F-JIC #6F 50 Inch280229-01-MAXO$50.64
18Maxon 280229-02 - H/A HP .25 F/S#6F-JIC #6F 166 InchMaxon 280229-02 - H/A HP .25 F/S#6F-JIC #6F 166 Inch280229-02-MAXO$120.47
18Maxon 280229-03 - H/A HP .25 F/S#6F-JIC #6F 286 InchMaxon 280229-03 - H/A HP .25 F/S#6F-JIC #6F 286 Inch280229-03-MAXO$222.18
18Maxon 280229-04 - H/A HP .25 F/S#6F-JIC#6F 382 InchMaxon 280229-04 - H/A HP .25 F/S#6F-JIC#6F 382 Inch280229-04-MAXO$212.87
18Maxon 280229-06 - H/A HP .25 F/S#6F-JIC#6F 226 InchMaxon 280229-06 - H/A HP .25 F/S#6F-JIC#6F 226 Inch280229-06-MAXO$108.24
19Maxon 280232-01 - H/A HP .25 F/S NO 4 90 Degrees F-JIC NO 4 F 72 InchMaxon 280232-01 - H/A HP .25 F/S NO 4 90 Degrees F-JIC NO 4 F 72 Inch280232-01-MAXO$56.28
19Maxon 280232-02 - H/A HP .25 F/S NO 4 90 Degrees F-JIC NO 4 F 188 InchMaxon 280232-02 - H/A HP .25 F/S NO 4 90 Degrees F-JIC NO 4 F 188 Inch280232-02-MAXO$185.66
19Maxon 280232-03 - H/A HP .25 F/S NO 4 90 Degrees F-JIC NO 4 F 308 InchMaxon 280232-03 - H/A HP .25 F/S NO 4 90 Degrees F-JIC NO 4 F 308 Inch280232-03-MAXO$248.64
19Maxon 280232-05 - H/A HP .25 F/S NO. 4 90 Degrees F-JIC NO. 4 F 404 InchMaxon 280232-05 - H/A HP .25 F/S NO. 4 90 Degrees F-JIC NO. 4 F 404 Inch280232-05-MAXO$186.90
19Maxon 280232-09 - H/A HP .25 F/S NO.4 90 Degrees F-JIC NO.4 F 248 InchMaxon 280232-09 - H/A HP .25 F/S NO.4 90 Degrees F-JIC NO.4 F 248 Inch280232-09-MAXO$93.68
20Maxon 906712-01 - Tube End O-Ring #4 1/4 ORFSMaxon 906712-01 - Tube End O-Ring #4 1/4 ORFS906712-01-MAXO$1.30
21Maxon 906712-02 - Tube End O-Ring #6 3/8 ORFSMaxon 906712-02 - Tube End O-Ring #6 3/8 ORFS906712-02-MAXO$1.30
22Maxon 906712-03 - Tube End O-Ring #8 1/2 ORFSMaxon 906712-03 - Tube End O-Ring #8 1/2 ORFS906712-03-MAXO$1.39

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
