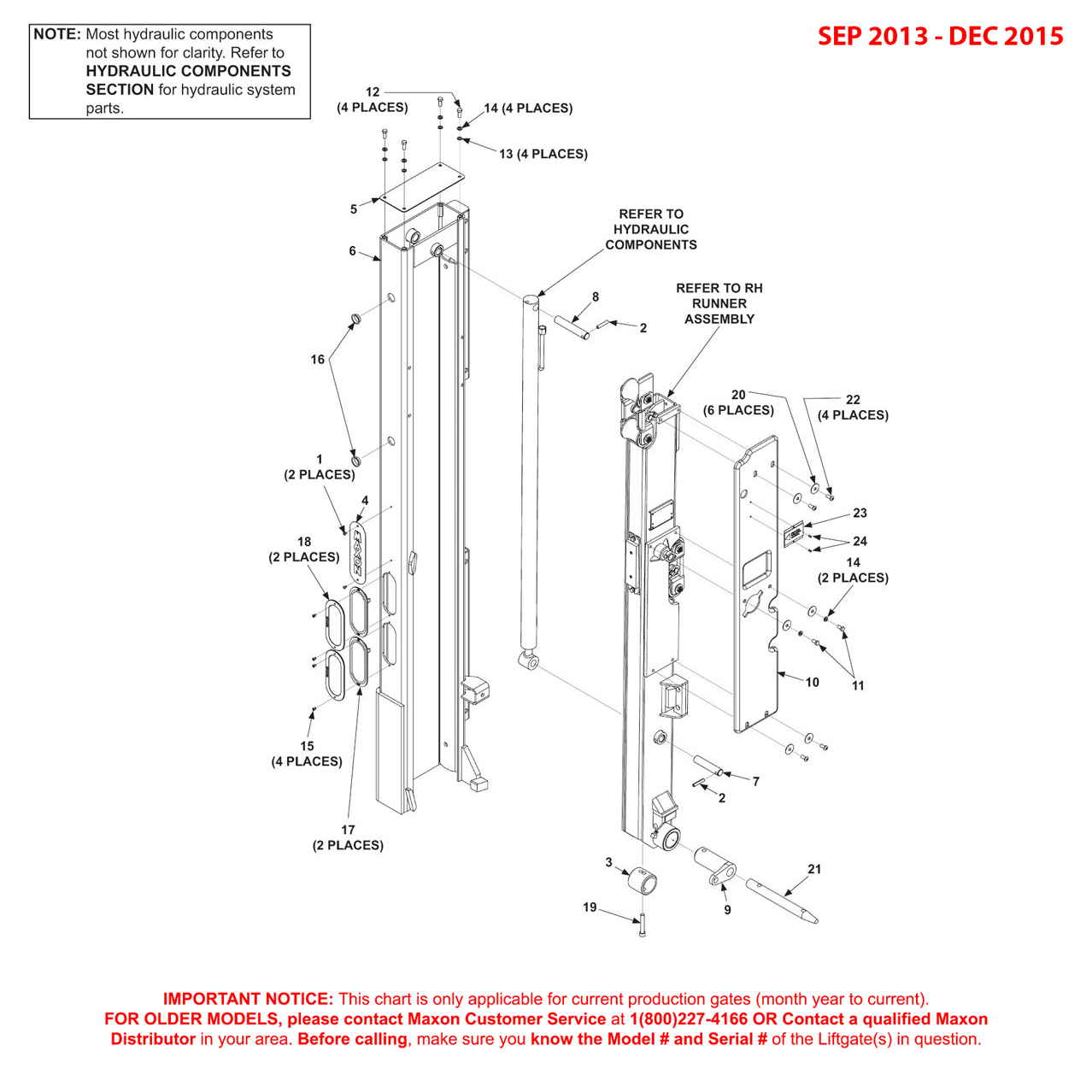

Maxon BMRSD (Sep 2013 - Dec 2015) Left Hand Column Assembly Diagram
Maxon Bmrsd (sep 2013 – Dec 2015) Left Hand Column Assembly Diagram

Maxon BMRSD (Sep 2013 – Dec 2015) Left Hand Column Assembly Diagram

SKU: BMRSD-SEP13-DEC15-LHCA-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 207644 - Rivet BLND 0.19 X.58 DomeMaxon 207644 - Rivet BLND 0.19 X.58 Dome207644-MAXO$0.32
2Maxon 904717-06 - ZN Roll Pin - 0.38 x 2 InchesMaxon 904717-06 - ZN Roll Pin - 0.38 x 2 Inches904717-06-MAXO$0.60
3Maxon 253696 - Pin Collar 2.31 ID X 2.75 LGMaxon 253696 - Pin Collar 2.31 ID X 2.75 LG253696-MAXO$75.54
4Maxon 260478 - Maxon VERT Plate 3 X 10.125 X .031 InchMaxon 260478 - Maxon VERT Plate 3 X 10.125 X .031 Inch260478-MAXO$23.52
5Maxon 263114 - Cover BMR ColumnMaxon 263114 - Cover BMR Column263114-MAXO$18.02
5Maxon 281761-01 - Cover Column Zinc PL BMRAMaxon 281761-01 - Cover Column Zinc PL BMRA281761-01-MAXO$17.60
6Maxon 268064-01 - Column Weldment LHMaxon 268064-01 - Column Weldment LH268064-01-MAXO$3,005.93
6Maxon 268064-02 - Column Weldment LH GALVMaxon 268064-02 - Column Weldment LH GALV268064-02-MAXO$2,924.03
7Maxon 268068-01 - Pin SST 1 X 4.75 Inch LGMaxon 268068-01 - Pin SST 1 X 4.75 Inch LG268068-01-MAXO$42.56
8Maxon 268068-02 - Pin SST 1 X 5.88 Inch LGMaxon 268068-02 - Pin SST 1 X 5.88 Inch LG268068-02-MAXO$50.49
9Maxon 280623-01 - Coupling LH BMRsMaxon 280623-01 - Coupling LH BMRs280623-01-MAXO$306.56
10Maxon 269312-01 - Cover BMRA COL LHMaxon 269312-01 - Cover BMRA COL LH269312-01-MAXO$124.20
11Maxon 900014-3 - Screw Hex Head .38-16 X .75 Inch G8 ZCMaxon 900014-3 - Screw Hex Head .38-16 X .75 Inch G8 ZC900014-3-MAXO$0.54
12Maxon 900014-4 - Hex Cap Screw - .38-16 X 1 G8 ZCMaxon 900014-4 - Hex Cap Screw - .38-16 X 1 G8 ZC900014-4-MAXO$0.71
13Maxon 902000-10 - Washer Flat .375 X .063 THKMaxon 902000-10 - Washer Flat .375 X .063 THK902000-10-MAXO$0.36
14Maxon 902011-4 - Washer Lock 3/8 X .094 ZCMaxon 902011-4 - Washer Lock 3/8 X .094 ZC902011-4-MAXO$0.15
15Maxon 904005-2 - Rivet - Blind Stainless Steel Dome - .187X.565Maxon 904005-2 - Rivet - Blind Stainless Steel Dome - .187X.565904005-2-MAXO$0.72
16Maxon 260403 - Plug PolyetyleneMaxon 260403 - Plug Polyetylene260403-MAXO$0.36
17Maxon 285135-01 - LED LT FLG MTG Oval Truck-LITEMaxon 285135-01 - LED LT FLG MTG Oval Truck-LITE285135-01-MAXO$52.47
18Maxon 285135-02 - Flange SST Oval LT Truck-LITEMaxon 285135-02 - Flange SST Oval LT Truck-LITE285135-02-MAXO$9.68
19Maxon 900037-11 - Screw SOCHD 1/2-20 X 3 GR8 ZCMaxon 900037-11 - Screw SOCHD 1/2-20 X 3 GR8 ZC900037-11-MAXO$2.90
20Maxon 902008 - Washer Fender 1.5 X 13/32 X 1/16SSMaxon 902008 - Washer Fender 1.5 X 13/32 X 1/16SS902008-MAXO$0.78
21Maxon 280103 - Pin X 13 Inch Stainless SteelMaxon 280103 - Pin X 13 Inch Stainless Steel280103-MAXO$201.12
22Maxon 900064-04 - Screw BTN SCT Cap .375-16 X .875 InchMaxon 900064-04 - Screw BTN SCT Cap .375-16 X .875 Inch900064-04-MAXO$0.65

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
