| ID | Image | Title | SKU | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|
| 0 |  | Maxon 284888-417 - F/O Assembly BMRAW44 ST86X30+12FX | 284888-417-MAXO | $4,104.75 | ||
| 0 | | Maxon 284888-617 - F/O Assembly BMRAW66 ST86X30+12FX | 284888-617-MAXO | $3,052.73 | ||
| 1 | | Maxon 225278-02 - Rubber Bumper 3/4 x 1.5 x 5 - 2 Hole | 225278-02-MAXO | $24.86 | ||
| 2 | | Maxon 902013-10 - Washer Flat 5/16 Inch SAE ZC | 902013-10-MAXO | $0.18 | ||
| 3 | | Maxon 900001-4 - Screw BUT 5/16-18 X 1-1/4 Inch Alloy | 900001-4-MAXO | $1.97 | ||
| 4 | | Maxon 901001 - Nut - Nylon - 5/16-18 Zinc | 901001-MAXO | $0.18 | ||
| 5 | | Maxon 901000 - Nylon Nut 1/4-20 Inch Zinc | 901000-MAXO | $0.15 | ||
| 7 | | Maxon 900719-08 - Button Screw .25-20 X 1.25 Inch SS | 900719-08-MAXO | $0.51 |
BMRSD (Sep 2013 - Dec 2015) Diagrams

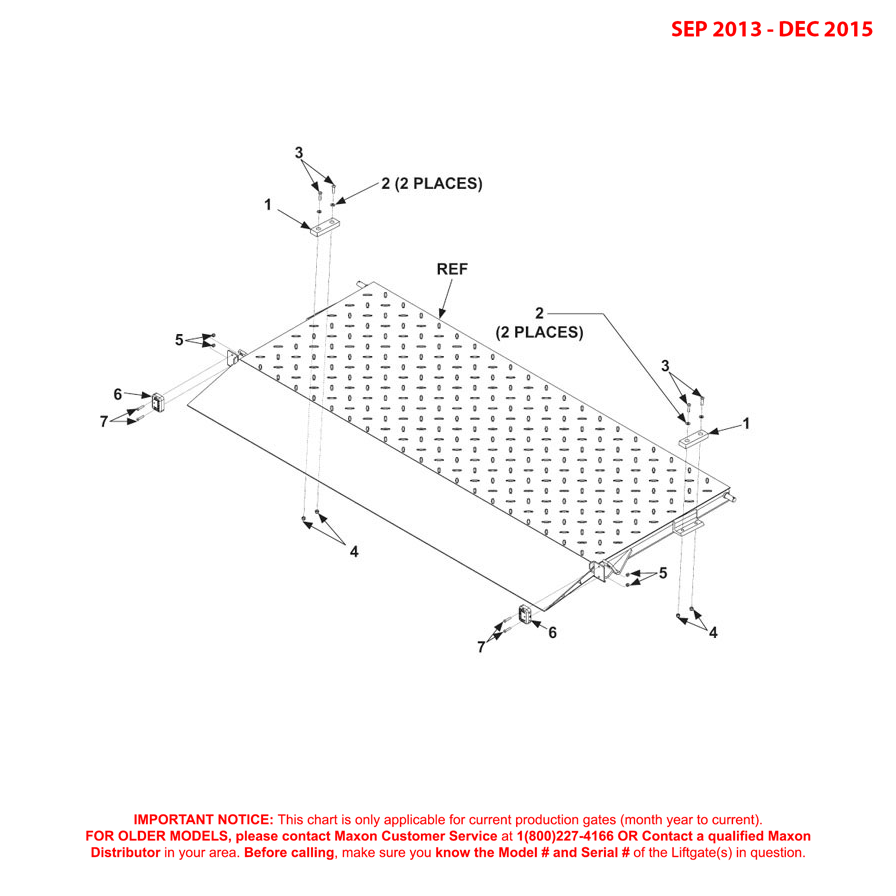

Maxon BMRSD (Sep 2013 – Dec 2015) Steel Flipover With Fixed Ramp Diagram
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:
- LOCATE YOUR SERIAL PLATE on your Liftgate.
- LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
- IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
- IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!
DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
