| ID | Image | Title | SKU | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|
| 2 |  | Maxon 297018-01 - Inner Switch Assembly U/D | 297018-01-MAXO | $111.09 | ||
| 3 | | Maxon 297018-02 - Outer Switch Assembly U/D | 297018-02-MAXO | $106.62 | ||
| 4 | | Maxon 207644 - Rivet BLND 0.19 X.58 Dome | 207644-MAXO | $0.32 | ||
| 5 | | Maxon 907279-01 - Junction Block - Two Stud | 907279-01-MAXO | $24.69 | ||
| 6 | | Maxon 903412-01 - Flat Washer .25 SS | 903412-01-MAXO | $0.20 | ||
| 7 | | Maxon 903132-01 - Nut Nylon Insert THN .25-20 SS | 903132-01-MAXO | $0.24 | ||
| 11 | | Maxon 903107-06 - Hex Nut 10-24 UNC SS | 903107-06-MAXO | $0.11 | ||
| 12 | | Maxon 297269-01 - Digital Cycle Counter | 297269-01-MAXO | $103.50 | ||
| 13 | | Maxon 903721-02 - Rivet BL/DM SS .16 X .13-.19 Inch | 903721-02-MAXO | $0.24 | ||
| 14 | | Maxon 298684-01 - Cycle Counter Harness | 298684-01-MAXO | $14.87 |
DMD (Aug 2018 - Present) Diagrams

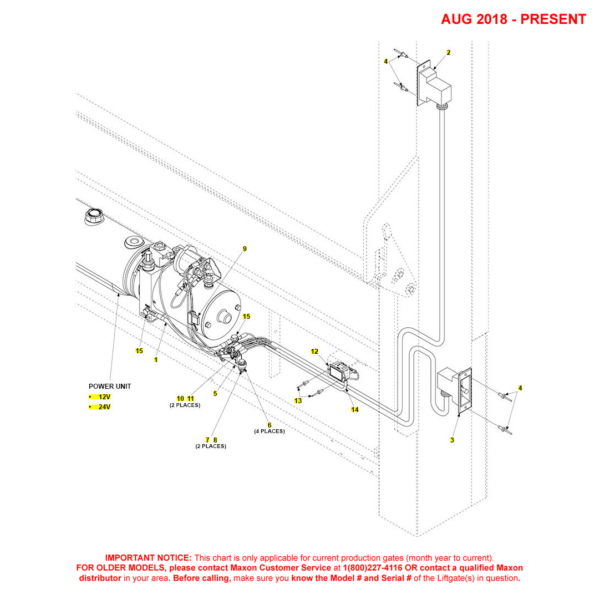

Maxon DMD (Aug 2018 – Present) Electrical Systems With Manual Closer Diagram
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:
- LOCATE YOUR SERIAL PLATE on your Liftgate.
- LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
- IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
- IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!
DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
