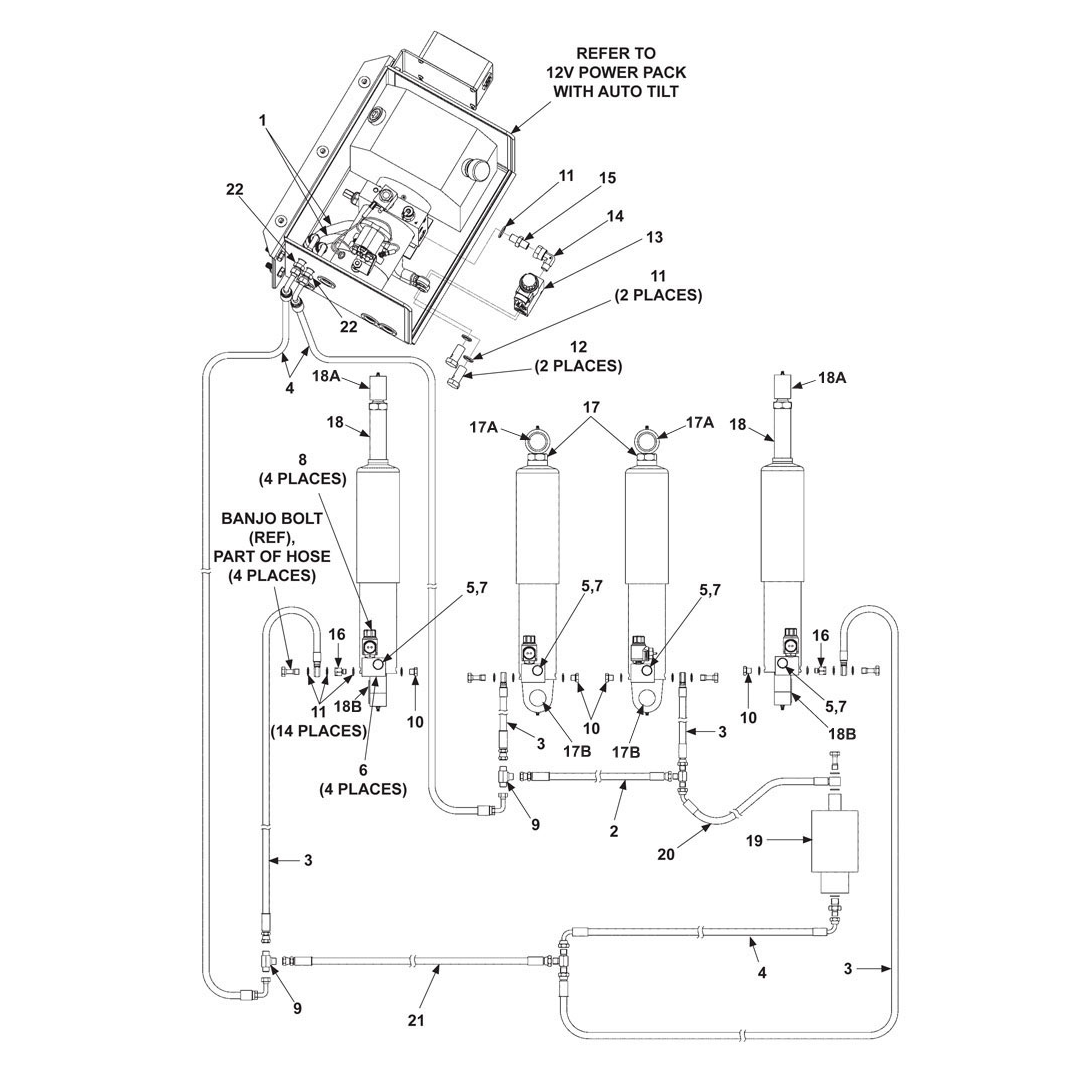

Maxon GPC (Oct 2012 - Nov 2018) Pump Assembly Diagram (2 OF 2) From ITEParts.com

ID	Title	SKU	Price
1	Maxon 3-099397 - Hose Assembly Lift-RAM	3-099397-MAXO	$31.86
2	Maxon 4-102217 - Flexible Hydraulic Hose	4-102217-MAXO	$43.28
3	Maxon 4-101573 - 3/8 Flexible Hose 25.6 Inch LG	4-101573-MAXO	$36.27
4	Maxon 4-101571-01 - P/P Flex Hose 3/8 X 27.6 Inch LG	4-101571-01-MAXO	$43.92
5	Maxon 5-02008 - 3/8 Inch BSP DOWTY Type Bonded Washer Seal	5-02008-MAXO	$6.18
6	Maxon 5-12036 - DVL Manifold Block 1/4BSP Port	5-12036-MAXO	$243.24
7	Maxon 5-12037 - 3/8 Inch BSP BAJO Bolt Special LG	5-12037-MAXO	$5.70
8	Maxon 5-30036 - 12V Logic Valve	5-30036-MAXO	$195.32
10	Maxon HH13580 - 1/4 Inch BSPP Blanking Plug	HH13580-MAXO	$6.17
11	Maxon 5-02007 - 1/4 Inch BSP DOWTY Bonded Washer S	5-02007-MAXO	$5.57
12	Maxon 268672-02 - Hose Assembly .38 #6-BANJO 64 Inch LG	268672-02-MAXO	$75.62
13	Maxon 5-12063 - 12 V Change Over Valve	5-12063-MAXO	$795.35
16	Maxon HH13287 - BANJO Spacer	HH13287-MAXO	$32.91
17	Maxon 283851-01 - Lift Ram 19.17 Inch Retracted	283851-01-MAXO	$1,947.08
18	Maxon 290129 - Spherical Bearing	290129-MAXO	$54.98
18	Maxon 290131 - Bearing - Plain	290131-MAXO	$74.37
18	Maxon 3-104005-01 - Tilt Cylinder 750 HD With Cover	3-104005-01-MAXO	$1,813.50
18	Maxon 3-104006-01 - Tilt Cylinder 850 HD With Cover	3-104006-01-MAXO	$1,760.85
18	Maxon 3-104007-01 - Tilt Cylinder 1000 HD With Cove	3-104007-01-MAXO	$1,891.50
19	Maxon 3-95150 - Intensifier	3-95150-MAXO	$1,810.58
20	Maxon 4-102241 - Flexible Hydraulic Hose	4-102241-MAXO	$68.42
21	Maxon 4-102240 - Flexible Hydraulic Hose 53 Inch LG	4-102240-MAXO	$46.46
