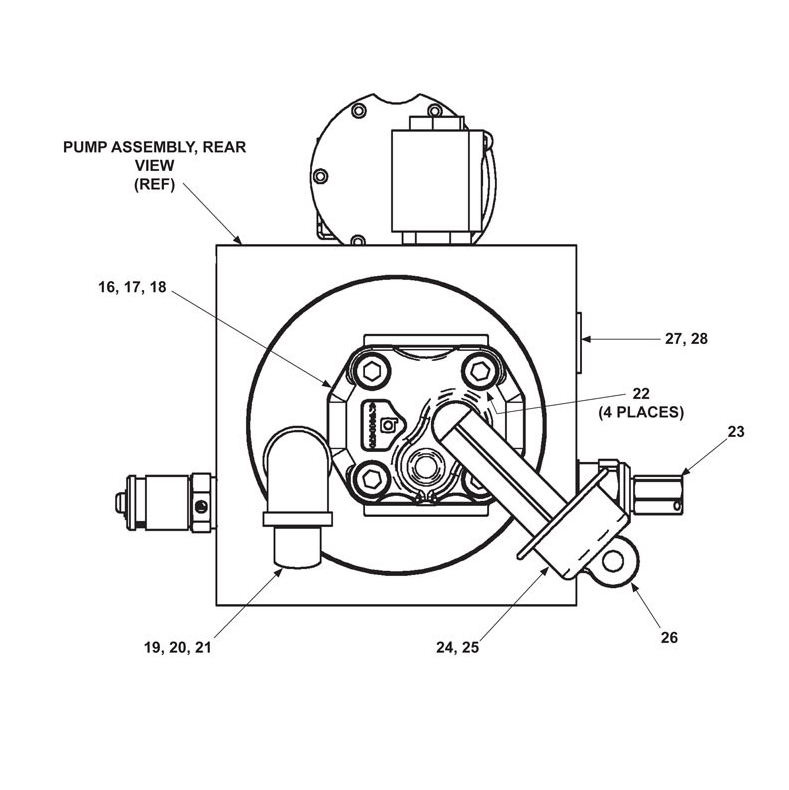

Maxon GPC (Oct 2012 - Nov 2018) Pump Assembly Diagram (2 OF 2)
Maxon Gpc (oct 2012 – Nov 2018) Pump Assembly Diagram (2 Of 2)

Maxon GPC (Oct 2012 – Nov 2018) Pump Assembly Diagram (2 OF 2)

SKU: GPC-OCT12-NOV18-PA-DG2 Category:
ID Image Title SKU Price Quantity Add to Cart
16Maxon 269405 - Pump AP100 2.5 PBP No Cover CWMaxon 269405 - Pump AP100 2.5 PBP No Cover CW269405-MAXO$509.55
17Maxon 269324 - O-Ring Shaped - UP100 and UP110Maxon 269324 - O-Ring Shaped - UP100 and UP110269324-MAXO$8.43
18Maxon 269326 - O-Ring Shaped Rear Cover AP100Maxon 269326 - O-Ring Shaped Rear Cover AP100269326-MAXO$8.43
21Maxon 269350 - Tube Suction STR 3/8 NPT NylonMaxon 269350 - Tube Suction STR 3/8 NPT Nylon269350-MAXO$7.62
23Maxon 269338 - Valve MAX VM01 HDM10 T.95-210Maxon 269338 - Valve MAX VM01 HDM10 T.95-210269338-MAXO$128.39
25Maxon 269331 - Filter Screen M-Series SUCTMaxon 269331 - Filter Screen M-Series SUCT269331-MAXO$7.82
27Maxon 269416 - Plug SAE O-Ring 3/4-16 Hex SOCMaxon 269416 - Plug SAE O-Ring 3/4-16 Hex SOC269416-MAXO$14.03
28Maxon 269413 - Poppet Assembly PCMP FL GPM2.00Maxon 269413 - Poppet Assembly PCMP FL GPM2.00269413-MAXO$33.47

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
