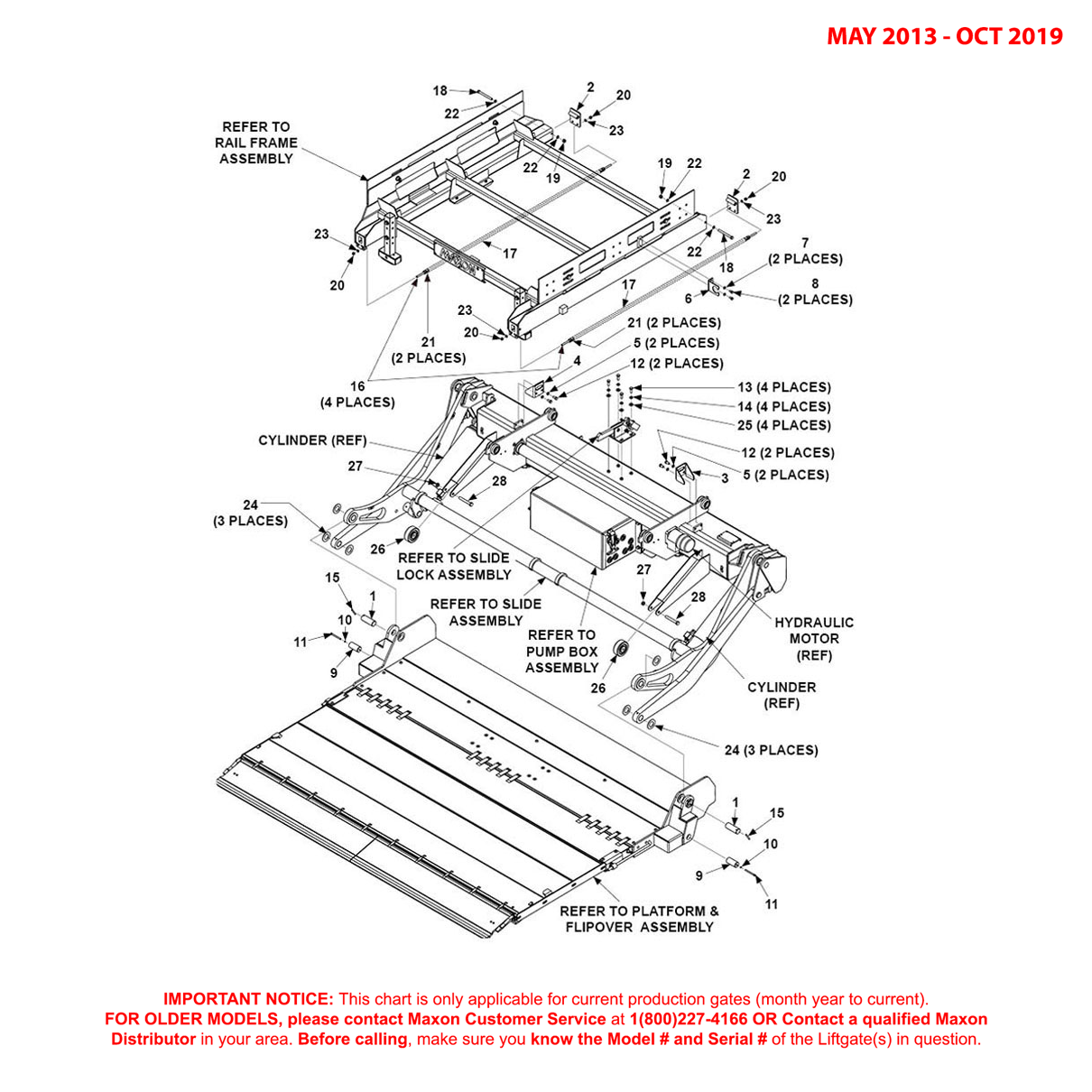

Maxon GPSLR (May 2013 - Oct 2019) Main Assembly With Smart Stow Diagram
Maxon Gpslr (may 2013 – Oct 2019) Main Assembly With Smart Stow Diagram

Maxon GPSLR (May 2013 – Oct 2019) Main Assembly With Smart Stow Diagram

SKU: GPSLR-MAY13-OCT19-MAWSS-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon RSM0052 - SL15 Drilled Pin 3.39 Inch LGMaxon RSM0052 - SL15 Drilled Pin 3.39 Inch LGRSM0052-MAXO$27.93
2Maxon RSM0110 - SL15 SL FR Cap WeldmentMaxon RSM0110 - SL15 SL FR Cap WeldmentRSM0110-MAXO$49.71
5Maxon 903435-06 - Washer Nord-Lock .38/M10 ZCMaxon 903435-06 - Washer Nord-Lock .38/M10 ZC903435-06-MAXO$2.60
6Maxon 268514-01 - Bracket Conduit MountMaxon 268514-01 - Bracket Conduit Mount268514-01-MAXO$8.66
7Maxon 902011-3 - Lock Washer 5/16 X 5/64 Inch G8 ZCMaxon 902011-3 - Lock Washer 5/16 X 5/64 Inch G8 ZC902011-3-MAXO$0.11
8Maxon 900009-1 - Screw Cap 5/16-18 X 5/8 Inch GR8 ZCMaxon 900009-1 - Screw Cap 5/16-18 X 5/8 Inch GR8 ZC900009-1-MAXO$0.30
9Maxon RSM0051 - SL15 Tilt Arm Pin 2.68 Inch LGMaxon RSM0051 - SL15 Tilt Arm Pin 2.68 Inch LGRSM0051-MAXO$64.28
10Maxon 903440-01 - Washer Lock .25 SHCSMaxon 903440-01 - Washer Lock .25 SHCS903440-01-MAXO$0.24
11Maxon 900025-11 - Screw SOC.25-20 X 2.75 AlloyMaxon 900025-11 - Screw SOC.25-20 X 2.75 Alloy900025-11-MAXO$0.72
12Maxon 900000-3 - Bolt HX 1/4-20 X 3/4 GR8 ZCMaxon 900000-3 - Bolt HX 1/4-20 X 3/4 GR8 ZC900000-3-MAXO$0.20
13Maxon 900014-4 - Hex Cap Screw - .38-16 X 1 G8 ZCMaxon 900014-4 - Hex Cap Screw - .38-16 X 1 G8 ZC900014-4-MAXO$0.71
14Maxon 902011-4 - Washer Lock 3/8 X .094 ZCMaxon 902011-4 - Washer Lock 3/8 X .094 ZC902011-4-MAXO$0.15
15Maxon 905033-5 - 2.00 x .25 Inch OD Roll PinMaxon 905033-5 - 2.00 x .25 Inch OD Roll Pin905033-5-MAXO$0.41
16Maxon RSM0017 - SL15 Chain AdjusterMaxon RSM0017 - SL15 Chain AdjusterRSM0017-MAXO$47.21
17Maxon 268262-03 - Chain CRES ANSI #50 85 LinksMaxon 268262-03 - Chain CRES ANSI #50 85 Links268262-03-MAXO$392.66
18Maxon 900014-14 - Screw Hex Cap 0.38-16 X 4 Inch G8 ZCMaxon 900014-14 - Screw Hex Cap 0.38-16 X 4 Inch G8 ZC900014-14-MAXO$1.68
19Maxon 901002 - Nut Nylon 3/8-16 ZincMaxon 901002 - Nut Nylon 3/8-16 Zinc901002-MAXO$0.36
20Maxon 901001 - Nut - Nylon - 5/16-18 ZincMaxon 901001 - Nut - Nylon - 5/16-18 Zinc901001-MAXO$0.18
21Maxon 268263-01 - ANSI #50 Connecting LinkMaxon 268263-01 - ANSI #50 Connecting Link268263-01-MAXO$11.97
22Maxon 902000-10 - Washer Flat .375 X .063 THKMaxon 902000-10 - Washer Flat .375 X .063 THK902000-10-MAXO$0.36
23Maxon 902000-8 - Flat Washer - .312 .063 THKMaxon 902000-8 - Flat Washer - .312 .063 THK902000-8-MAXO$0.32
24Maxon 908078-02 - FB Thrust Bearing 1.25 IDMaxon 908078-02 - FB Thrust Bearing 1.25 ID908078-02-MAXO$10.70
25Maxon 902001-2 - Flat Washer 3/8 X 1/16 Inch ZCMaxon 902001-2 - Flat Washer 3/8 X 1/16 Inch ZC902001-2-MAXO$0.18
26Maxon 280082-01 - Roller Opener 3.5 X 1.25 X .5Maxon 280082-01 - Roller Opener 3.5 X 1.25 X .5280082-01-MAXO$23.28
27Maxon 901008 - Nut Nylon 1/2-20 ZCMaxon 901008 - Nut Nylon 1/2-20 ZC901008-MAXO$1.28
28Maxon 900033-10 - Screw Cap - 0.5-20 X 3.5 GR8 ZCMaxon 900033-10 - Screw Cap - 0.5-20 X 3.5 GR8 ZC900033-10-MAXO$3.23

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
