| ID | Image | Title | SKU | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|
| 1 |  | Maxon 287348-01 - Box Assembly Switch 12V | 287348-01-MAXO | $707.84 | ||
| 1 | | Maxon 287354-01 - Molded Switch Assembly OUT/IN | 287354-01-MAXO | $143.10 | ||
| 1 | | Maxon 287354-02 - Molded Switch Assembly Up/Down | 287354-02-MAXO | $144.26 | ||
| 2 | | Maxon 287353-01 - Cable Switch Assembly 12VDC | 287353-01-MAXO | $218.10 | ||
| 3 | | Maxon 267959-01 - Molded Switch Assembly | 267959-01-MAXO | $123.83 | ||
| 3 | | Maxon 268598-01 - Internal CONT Assembly GPSLR | 268598-01-MAXO | $146.96 | ||
| 3 | | Maxon 268599-01 - BRKT INT CONT GPSLR | 268599-01-MAXO | $12.99 | ||
| 3 | | Maxon 900007-6 - Screw PH Pan HD ZC 10-24 X .75 Inch | 900007-6-MAXO | $0.14 | ||
| 3 | | Maxon 901003 - Nut Nylon 10-24 2B ZC | 901003-MAXO | $0.11 | ||
| 4 | | Maxon 906559-01 - Fitting Straight Connector | 906559-01-MAXO | $38.79 | ||
| 5 | | Maxon 268274-01 - Cable Right Side 78 IN LG | 268274-01-MAXO | $37.41 | ||
| 6 | | Maxon 268274-02 - Cable Left Side 104 IN LG | 268274-02-MAXO | $46.04 | ||
| 7 | | Maxon 282583-01 - Wire Assembly Pump CONT | 282583-01-MAXO | $128.43 | ||
| 8 | | Maxon 906560-48 - Conduit Super Flex 48 LG | 906560-48-MAXO | $97.08 | ||
| 9 | | Maxon 268992-01 - Relay Assembly GPSLR | 268992-01-MAXO | $539.09 | ||
| 10 | | Maxon 205780 - Tie Plastic 7 Inch (50 LB) | 205780-MAXO | $0.30 |
GPSLR Diagrams

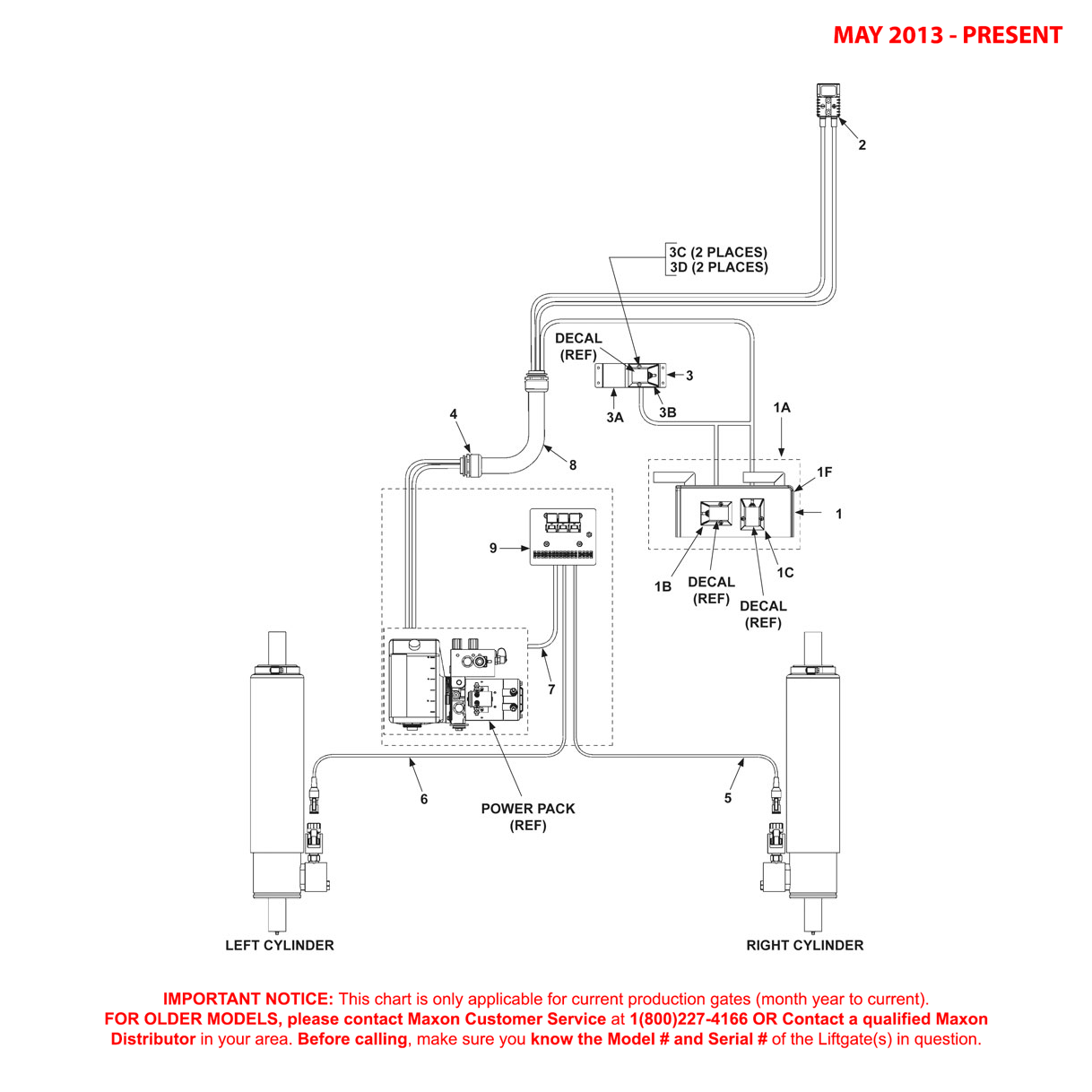

Maxon GPSLR (May 2013 – Present) Electrical Components Without Controller Diagram
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:
- LOCATE YOUR SERIAL PLATE on your Liftgate.
- LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
- IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
- IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!
DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
