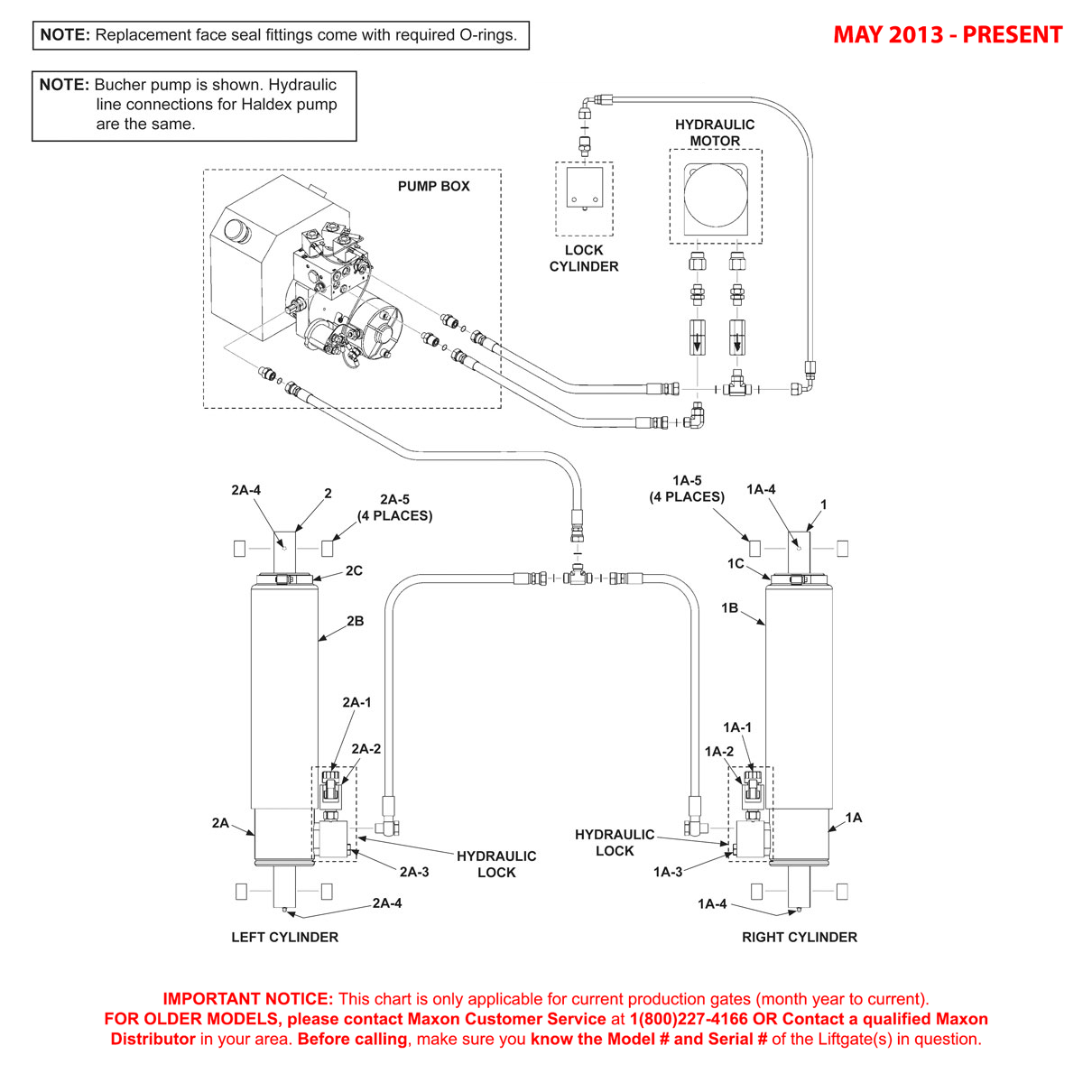

Maxon GPSLR (May 2013 - Present) Hydraulic Components Diagram (1 OF 2)
Maxon Gpslr (may 2013 – Present) Hydraulic Components Diagram (1 Of 2)

Maxon GPSLR (May 2013 – Present) Hydraulic Components Diagram (1 OF 2)

SKU: GPSLR-MAY13-PRES-HYDC-DG1 Category:
ID Image Title SKU Price Quantity Add to Cart
0Maxon 268280-01 - Fixed Orifice Press COMP FCMaxon 268280-01 - Fixed Orifice Press COMP FC268280-01-MAXO$392.06
0Maxon 906824-01 - Coil Immersion Proof 12 VDCMaxon 906824-01 - Coil Immersion Proof 12 VDC906824-01-MAXO$37.62
0Maxon 906831-01 - Logic Valve 12VMaxon 906831-01 - Logic Valve 12V906831-01-MAXO$185.00
0Maxon 908046-05 - S/LUBR Bearing 1.25 X 1.38 X .625 InchMaxon 908046-05 - S/LUBR Bearing 1.25 X 1.38 X .625 Inch908046-05-MAXO$141.03
1Maxon 268502-01 - Cylinder Slider HYDMaxon 268502-01 - Cylinder Slider HYD268502-01-MAXO$1,811.55
1Maxon 268552-01 - Cylinder Assembly RH Slider HYD 12VMaxon 268552-01 - Cylinder Assembly RH Slider HYD 12V268552-01-MAXO$2,888.93
2Maxon 268399-01 - Bellow Cylinder SliderMaxon 268399-01 - Bellow Cylinder Slider268399-01-MAXO$77.01
2Maxon 268552-02 - Cylinder Assembly LH Slider HYD 12VMaxon 268552-02 - Cylinder Assembly LH Slider HYD 12V268552-02-MAXO$2,797.28
2Maxon 908133-01 - Clamp WMGR 3.06-4.00 RangeMaxon 908133-01 - Clamp WMGR 3.06-4.00 Range908133-01-MAXO$5.42

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
