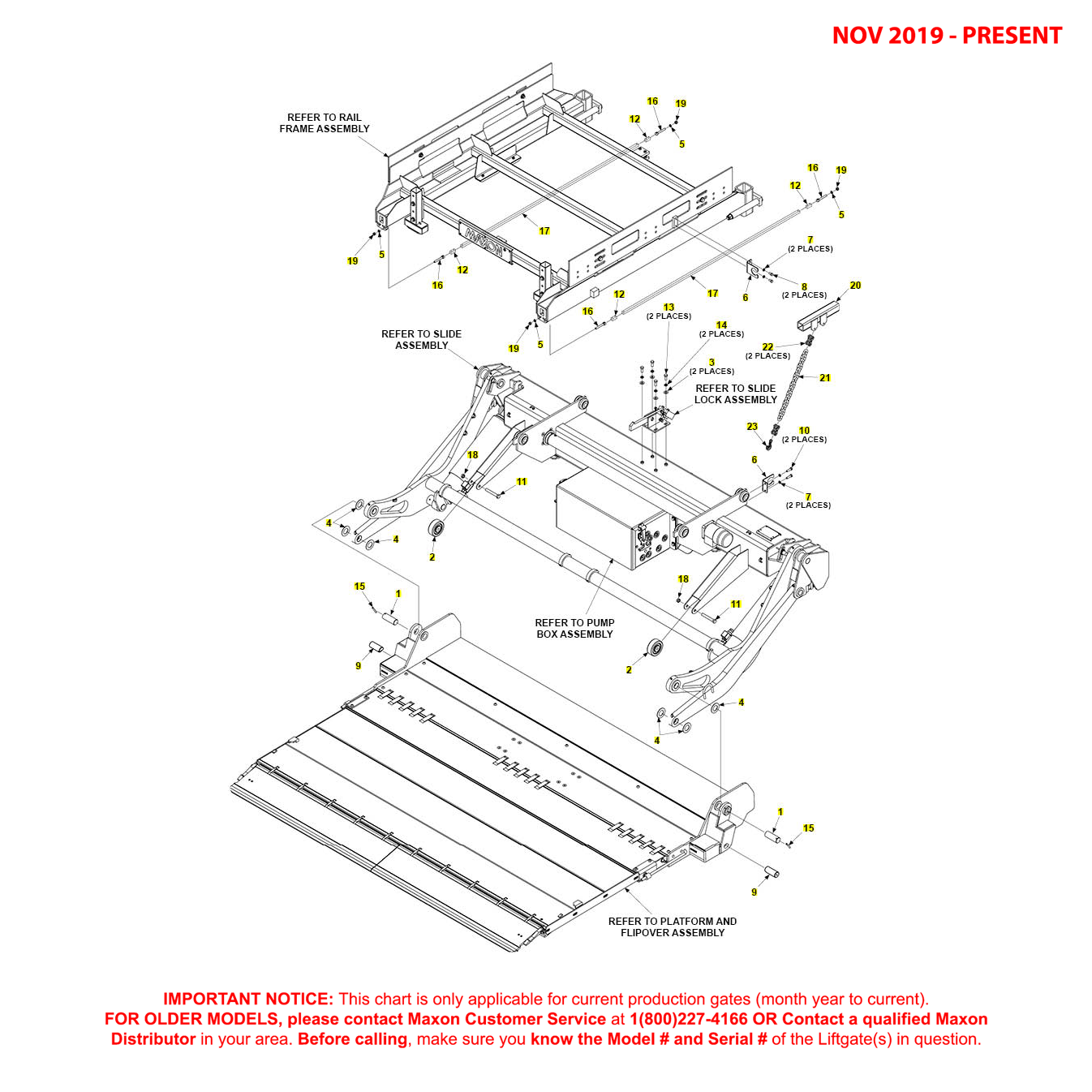

Maxon GPSLR (Nov 2019 - Present) Main Assembly With No Controller Diagram
Maxon Gpslr (nov 2019 – Present) Main Assembly With No Controller Diagram

Maxon GPSLR (Nov 2019 – Present) Main Assembly With No Controller Diagram

SKU: GPSLR-NOV19-PRES-MAWNC-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon RSM0052 - SL15 Drilled Pin 3.39 Inch LGMaxon RSM0052 - SL15 Drilled Pin 3.39 Inch LGRSM0052-MAXO$27.93
2Maxon 280082-01 - Roller Opener 3.5 X 1.25 X .5Maxon 280082-01 - Roller Opener 3.5 X 1.25 X .5280082-01-MAXO$23.28
3Maxon 902001-2 - Flat Washer 3/8 X 1/16 Inch ZCMaxon 902001-2 - Flat Washer 3/8 X 1/16 Inch ZC902001-2-MAXO$0.18
4Maxon 908078-02 - FB Thrust Bearing 1.25 IDMaxon 908078-02 - FB Thrust Bearing 1.25 ID908078-02-MAXO$10.70
5Maxon 902000-8 - Flat Washer - .312 .063 THKMaxon 902000-8 - Flat Washer - .312 .063 THK902000-8-MAXO$0.32
6Maxon 268514-01 - Bracket Conduit MountMaxon 268514-01 - Bracket Conduit Mount268514-01-MAXO$8.66
7Maxon 902011-3 - Lock Washer 5/16 X 5/64 Inch G8 ZCMaxon 902011-3 - Lock Washer 5/16 X 5/64 Inch G8 ZC902011-3-MAXO$0.11
8Maxon 900009-1 - Screw Cap 5/16-18 X 5/8 Inch GR8 ZCMaxon 900009-1 - Screw Cap 5/16-18 X 5/8 Inch GR8 ZC900009-1-MAXO$0.30
9Maxon 285217-01 - SL15 Tilt Arm Pin - 2.93 InchMaxon 285217-01 - SL15 Tilt Arm Pin - 2.93 Inch285217-01-MAXO$40.86
10Maxon 900009-5 - Screw Cap 5/16-18 X 1-1/4 Inch G8 ZCMaxon 900009-5 - Screw Cap 5/16-18 X 1-1/4 Inch G8 ZC900009-5-MAXO$0.30
11Maxon 900033-10 - Screw Cap - 0.5-20 X 3.5 GR8 ZCMaxon 900033-10 - Screw Cap - 0.5-20 X 3.5 GR8 ZC900033-10-MAXO$3.23
12Maxon 268263-01 - ANSI #50 Connecting LinkMaxon 268263-01 - ANSI #50 Connecting Link268263-01-MAXO$11.97
13Maxon 900014-4 - Hex Cap Screw - .38-16 X 1 G8 ZCMaxon 900014-4 - Hex Cap Screw - .38-16 X 1 G8 ZC900014-4-MAXO$0.71
14Maxon 902011-4 - Washer Lock 3/8 X .094 ZCMaxon 902011-4 - Washer Lock 3/8 X .094 ZC902011-4-MAXO$0.15
15Maxon 905033-5 - 2.00 x .25 Inch OD Roll PinMaxon 905033-5 - 2.00 x .25 Inch OD Roll Pin905033-5-MAXO$0.41
16Maxon RSM0017 - SL15 Chain AdjusterMaxon RSM0017 - SL15 Chain AdjusterRSM0017-MAXO$47.21
17Maxon 268262-12 - Chain - CRES - ANSI #50 - 83 LinksMaxon 268262-12 - Chain - CRES - ANSI #50 - 83 Links268262-12-MAXO$125.61
18Maxon 901008 - Nut Nylon 1/2-20 ZCMaxon 901008 - Nut Nylon 1/2-20 ZC901008-MAXO$1.28
19Maxon 901001 - Nut - Nylon - 5/16-18 ZincMaxon 901001 - Nut - Nylon - 5/16-18 Zinc901001-MAXO$0.18
20Maxon 287133-01 - Mounting Latch CAINH WeldmentMaxon 287133-01 - Mounting Latch CAINH Weldment287133-01-MAXO$68.52
21Maxon 282866-07 - Galvanized Chain 0.38 X 18.10 Inch LGMaxon 282866-07 - Galvanized Chain 0.38 X 18.10 Inch LG282866-07-MAXO$44.30
22Maxon 285989-01 - Chain ShackleMaxon 285989-01 - Chain Shackle285989-01-MAXO$29.91
23Maxon 225990 - Hook Snap 3/4 X 4 Inch 750# ZincMaxon 225990 - Hook Snap 3/4 X 4 Inch 750# Zinc225990-MAXO$15.68

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
