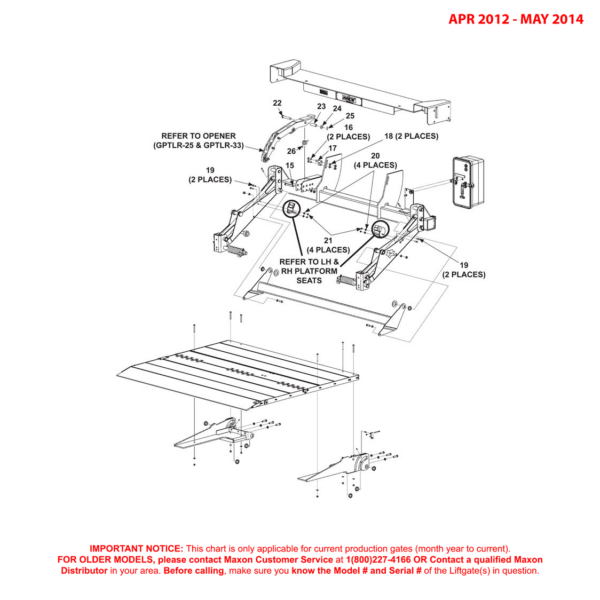

Maxon GPTLR-25 And GPTLR-33 (Apr 2012 - May 2014) Steel Platform Main Assembly With Ramp Option (1 OF 2) From ITEParts.com

ID	Title	SKU	Price
15	Maxon 900035-12 - Screw Cap HXHD .5-13UNC-2A 4.50	900035-12-MAXO	$3.23
16	Maxon 900035-7 - Screw Cap Hex Head .5-13UNC-2A 2.50	900035-7-MAXO	$1.83
17	Maxon 281673-01 - Stop Block	281673-01-MAXO	$57.15
18	Maxon 902000-16 - Flat Washer .562 .063 THK	902000-16-MAXO	$0.41
19	Maxon 900014-5 - Screw Hex Cap - .38-16 X 1.25 G8 ZC	900014-5-MAXO	$0.72
20	Maxon 902000-10 - Washer Flat .375 X .063 THK	902000-10-MAXO	$0.36
21	Maxon 901016-4 - Nut Hex THN HD LKG .375-16UNC	901016-4-MAXO	$0.21
22	Maxon 282277-01 - Pin Opener	282277-01-MAXO	$21.74
23	Maxon 092046-10 - Bushing	092046-10-MAXO	$6.54
24	Maxon 902000-20 - Flat Washer - .750 .090 Inch THK	902000-20-MAXO	$1.31
25	Maxon 905033-2 - Roll Pin - 1/4 X 1-1/4 Inch ZINC	905033-2-MAXO	$0.33
26	Maxon 284568-01 - Spring - TRSN 180 DEG X .048W X .38OD	284568-01-MAXO	$47.58

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

LOCATE YOUR SERIAL PLATE on your Liftgate.
LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
