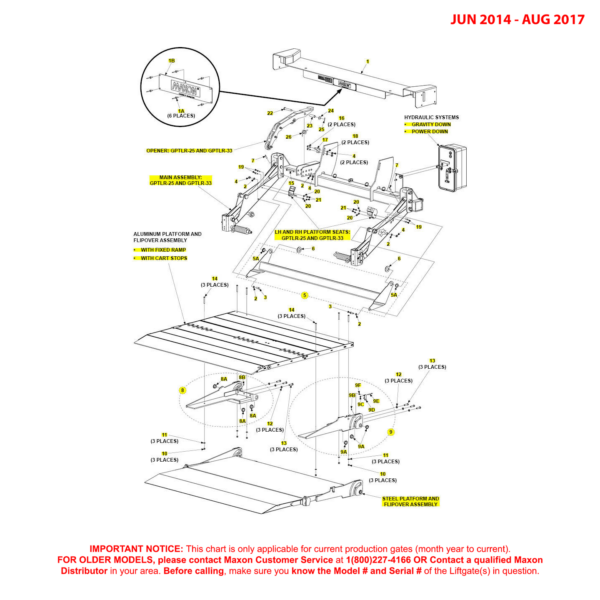

Maxon GPTLR-25 And GPTLR-33 (Jun 2014 - Aug 2017) Final Assembly Diagram

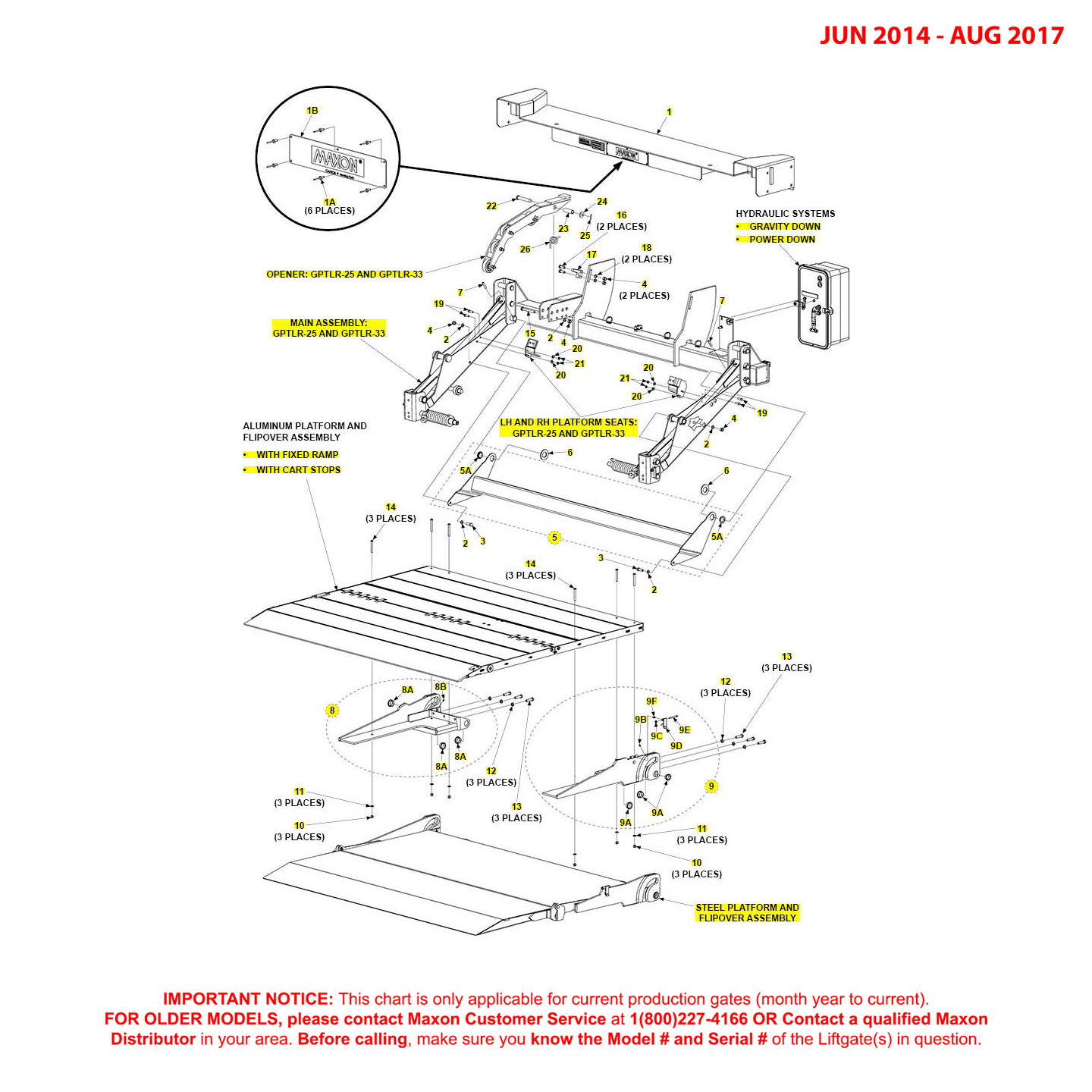

Maxon GPTLR-25 And GPTLR-33 (Jun 2014 – Aug 2017) Final Assembly Diagram

SKU: GPTLR25-GPTLR33-JUN14-AUG17-FA-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 207644 - Rivet BLND 0.19 X.58 DomeMaxon 207644 - Rivet BLND 0.19 X.58 Dome207644-MAXO$0.32
1Maxon 266705-01 - Plate Maxon - 3.25 X 15 BLKMaxon 266705-01 - Plate Maxon - 3.25 X 15 BLK266705-01-MAXO$3.00
1Maxon 281090-01G - Ext Plate Assembly 96 Inch LG GALMaxon 281090-01G - Ext Plate Assembly 96 Inch LG GAL281090-01G-MAXO$1,059.83
1Maxon 281090-01 - Extension Plate Assembly 96 Inch LGMaxon 281090-01 - Extension Plate Assembly 96 Inch LG281090-01-MAXO$2,574.98
1Maxon 281090-02G - Extension Plate Assembly 102 Inch LG GALMaxon 281090-02G - Extension Plate Assembly 102 Inch LG GAL281090-02G-MAXO$2,428.73
1Maxon 281090-02 - Extension Plate Assembly 102 Inch LGMaxon 281090-02 - Extension Plate Assembly 102 Inch LG281090-02-MAXO$2,600.33
2Maxon 902000-14 - Flat Washer .500 X .063 THKMaxon 902000-14 - Flat Washer .500 X .063 THK902000-14-MAXO$0.98
3Maxon 900035-3 - Screw Cap HXHD .5-13UNC-2A 1.50Maxon 900035-3 - Screw Cap HXHD .5-13UNC-2A 1.50900035-3-MAXO$1.28
4Maxon 901010 - Nylon Lock Nut 1/2-13 ZCMaxon 901010 - Nylon Lock Nut 1/2-13 ZC901010-MAXO$0.54
5Maxon 281580-01G - ICC Bumper Assembly 96 LG GALVMaxon 281580-01G - ICC Bumper Assembly 96 LG GALV281580-01G-MAXO$917.52
5Maxon 281580-01 - ICC Bumper Assembly 96 LGMaxon 281580-01 - ICC Bumper Assembly 96 LG281580-01-MAXO$812.31
5Maxon 281580-02G - ICC Bumper Assembly 102 LG GALVMaxon 281580-02G - ICC Bumper Assembly 102 LG GALV281580-02G-MAXO$982.73
5Maxon 281580-02 - ICC Bumper Assembly 102 LGMaxon 281580-02 - ICC Bumper Assembly 102 LG281580-02-MAXO$998.97
5Maxon 908088-01 - BRG FLG 1.38ID X .38LMaxon 908088-01 - BRG FLG 1.38ID X .38L908088-01-MAXO$25.08
6Maxon 902013-21 - Flat Washer 1-3/8 Inch ZCMaxon 902013-21 - Flat Washer 1-3/8 Inch ZC902013-21-MAXO$4.53
7Maxon 904717-06 - ZN Roll Pin - 0.38 x 2 InchesMaxon 904717-06 - ZN Roll Pin - 0.38 x 2 Inches904717-06-MAXO$0.60
8Maxon 284545-01G - P/F SPRT Assembly LH GPTLR25 GALVMaxon 284545-01G - P/F SPRT Assembly LH GPTLR25 GALV284545-01G-MAXO$778.62
8Maxon 284545-01 - P/F SPRT Assembly LH GPTLR25/33Maxon 284545-01 - P/F SPRT Assembly LH GPTLR25/33284545-01-MAXO$903.23
9Maxon 224342 - 1/4 Self Drill Grease FittingMaxon 224342 - 1/4 Self Drill Grease Fitting224342-MAXO$0.45
9Maxon 284545-02G - P/F SPRT Assembly RH GPTLR25 GALVMaxon 284545-02G - P/F SPRT Assembly RH GPTLR25 GALV284545-02G-MAXO$869.84
9Maxon 284545-02 - P/F SPRT Assembly RH GPTLR25/33Maxon 284545-02 - P/F SPRT Assembly RH GPTLR25/33284545-02-MAXO$991.56
9Maxon 284645-01 - Latch Weldment GPTLR P/FMaxon 284645-01 - Latch Weldment GPTLR P/F284645-01-MAXO$31.85
9Maxon 900732-14 - Screw SOC .2520 X 2.75 SSMaxon 900732-14 - Screw SOC .2520 X 2.75 SS900732-14-MAXO$1.10
9Maxon 903137-01 - Nut - Nylon Insert Stop - .25-20 SSMaxon 903137-01 - Nut - Nylon Insert Stop - .25-20 SS903137-01-MAXO$0.48
9Maxon 908008-02 - BRG Flanged 1.375 SHFT X .63 LGMaxon 908008-02 - BRG Flanged 1.375 SHFT X .63 LG908008-02-MAXO$21.66
11Maxon 902013-11 - Flat Washer 3/8 Inch ZCMaxon 902013-11 - Flat Washer 3/8 Inch ZC902013-11-MAXO$0.18
12Maxon 902011-6 - Washer Lock 1/2 X 1/8 Inch ZCMaxon 902011-6 - Washer Lock 1/2 X 1/8 Inch ZC902011-6-MAXO$0.26
13Maxon 900035-5 - Screw Cap Hex Head - 0.5-13UNC-2A 2.00Maxon 900035-5 - Screw Cap Hex Head - 0.5-13UNC-2A 2.00900035-5-MAXO$1.50
14Maxon 900064-08 - Screw - BTN .38-16 X 3.25 InchMaxon 900064-08 - Screw - BTN .38-16 X 3.25 Inch900064-08-MAXO$2.60
15Maxon 900035-12 - Screw Cap HXHD .5-13UNC-2A 4.50Maxon 900035-12 - Screw Cap HXHD .5-13UNC-2A 4.50900035-12-MAXO$3.23
16Maxon 900035-7 - Screw Cap Hex Head .5-13UNC-2A 2.50Maxon 900035-7 - Screw Cap Hex Head .5-13UNC-2A 2.50900035-7-MAXO$1.83
17Maxon 281673-01 - Stop BlockMaxon 281673-01 - Stop Block281673-01-MAXO$57.15
18Maxon 902000-16 - Flat Washer .562 .063 THKMaxon 902000-16 - Flat Washer .562 .063 THK902000-16-MAXO$0.41
19Maxon 900014-5 - Screw Hex Cap - .38-16 X 1.25 G8 ZCMaxon 900014-5 - Screw Hex Cap - .38-16 X 1.25 G8 ZC900014-5-MAXO$0.72
20Maxon 902000-10 - Washer Flat .375 X .063 THKMaxon 902000-10 - Washer Flat .375 X .063 THK902000-10-MAXO$0.36
21Maxon 901016-4 - Nut Hex THN HD LKG .375-16UNCMaxon 901016-4 - Nut Hex THN HD LKG .375-16UNC901016-4-MAXO$0.21
22Maxon 282277-01 - Pin OpenerMaxon 282277-01 - Pin Opener282277-01-MAXO$21.74
23Maxon 092046-10 - BushingMaxon 092046-10 - Bushing092046-10-MAXO$6.54
24Maxon 902000-20 - Flat Washer - .750 .090 Inch THKMaxon 902000-20 - Flat Washer - .750 .090 Inch THK902000-20-MAXO$1.31
25Maxon 905033-2 - Roll Pin - 1/4 X 1-1/4 Inch ZINCMaxon 905033-2 - Roll Pin - 1/4 X 1-1/4 Inch ZINC905033-2-MAXO$0.33
26Maxon 284568-01 - Spring - TRSN 180 DEG X .048W X .38ODMaxon 284568-01 - Spring - TRSN 180 DEG X .048W X .38OD284568-01-MAXO$47.58

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
