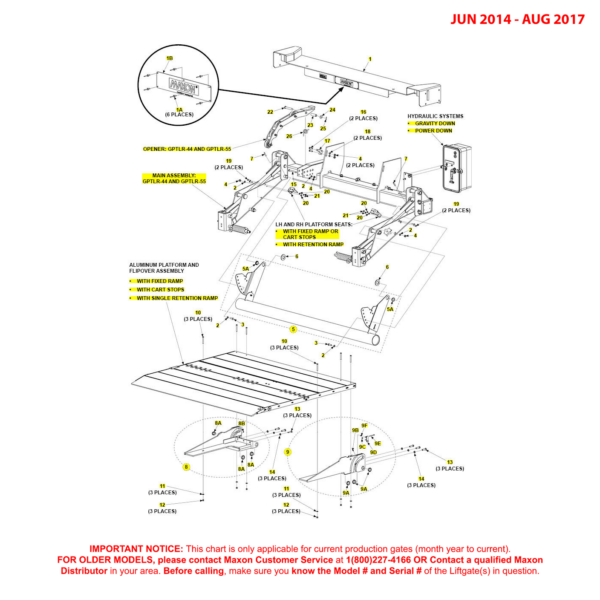

Maxon GPTLR-44 And GPTLR-55 (Jun 2014 - Aug 2017) Final Assembly Diagram

Maxon GPTLR-44 And GPTLR-55 (Jun 2014 – Aug 2017) Final Assembly Diagram

SKU: GPTLR44-GPTLR55-JUN14-AUG17-FA-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 207644 - Rivet BLND 0.19 X.58 DomeMaxon 207644 - Rivet BLND 0.19 X.58 Dome207644-MAXO$0.32
1Maxon 266705-01 - Plate Maxon - 3.25 X 15 BLKMaxon 266705-01 - Plate Maxon - 3.25 X 15 BLK266705-01-MAXO$3.00
1Maxon 281120-01G - EXT Plate Assembly 96 Inch LG GALMaxon 281120-01G - EXT Plate Assembly 96 Inch LG GAL281120-01G-MAXO$1,053.00
1Maxon 281120-01 - EXT Plate Assembly 96 Inch LGMaxon 281120-01 - EXT Plate Assembly 96 Inch LG281120-01-MAXO$1,116.38
1Maxon 281120-02G - EXT Plate Assembly 102 Inch LG GALMaxon 281120-02G - EXT Plate Assembly 102 Inch LG GAL281120-02G-MAXO$2,172.30
1Maxon 281120-02 - EXT Plate Assembly 102 Inch LGMaxon 281120-02 - EXT Plate Assembly 102 Inch LG281120-02-MAXO$2,303.93
2Maxon 902000-14 - Flat Washer .500 X .063 THKMaxon 902000-14 - Flat Washer .500 X .063 THK902000-14-MAXO$0.98
3Maxon 900035-3 - Screw Cap HXHD .5-13UNC-2A 1.50Maxon 900035-3 - Screw Cap HXHD .5-13UNC-2A 1.50900035-3-MAXO$1.28
4Maxon 901010 - Nylon Lock Nut 1/2-13 ZCMaxon 901010 - Nylon Lock Nut 1/2-13 ZC901010-MAXO$0.54
5Maxon 281399-01G - U/Ride Assembly ADJ 96 Inch EXT PL GALMaxon 281399-01G - U/Ride Assembly ADJ 96 Inch EXT PL GAL281399-01G-MAXO$1,872.98
5Maxon 281399-01 - Underride Assembly ADJ 96 Inch EXT PLMaxon 281399-01 - Underride Assembly ADJ 96 Inch EXT PL281399-01-MAXO$1,362.08
5Maxon 908088-01 - BRG FLG 1.38ID X .38LMaxon 908088-01 - BRG FLG 1.38ID X .38L908088-01-MAXO$25.08
6Maxon 281399-02G - U/Ride Assembly ADJ 102 Inch EXT PL GALMaxon 281399-02G - U/Ride Assembly ADJ 102 Inch EXT PL GAL281399-02G-MAXO$2,060.18
6Maxon 281399-02 - Underride Assembly ADJ 102 Inch EXT PLMaxon 281399-02 - Underride Assembly ADJ 102 Inch EXT PL281399-02-MAXO$1,748.18
6Maxon 902013-21 - Flat Washer 1-3/8 Inch ZCMaxon 902013-21 - Flat Washer 1-3/8 Inch ZC902013-21-MAXO$4.53
7Maxon 904717-06 - ZN Roll Pin - 0.38 x 2 InchesMaxon 904717-06 - ZN Roll Pin - 0.38 x 2 Inches904717-06-MAXO$0.60
8Maxon 284843-01G - P/F SPRT Assembly LH GPTLR44/55 GMaxon 284843-01G - P/F SPRT Assembly LH GPTLR44/55 G284843-01G-MAXO$893.36
8Maxon 284843-01 - P/F SPRT Assembly LH GPTLR44/55Maxon 284843-01 - P/F SPRT Assembly LH GPTLR44/55284843-01-MAXO$1,001.37
9Maxon 224342 - 1/4 Self Drill Grease FittingMaxon 224342 - 1/4 Self Drill Grease Fitting224342-MAXO$0.45
9Maxon 284645-01 - Latch Weldment GPTLR P/FMaxon 284645-01 - Latch Weldment GPTLR P/F284645-01-MAXO$31.85
9Maxon 284843-02G - P/F SPRT Assembly RH GPTLR44/55 GMaxon 284843-02G - P/F SPRT Assembly RH GPTLR44/55 G284843-02G-MAXO$964.94
9Maxon 284843-02 - P/F SPRT Assembly RH GPTLR44/55Maxon 284843-02 - P/F SPRT Assembly RH GPTLR44/55284843-02-MAXO$953.03
9Maxon 900732-14 - Screw SOC .2520 X 2.75 SSMaxon 900732-14 - Screw SOC .2520 X 2.75 SS900732-14-MAXO$1.10
9Maxon 903137-01 - Nut - Nylon Insert Stop - .25-20 SSMaxon 903137-01 - Nut - Nylon Insert Stop - .25-20 SS903137-01-MAXO$0.48
9Maxon 908008-02 - BRG Flanged 1.375 SHFT X .63 LGMaxon 908008-02 - BRG Flanged 1.375 SHFT X .63 LG908008-02-MAXO$21.66
10Maxon 900064-08 - Screw - BTN .38-16 X 3.25 InchMaxon 900064-08 - Screw - BTN .38-16 X 3.25 Inch900064-08-MAXO$2.60
11Maxon 902013-11 - Flat Washer 3/8 Inch ZCMaxon 902013-11 - Flat Washer 3/8 Inch ZC902013-11-MAXO$0.18
12Maxon 901002 - Nut Nylon 3/8-16 ZincMaxon 901002 - Nut Nylon 3/8-16 Zinc901002-MAXO$0.36
13Maxon 900035-5 - Screw Cap Hex Head - 0.5-13UNC-2A 2.00Maxon 900035-5 - Screw Cap Hex Head - 0.5-13UNC-2A 2.00900035-5-MAXO$1.50
14Maxon 902011-6 - Washer Lock 1/2 X 1/8 Inch ZCMaxon 902011-6 - Washer Lock 1/2 X 1/8 Inch ZC902011-6-MAXO$0.26
15Maxon 900035-12 - Screw Cap HXHD .5-13UNC-2A 4.50Maxon 900035-12 - Screw Cap HXHD .5-13UNC-2A 4.50900035-12-MAXO$3.23
16Maxon 900035-7 - Screw Cap Hex Head .5-13UNC-2A 2.50Maxon 900035-7 - Screw Cap Hex Head .5-13UNC-2A 2.50900035-7-MAXO$1.83
17Maxon 281673-01 - Stop BlockMaxon 281673-01 - Stop Block281673-01-MAXO$57.15
18Maxon 902000-16 - Flat Washer .562 .063 THKMaxon 902000-16 - Flat Washer .562 .063 THK902000-16-MAXO$0.41
19Maxon 900014-5 - Screw Hex Cap - .38-16 X 1.25 G8 ZCMaxon 900014-5 - Screw Hex Cap - .38-16 X 1.25 G8 ZC900014-5-MAXO$0.72
20Maxon 902000-10 - Washer Flat .375 X .063 THKMaxon 902000-10 - Washer Flat .375 X .063 THK902000-10-MAXO$0.36
21Maxon 901016-4 - Nut Hex THN HD LKG .375-16UNCMaxon 901016-4 - Nut Hex THN HD LKG .375-16UNC901016-4-MAXO$0.21
22Maxon 282277-01 - Pin OpenerMaxon 282277-01 - Pin Opener282277-01-MAXO$21.74
23Maxon 092046-10 - BushingMaxon 092046-10 - Bushing092046-10-MAXO$6.54
24Maxon 902000-20 - Flat Washer - .750 .090 Inch THKMaxon 902000-20 - Flat Washer - .750 .090 Inch THK902000-20-MAXO$1.31
25Maxon 905033-2 - Roll Pin - 1/4 X 1-1/4 Inch ZINCMaxon 905033-2 - Roll Pin - 1/4 X 1-1/4 Inch ZINC905033-2-MAXO$0.33
26Maxon 284568-01 - Spring - TRSN 180 DEG X .048W X .38ODMaxon 284568-01 - Spring - TRSN 180 DEG X .048W X .38OD284568-01-MAXO$47.58

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
