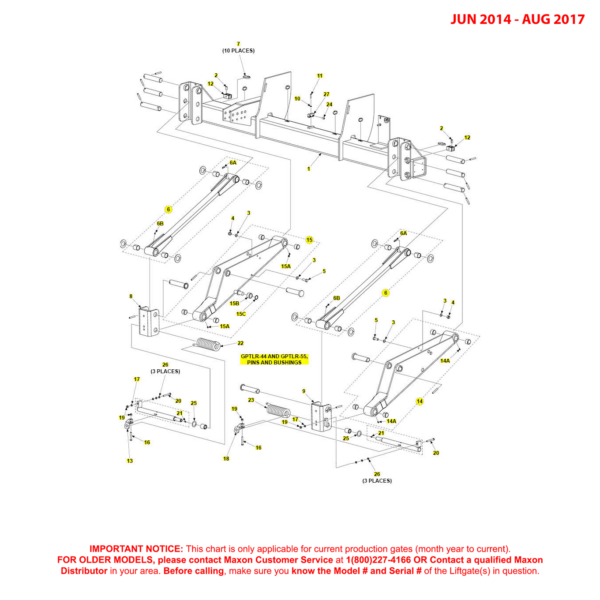

Maxon GPTLR-44 And GPTLR-55 (Jun 2014 - Aug 2017) Main Assembly Diagram

Maxon GPTLR-44 And GPTLR-55 (Jun 2014 – Aug 2017) Main Assembly Diagram

SKU: GPTLR44-GPTLR55-JUN14-AUG17-MA-DG Category:
ID Image Title SKU Price Quantity Add to Cart
2Maxon 905140-01 - Tubing Rubber 1/4 X 3/4 X 1 InchMaxon 905140-01 - Tubing Rubber 1/4 X 3/4 X 1 Inch905140-01-MAXO$3.78
3Maxon 902000-14 - Flat Washer .500 X .063 THKMaxon 902000-14 - Flat Washer .500 X .063 THK902000-14-MAXO$0.98
4Maxon 901010 - Nylon Lock Nut 1/2-13 ZCMaxon 901010 - Nylon Lock Nut 1/2-13 ZC901010-MAXO$0.54
5Maxon 900035-3 - Screw Cap HXHD .5-13UNC-2A 1.50Maxon 900035-3 - Screw Cap HXHD .5-13UNC-2A 1.50900035-3-MAXO$1.28
6Maxon 282546-01G - Parallel Arm Assembly GALMaxon 282546-01G - Parallel Arm Assembly GAL282546-01G-MAXO$697.29
6Maxon 282546-01 - Parallel Arm AssemblyMaxon 282546-01 - Parallel Arm Assembly282546-01-MAXO$630.48
7Maxon 905322-01 - Plastic Tie 8 Inch (120LB) BlackMaxon 905322-01 - Plastic Tie 8 Inch (120LB) Black905322-01-MAXO$0.50
8Maxon 281033-02G - Shackle Weldment LH GALMaxon 281033-02G - Shackle Weldment LH GAL281033-02G-MAXO$244.95
8Maxon 281033-02 - Shackle Weldment LHMaxon 281033-02 - Shackle Weldment LH281033-02-MAXO$194.78
9Maxon 281033-01G - Shackle Weldment RH GALMaxon 281033-01G - Shackle Weldment RH GAL281033-01G-MAXO$266.07
9Maxon 281033-01 - Shackle Weldment RHMaxon 281033-01 - Shackle Weldment RH281033-01-MAXO$194.78
10Maxon 903412-01 - Flat Washer .25 SSMaxon 903412-01 - Flat Washer .25 SS903412-01-MAXO$0.20
11Maxon 900719-08 - Button Screw .25-20 X 1.25 Inch SSMaxon 900719-08 - Button Screw .25-20 X 1.25 Inch SS900719-08-MAXO$0.51
13Maxon 287767-01 - Bracket Reinforcement Weldment RHMaxon 287767-01 - Bracket Reinforcement Weldment RH287767-01-MAXO$38.90
14Maxon 224342 - 1/4 Self Drill Grease FittingMaxon 224342 - 1/4 Self Drill Grease Fitting224342-MAXO$0.45
14Maxon 282543-01G - Lift Arm Assembly RH GALMaxon 282543-01G - Lift Arm Assembly RH GAL282543-01G-MAXO$1,318.20
14Maxon 282543-01 - Lift Arm Assembly RHMaxon 282543-01 - Lift Arm Assembly RH282543-01-MAXO$1,077.38
15Maxon 224342 - 1/4 Self Drill Grease FittingMaxon 224342 - 1/4 Self Drill Grease Fitting224342-MAXO$0.45
15Maxon 282543-02g - Lift Arm Assembly LH GALMaxon 282543-02g - Lift Arm Assembly LH GAL282543-02G-MAXO$1,101.75
15Maxon 282543-02 - Lift Arm Assembly LHMaxon 282543-02 - Lift Arm Assembly LH282543-02-MAXO$1,077.38
15Maxon 903420-02 - Ring Retain SLF/LCK 1.0 SSMaxon 903420-02 - Ring Retain SLF/LCK 1.0 SS903420-02-MAXO$3.15
16Maxon 900014-10 - Screw Hex Cap .38-16 X 2.5 Inch G8 ZCMaxon 900014-10 - Screw Hex Cap .38-16 X 2.5 Inch G8 ZC900014-10-MAXO$0.89
17Maxon 902000-10 - Washer Flat .375 X .063 THKMaxon 902000-10 - Washer Flat .375 X .063 THK902000-10-MAXO$0.36
18Maxon 287767-02 - Bracket Reinforcement Weldment LHMaxon 287767-02 - Bracket Reinforcement Weldment LH287767-02-MAXO$38.90
19Maxon 901002 - Nut Nylon 3/8-16 ZincMaxon 901002 - Nut Nylon 3/8-16 Zinc901002-MAXO$0.36
20Maxon 900014-13 - Screw Hex Cap .38-16 X 3.5 Inch G8 ZCMaxon 900014-13 - Screw Hex Cap .38-16 X 3.5 Inch G8 ZC900014-13-MAXO$1.55
21Maxon 224342 - 1/4 Self Drill Grease FittingMaxon 224342 - 1/4 Self Drill Grease Fitting224342-MAXO$0.45
22Maxon 280950-01 - Torsion SpringMaxon 280950-01 - Torsion Spring280950-01-MAXO$117.23
23Maxon 281319-02 - Torsion SpringMaxon 281319-02 - Torsion Spring281319-02-MAXO$201.74
24Maxon 905353-11 - Rubber Tubing .38 ID X .5 OD X .75 InchMaxon 905353-11 - Rubber Tubing .38 ID X .5 OD X .75 Inch905353-11-MAXO$1.44
25Maxon 903407-02 - Shim SS 1.38 ID X 1.88 OD X .030 THK InchMaxon 903407-02 - Shim SS 1.38 ID X 1.88 OD X .030 THK Inch903407-02-MAXO$2.09
26Maxon 903447-02 - Flat Washer .375 X .063 Inch THK SSMaxon 903447-02 - Flat Washer .375 X .063 Inch THK SS903447-02-MAXO$0.17
27Maxon 905071-03 - Double-Line Plastic Clamp 0.5 Inch DIAMaxon 905071-03 - Double-Line Plastic Clamp 0.5 Inch DIA905071-03-MAXO$4.86

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
