Maxon GPTLR-44 And GPTLR-55 (Sep 2017 - Present) Opener Assembly Diagram

GPTLR (Sep 2017 - Present) Diagrams

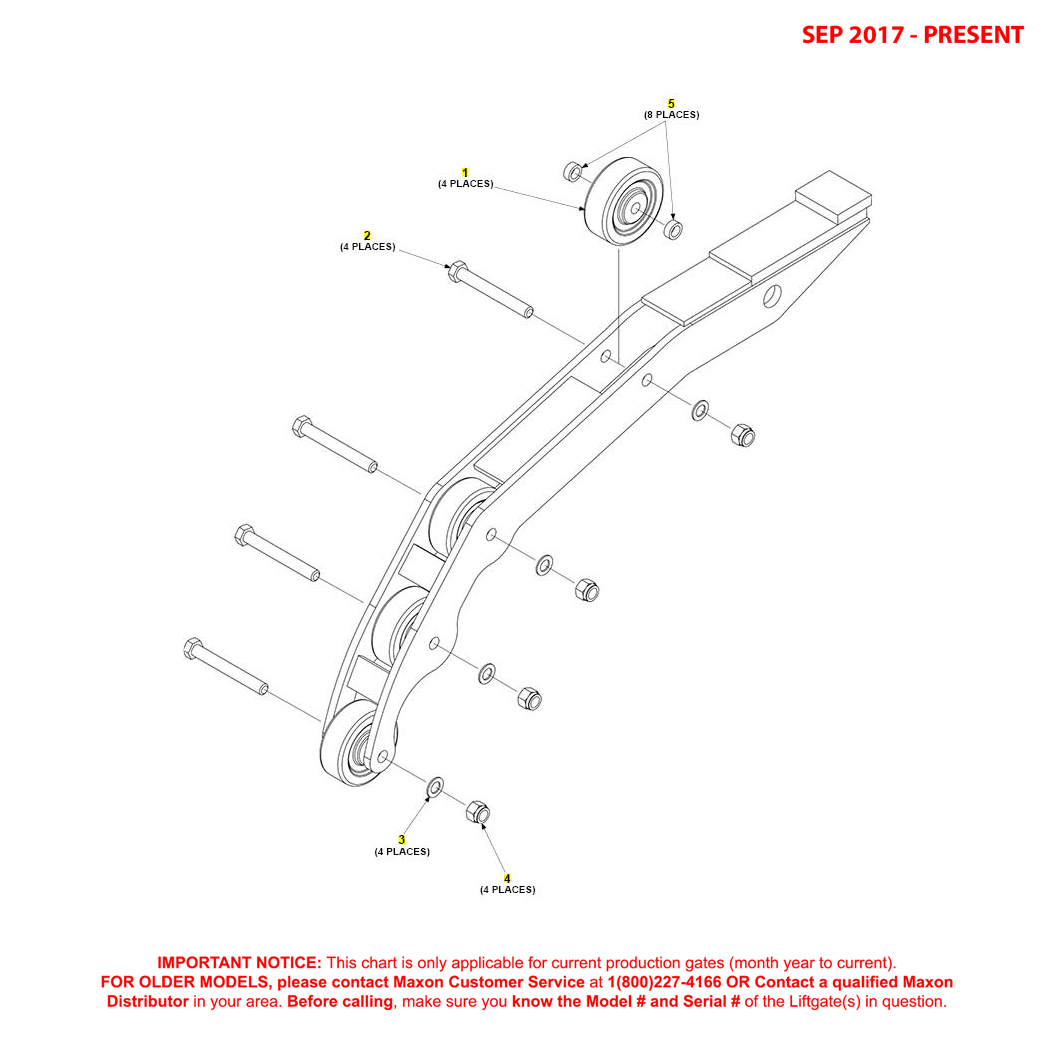

Maxon GPTLR-44 And GPTLR-55 (Sep 2017 – Present) Opener Assembly Diagram

SKU: GPTLR44-GPTLR55-SEP17-PRES-OA-DG Category: GPTLR (Sep 2017 - Present) Diagrams

Options
Description

ID	Image	Title	SKU	Price	Quantity	Add to Cart
0		Maxon 282505-01G - Opener Assembly GPTLR4/5 GAL	282505-01G-MAXO	$477.78
1		Maxon 280082-01 - Roller Opener 3.5 X 1.25 X .5	280082-01-MAXO	$23.28
2		Maxon 900035-11 - Screw Cap HXHD .5-13 UNC-2A 4.00	900035-11-MAXO	$2.69
3		Maxon 902000-14 - Flat Washer .500 X .063 THK	902000-14-MAXO	$0.98
4		Maxon 901010 - Nylon Lock Nut 1/2-13 ZC	901010-MAXO	$0.54
5		Maxon 092028-10 - Spacer	092028-10-MAXO	$2.58

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

LOCATE YOUR SERIAL PLATE on your Liftgate.
LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
