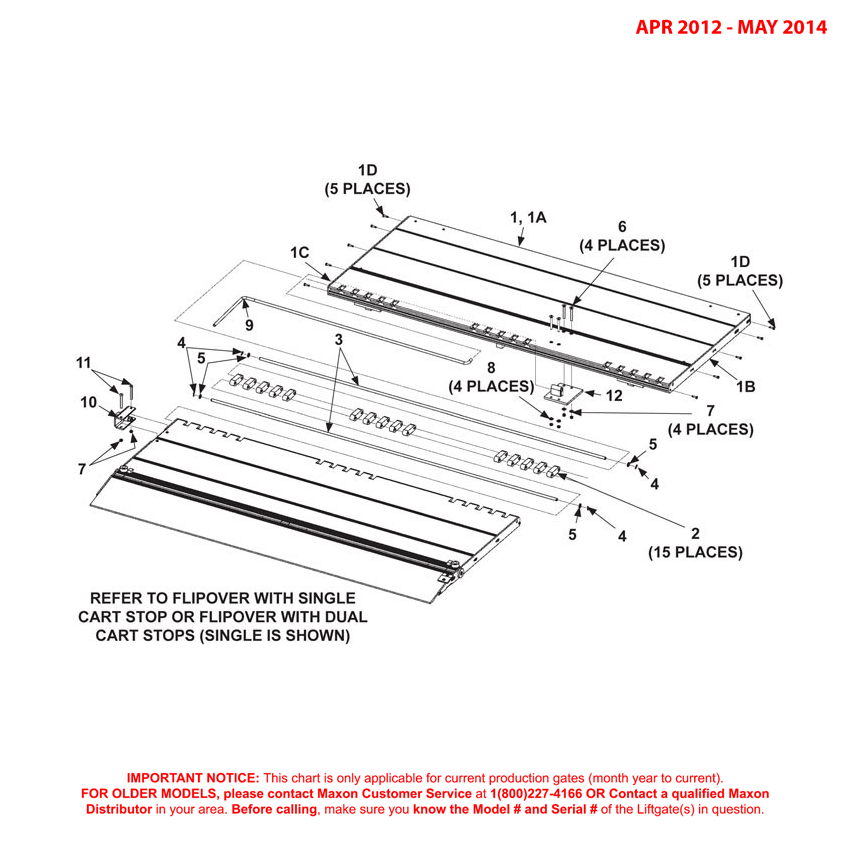

Maxon GPTLR (Apr 2012 - May 2014) Aluminum Platform And Flipover Assembly With Cart Stops Diagram

Maxon GPTLR (Apr 2012 – May 2014) Aluminum Platform And Flipover Assembly With Cart Stops Diagram

SKU: GPTLR-APR12-MAY14-ALPFFOA-CS-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 280987-01 - Side Plate RH P/FMaxon 280987-01 - Side Plate RH P/F280987-01-MAXO$38.33
1Maxon 281143-01 - Side Plate P/F LHMaxon 281143-01 - Side Plate P/F LH281143-01-MAXO$40.73
1Maxon 283340-01 - P/F Assembly 79.5 Inch LGMaxon 283340-01 - P/F Assembly 79.5 Inch LG283340-01-MAXO$2,088.45
1Maxon 283340-02 - P/F Assembly 85.5 Inch LGMaxon 283340-02 - P/F Assembly 85.5 Inch LG283340-02-MAXO$2,403.38
1Maxon 900705-01 - SCR Self Tap .25-20 X 1.00 PH ZCMaxon 900705-01 - SCR Self Tap .25-20 X 1.00 PH ZC900705-01-MAXO$0.18
2Maxon 283354-10 - Hinge SpacerMaxon 283354-10 - Hinge Spacer283354-10-MAXO$8.70
3Maxon 263456-12 - Hinge Rod .50 Inch DIA X 80.38 Inch LGMaxon 263456-12 - Hinge Rod .50 Inch DIA X 80.38 Inch LG263456-12-MAXO$145.13
3Maxon 263456-13 - Rod Hinge .50 Inch DIA X 86.38 Inch LGMaxon 263456-13 - Rod Hinge .50 Inch DIA X 86.38 Inch LG263456-13-MAXO$163.47
4Maxon 905015-1 - Pin Roll .188 X .75 ZincMaxon 905015-1 - Pin Roll .188 X .75 Zinc905015-1-MAXO$0.20
5Maxon 902000-14 - Flat Washer .500 X .063 THKMaxon 902000-14 - Flat Washer .500 X .063 THK902000-14-MAXO$0.98
6Maxon 900040-11 - Screw FL HD SOC 3/8-16 X 3 InchMaxon 900040-11 - Screw FL HD SOC 3/8-16 X 3 Inch900040-11-MAXO$1.83
7Maxon 901016-4 - Nut Hex THN HD LKG .375-16UNCMaxon 901016-4 - Nut Hex THN HD LKG .375-16UNC901016-4-MAXO$0.21
8Maxon 902013-11 - Flat Washer 3/8 Inch ZCMaxon 902013-11 - Flat Washer 3/8 Inch ZC902013-11-MAXO$0.18
9Maxon 281141-01 - Torsion Bar GPTMaxon 281141-01 - Torsion Bar GPT281141-01-MAXO$165.06
10Maxon 281135-01 - Bracket Assembly Torsion BarMaxon 281135-01 - Bracket Assembly Torsion Bar281135-01-MAXO$61.47
11Maxon 900014-11 - Screw Hex Cap 0.38-16 X 3 Inch G8 ZCMaxon 900014-11 - Screw Hex Cap 0.38-16 X 3 Inch G8 ZC900014-11-MAXO$1.85
12Maxon 281410-01 - Holder Weldment LHMaxon 281410-01 - Holder Weldment LH281410-01-MAXO$49.59

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
