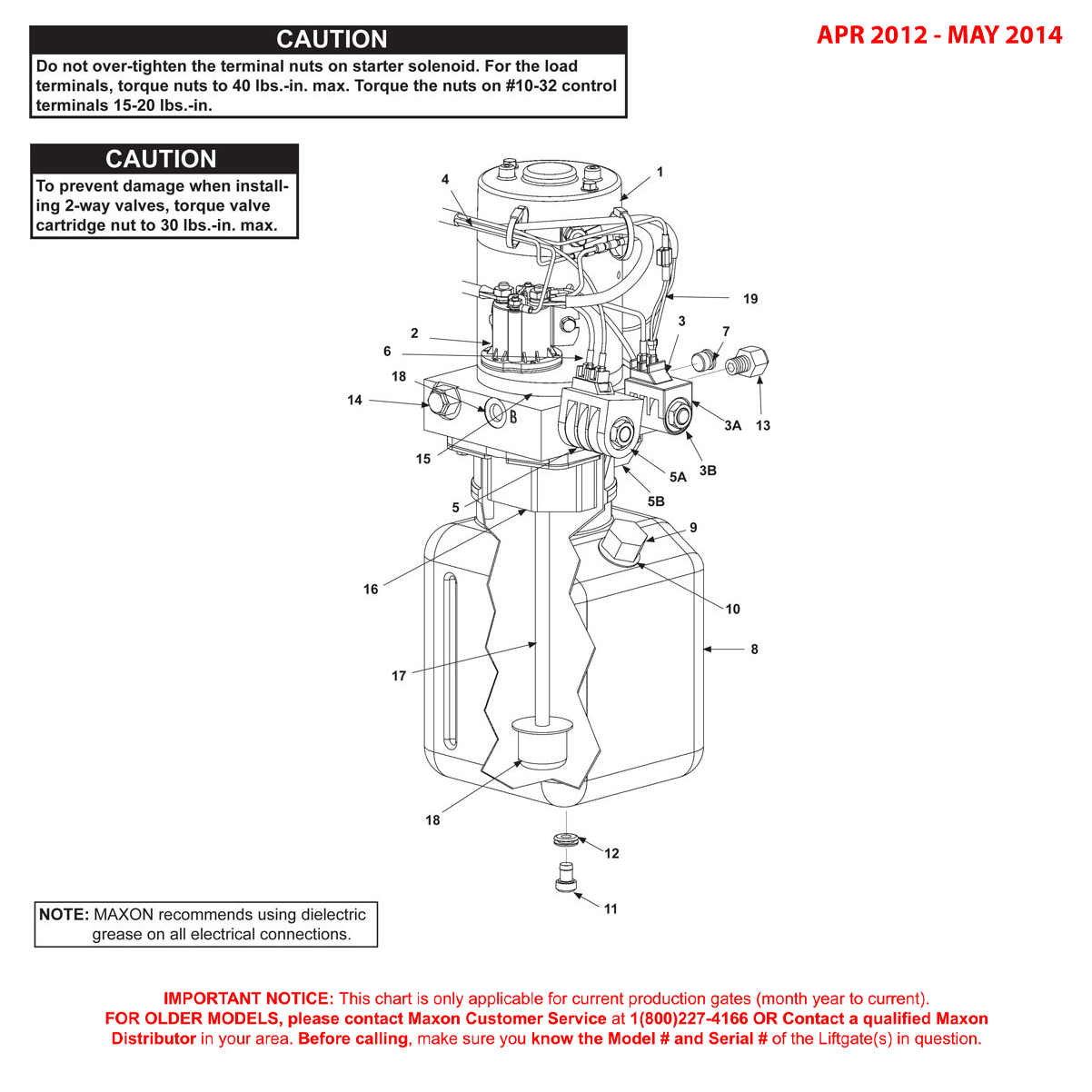

Maxon GPTLR (Apr 2012 - May 2014) Power Down 12VDC Power Unit Diagram

Maxon GPTLR (Apr 2012 – May 2014) Power Down 12VDC Power Unit Diagram

SKU: GPTLR-APR12-MAY14-PD12VDC-PU-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 268176-01 - Motor 12V DCMaxon 268176-01 - Motor 12V DC268176-01-MAXO$412.40
2Maxon 268029-01 - Start Switch SolenoidMaxon 268029-01 - Start Switch Solenoid268029-01-MAXO$82.50
3Maxon 290045 - Coil Double Spade 2WAYMaxon 290045 - Coil Double Spade 2WAY290045-MAXO$33.81
3Maxon 906821-01 - 2P2W Valve and Coil AssemblyMaxon 906821-01 - 2P2W Valve and Coil Assembly906821-01-MAXO$134.40
3Maxon 906822-01 - 2P2W ValveMaxon 906822-01 - 2P2W Valve906822-01-MAXO$98.40
4Maxon 280404 - Cable AssemblyMaxon 280404 - Cable Assembly280404-MAXO$9.51
5Maxon 290046 - Valve Assembly 4WAY Double SpadeMaxon 290046 - Valve Assembly 4WAY Double Spade290046-MAXO$161.58
5Maxon 290047 - Valve Cartridge 4 WayMaxon 290047 - Valve Cartridge 4 Way290047-MAXO$158.60
5Maxon 290048 - Coil Double Spade 3/4 WayMaxon 290048 - Coil Double Spade 3/4 Way290048-MAXO$52.19
7Maxon 261067 - Plug SAE #6 O RingMaxon 261067 - Plug SAE #6 O Ring261067-MAXO$6.81
8Maxon 281437-01 - Reservoir 1.25 GALMaxon 281437-01 - Reservoir 1.25 GAL281437-01-MAXO$102.92
9Maxon 280806-01 - Breather FillerMaxon 280806-01 - Breather Filler280806-01-MAXO$6.32
10Maxon 908016-01 - Rubber Grommet .60 IDMaxon 908016-01 - Rubber Grommet .60 ID908016-01-MAXO$2.69
11Maxon 908017-01 - Drain Port PlugMaxon 908017-01 - Drain Port Plug908017-01-MAXO$3.36
12Maxon 908018-01 - Rubber Grommet .31 IDMaxon 908018-01 - Rubber Grommet .31 ID908018-01-MAXO$1.94
13Maxon 906738-02 - Cartridge Relief Valve HPMaxon 906738-02 - Cartridge Relief Valve HP906738-02-MAXO$48.44
14Maxon 268174-01 - Relief Valve Adjust 1100PSIMaxon 268174-01 - Relief Valve Adjust 1100PSI268174-01-MAXO$46.68
15Maxon 280416 - Wire AssemblyMaxon 280416 - Wire Assembly280416-MAXO$6.20
16Maxon 906781-01 - Pump Assembly 203 GPT P/DMaxon 906781-01 - Pump Assembly 203 GPT P/D906781-01-MAXO$226.92
18Maxon 290073 - Filter SuctionMaxon 290073 - Filter Suction290073-MAXO$8.66

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
