| ID | Image | Title | SKU | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|
| 1 |  | Maxon 264951-04 - Molded Switch and Cable | 264951-04-MAXO | $125.46 | ||
| 1 | | Maxon 267959-01 - Molded Switch Assembly | 267959-01-MAXO | $123.83 | ||
| 2 | | Maxon 900057-5 - Screw Self Tap 10-24 X 1 Inch PH ZC | 900057-5-MAXO | $0.24 | ||
| 3 | | Maxon 905206 - Half-Toggle Switch Seal Boot | 905206-MAXO | $12.63 | ||
| 4 | | Maxon 264422 - Cable Assembly 175 AMPS 38FT | 264422-MAXO | $344.22 | ||
| 5 | | Maxon 264687 - Kit Mega FUSEN 175 AMPS | 264687-MAXO | $47.12 |
GPTLR (Jun 2014 - Aug 2017) Diagrams

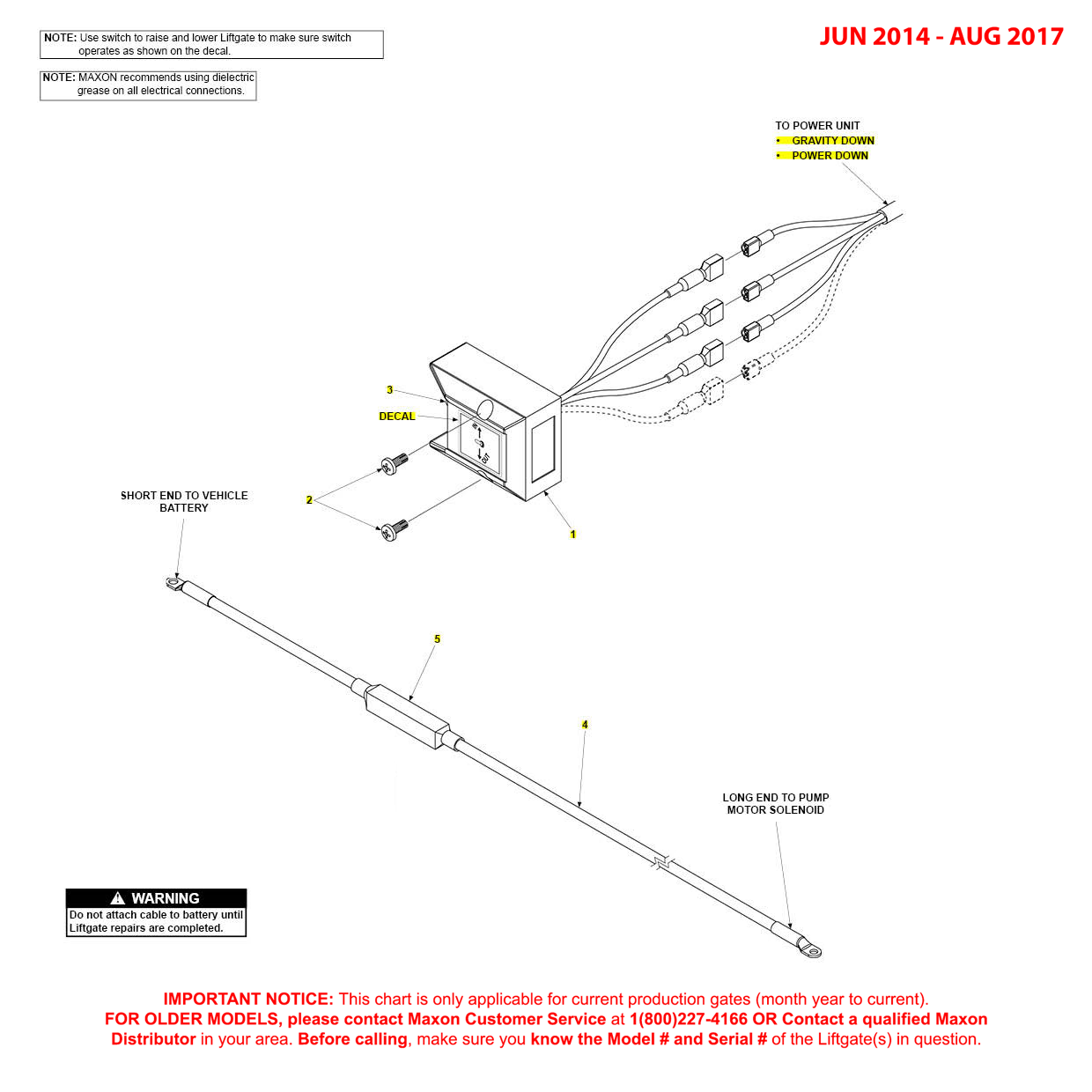

Maxon GPTLR (Jun 2014 – Aug 2017) Control Switch And Power Cable Diagram
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:
- LOCATE YOUR SERIAL PLATE on your Liftgate.
- LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
- IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
- IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!
DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
