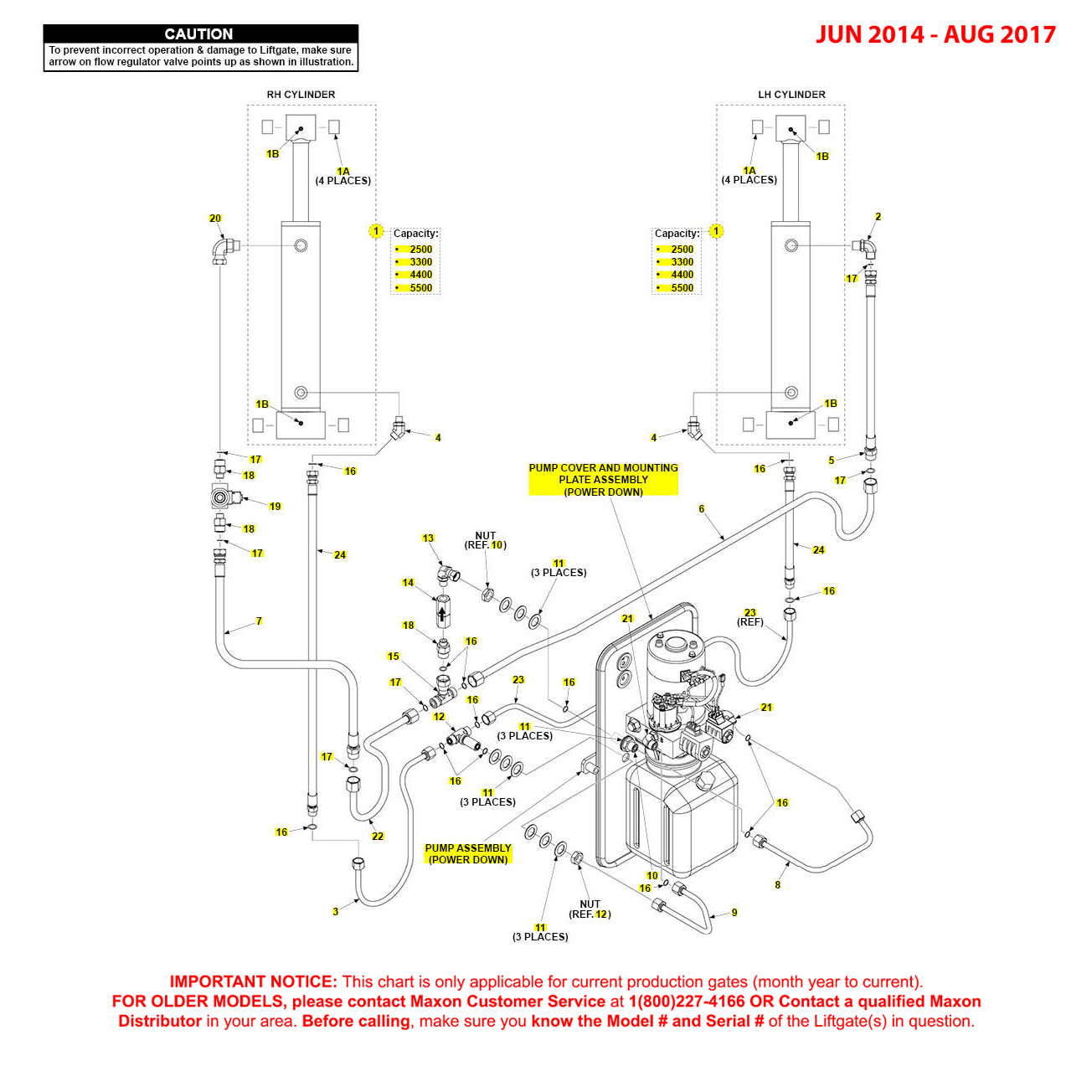

Maxon GPTLR (Jun 2014 - Aug 2017) Power Down Hydraulic Systems Diagram

Maxon GPTLR (Jun 2014 – Aug 2017) Power Down Hydraulic Systems Diagram

SKU: GPTLR-JUN14-AUG17-PD-HYDS-DG Category:
ID Image Title SKU Price Quantity Add to Cart
0Maxon 280990-01 - Hydraulic Cylinder Assembly 2.75 X 11.5 X 1.25R InchMaxon 280990-01 - Hydraulic Cylinder Assembly 2.75 X 11.5 X 1.25R Inch280990-01-MAXO$773.72
0Maxon 281035-01 - Cylinder 3.25 BORE X 12.50 Inch ST S/LB/PULLMaxon 281035-01 - Cylinder 3.25 BORE X 12.50 Inch ST S/LB/PULL281035-01-MAXO$810.11
0Maxon 281040-01 - Cylinder 3.5 Bore X 12.50 Inch ST S/LB/PullMaxon 281040-01 - Cylinder 3.5 Bore X 12.50 Inch ST S/LB/Pull281040-01-MAXO$883.43
0Maxon 285202-01G - Pump Assembly 12VDC PD GPTLR GALVMaxon 285202-01G - Pump Assembly 12VDC PD GPTLR GALV285202-01G-MAXO$2,399.48
0Maxon 285202-01 - Pump Assembly 12VDC PD GPTLRMaxon 285202-01 - Pump Assembly 12VDC PD GPTLR285202-01-MAXO$2,622.75
1Maxon 224342 - 1/4 Self Drill Grease FittingMaxon 224342 - 1/4 Self Drill Grease Fitting224342-MAXO$0.45
1Maxon 908046-02 - S/LUBR Bearing 1.25 X 1.38 X 1.00 InchMaxon 908046-02 - S/LUBR Bearing 1.25 X 1.38 X 1.00 Inch908046-02-MAXO$9.36
1Maxon 908047-02 - S/LUBR Bearing 1.38 X 1.50 X 1.00 InchMaxon 908047-02 - S/LUBR Bearing 1.38 X 1.50 X 1.00 Inch908047-02-MAXO$11.13
2Maxon 906704-01 - Elbow - NPSC - SEA #8 F/S O-R M-MMaxon 906704-01 - Elbow - NPSC - SEA #8 F/S O-R M-M906704-01-MAXO$34.83
3Maxon 284934-01 - F/S TUBE ASSY .38OD P/DN SHORTMaxon 284934-01 - F/S TUBE ASSY .38OD P/DN SHORT284934-01-MAXO$45.89
4Maxon 906775-01 - STR THD 45 Elbow F/S O-R#6 M-MMaxon 906775-01 - STR THD 45 Elbow F/S O-R#6 M-M906775-01-MAXO$10.97
5Maxon 285178-01 - H/Assembly F/S8-8 M-F GPTLR LH-UPMaxon 285178-01 - H/Assembly F/S8-8 M-F GPTLR LH-UP285178-01-MAXO$46.73
6Maxon 284941-01 - F/S Tube Assembly - .5 OD P/UP LONGMaxon 284941-01 - F/S Tube Assembly - .5 OD P/UP LONG284941-01-MAXO$154.01
7Maxon 285177-01 - Hose Assembly F/S8-8 M-F GPTLR RH-UPMaxon 285177-01 - Hose Assembly F/S8-8 M-F GPTLR RH-UP285177-01-MAXO$43.80
8Maxon 285183-01 - F/S Tube Assembly Up GPTLR PD PMPMaxon 285183-01 - F/S Tube Assembly Up GPTLR PD PMP285183-01-MAXO$31.07
9Maxon 285184-01 - F/S Tube Assembly DN GPTLR PD PMPMaxon 285184-01 - F/S Tube Assembly DN GPTLR PD PMP285184-01-MAXO$47.93
10Maxon 906744-01 - Bulkhead Union SAE#6 ORFS M-MMaxon 906744-01 - Bulkhead Union SAE#6 ORFS M-M906744-01-MAXO$12.99
11Maxon 902028-12 - Washer Flat - 1.250 OD X .757 IDMaxon 902028-12 - Washer Flat - 1.250 OD X .757 ID902028-12-MAXO$0.77
12Maxon 906810-01 - Tee - Bulkhead Branch - ORFS #6Maxon 906810-01 - Tee - Bulkhead Branch - ORFS #6906810-01-MAXO$30.57
13Maxon 906708-01 - Elbow - NPSC SAE #6 O-R M-F SWMaxon 906708-01 - Elbow - NPSC SAE #6 O-R M-F SW906708-01-MAXO$43.65
14Maxon 906709-04 - Valve Flow Regulator #6SAE 4.5GPMMaxon 906709-04 - Valve Flow Regulator #6SAE 4.5GPM906709-04-MAXO$85.32
15Maxon 906769-01 - Tee SW Nut BR SAE#8 M-M/F FSMaxon 906769-01 - Tee SW Nut BR SAE#8 M-M/F FS906769-01-MAXO$22.50
16Maxon 906712-02 - Tube End O-Ring #6 3/8 ORFSMaxon 906712-02 - Tube End O-Ring #6 3/8 ORFS906712-02-MAXO$1.30
17Maxon 906712-03 - Tube End O-Ring #8 1/2 ORFSMaxon 906712-03 - Tube End O-Ring #8 1/2 ORFS906712-03-MAXO$1.39
18Maxon 906762-01 - Connector M-M (0.562-18 X 0.812-16 Inches)Maxon 906762-01 - Connector M-M (0.562-18 X 0.812-16 Inches)906762-01-MAXO$5.45
19Maxon 283333-01 - Lock Valve Assembly GPTLR 12VMaxon 283333-01 - Lock Valve Assembly GPTLR 12V283333-01-MAXO$197.49
20Maxon 906763-01 - Connector Elbow .812-16 X .75-16 InchMaxon 906763-01 - Connector Elbow .812-16 X .75-16 Inch906763-01-MAXO$16.34
21Maxon 906707-01 - Elbow NPSC SAE #6 F/S O-R M-MMaxon 906707-01 - Elbow NPSC SAE #6 F/S O-R M-M906707-01-MAXO$8.45
22Maxon 284933-01 - F/S Tube Assembly .5OD P/UP ShortMaxon 284933-01 - F/S Tube Assembly .5OD P/UP Short284933-01-MAXO$49.52
23Maxon 284959-01 - F/S Tube Assembly .38 OD P/DN LongMaxon 284959-01 - F/S Tube Assembly .38 OD P/DN Long284959-01-MAXO$127.47
24Maxon 285179-01 - H/Assembly F/S6-6 M-F GPTLR DownMaxon 285179-01 - H/Assembly F/S6-6 M-F GPTLR Down285179-01-MAXO$37.41

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
