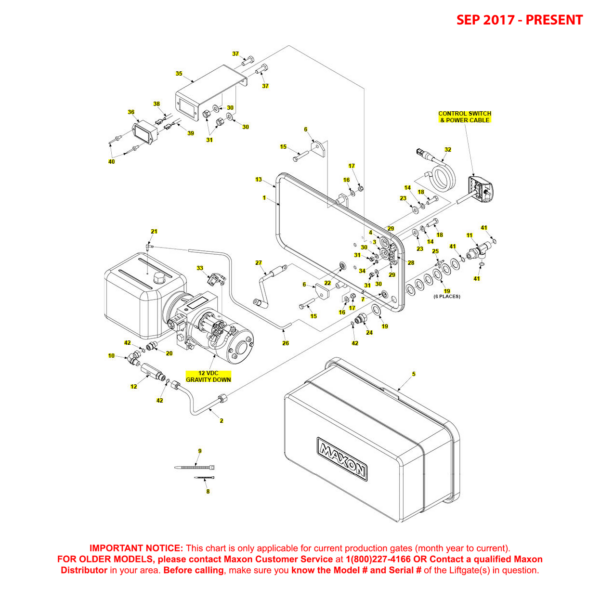

Maxon GPTLR (Sep 2017 - Present) Gravity Down 12VDC Pump Assembly Diagram

Maxon GPTLR (Sep 2017 – Present) Gravity Down 12VDC Pump Assembly Diagram

SKU: GPTLR-SEP17-PRES-GD12VDC-PA-DG Category:
ID Image Title SKU Price Quantity Add to Cart
0Maxon 297317-02G - Pump Assembly G/D GPTLR CC GMaxon 297317-02G - Pump Assembly G/D GPTLR CC G297317-02G-MAXO$1,969.50
1Maxon 297311-03G - Plate Weldment Pump Mount CC G/D GMaxon 297311-03G - Plate Weldment Pump Mount CC G/D G297311-03G-MAXO$112.95
2Maxon 269449-01 - Tube Assembly TE-33 GD PumpMaxon 269449-01 - Tube Assembly TE-33 GD Pump269449-01-MAXO$24.95
3Maxon 266428-04 - Grommet 1.0 Diaph .38 HoleMaxon 266428-04 - Grommet 1.0 Diaph .38 Hole266428-04-MAXO$2.91
4Maxon 266428-12 - Grom 1 DIA PH .374/.31 HolesMaxon 266428-12 - Grom 1 DIA PH .374/.31 Holes266428-12-MAXO$2.75
5Maxon 281038-02 - Horizontal Pump CoverMaxon 281038-02 - Horizontal Pump Cover281038-02-MAXO$47.03
6Maxon 281062-02 - Flat Holder 1.56 LGMaxon 281062-02 - Flat Holder 1.56 LG281062-02-MAXO$6.17
8Maxon 208153 - Plastic Tie 4 Inch - 18 LBMaxon 208153 - Plastic Tie 4 Inch - 18 LB208153-MAXO$0.11
9Maxon 205780 - Tie Plastic 7 Inch (50 LB)Maxon 205780 - Tie Plastic 7 Inch (50 LB)205780-MAXO$0.30
10Maxon 906708-01 - Elbow - NPSC SAE #6 O-R M-F SWMaxon 906708-01 - Elbow - NPSC SAE #6 O-R M-F SW906708-01-MAXO$43.65
11Maxon 906896-01 - Tee Bulkhead Run ORFS SAE #8Maxon 906896-01 - Tee Bulkhead Run ORFS SAE #8906896-01-MAXO$33.99
12Maxon 288518-04 - Valve 4GPM SAE#6 M/F Pressure CompMaxon 288518-04 - Valve 4GPM SAE#6 M/F Pressure Comp288518-04-MAXO$48.44
13Maxon 093203-10 - Neoprene Bulb - Trim Seal - 59.5 Inch LGMaxon 093203-10 - Neoprene Bulb - Trim Seal - 59.5 Inch LG093203-10-MAXO$46.20
14Maxon 902011-4 - Washer Lock 3/8 X .094 ZCMaxon 902011-4 - Washer Lock 3/8 X .094 ZC902011-4-MAXO$0.15
15Maxon 900009-8 - Screw Cap 5/16-18 X 2 Inch GR8 ZCMaxon 900009-8 - Screw Cap 5/16-18 X 2 Inch GR8 ZC900009-8-MAXO$0.60
16Maxon 902013-10 - Washer Flat 5/16 Inch SAE ZCMaxon 902013-10 - Washer Flat 5/16 Inch SAE ZC902013-10-MAXO$0.18
17Maxon 901001 - Nut - Nylon - 5/16-18 ZincMaxon 901001 - Nut - Nylon - 5/16-18 Zinc901001-MAXO$0.18
18Maxon 900014-5 - Screw Hex Cap - .38-16 X 1.25 G8 ZCMaxon 900014-5 - Screw Hex Cap - .38-16 X 1.25 G8 ZC900014-5-MAXO$0.72
19Maxon 902028-14 - Washer Flat 1.437 OD X .884 IDMaxon 902028-14 - Washer Flat 1.437 OD X .884 ID902028-14-MAXO$0.96
20Maxon 905173 - Connector F/S#6 and O-R#6 M-MMaxon 905173 - Connector F/S#6 and O-R#6 M-M905173-MAXO$3.51
21Maxon 906767-01 - Union Elbow .25 Tube O.D.Maxon 906767-01 - Union Elbow .25 Tube O.D.906767-01-MAXO$4.05
23Maxon 902001-1 - Washer Flat .375 ID .125 THKMaxon 902001-1 - Washer Flat .375 ID .125 THK902001-1-MAXO$1.71
24Maxon 906897-01 - Tube End Reducer ORFS 8-6Maxon 906897-01 - Tube End Reducer ORFS 8-6906897-01-MAXO$14.12
25Maxon 906749-01 - Union Tee .25 Tube O.D.Maxon 906749-01 - Union Tee .25 Tube O.D.906749-01-MAXO$6.12
28Maxon 907279-01 - Junction Block - Two StudMaxon 907279-01 - Junction Block - Two Stud907279-01-MAXO$24.69
29Maxon 900000-4 - Hex Bolt 1/4-20 X 1 Inch GR8 ZCMaxon 900000-4 - Hex Bolt 1/4-20 X 1 Inch GR8 ZC900000-4-MAXO$0.23
30Maxon 903412-01 - Flat Washer .25 SSMaxon 903412-01 - Flat Washer .25 SS903412-01-MAXO$0.20
31Maxon 903137-01 - Nut - Nylon Insert Stop - .25-20 SSMaxon 903137-01 - Nut - Nylon Insert Stop - .25-20 SS903137-01-MAXO$0.48
32Maxon 282625-13 - Cable Assembly Lock Valve 16/2 X 56 InchMaxon 282625-13 - Cable Assembly Lock Valve 16/2 X 56 Inch282625-13-MAXO$67.02
33Maxon 297046-01 - Fuse Holder AssemblyMaxon 297046-01 - Fuse Holder Assembly297046-01-MAXO$11.22
34Maxon 903107-06 - Hex Nut 10-24 UNC SSMaxon 903107-06 - Hex Nut 10-24 UNC SS903107-06-MAXO$0.11
35Maxon 297358-01 - Bracket Digital C/CountMaxon 297358-01 - Bracket Digital C/Count297358-01-MAXO$7.98
36Maxon 297269-01 - Digital Cycle CounterMaxon 297269-01 - Digital Cycle Counter297269-01-MAXO$103.50
37Maxon 900004-2 - Screw Cap 1/4-20 X 3/4 Inch GR8 ZCMaxon 900004-2 - Screw Cap 1/4-20 X 3/4 Inch GR8 ZC900004-2-MAXO$0.24
40Maxon 903721-02 - Rivet BL/DM SS .16 X .13-.19 InchMaxon 903721-02 - Rivet BL/DM SS .16 X .13-.19 Inch903721-02-MAXO$0.24
41Maxon 906712-03 - Tube End O-Ring #8 1/2 ORFSMaxon 906712-03 - Tube End O-Ring #8 1/2 ORFS906712-03-MAXO$1.39
42Maxon 906712-02 - Tube End O-Ring #6 3/8 ORFSMaxon 906712-02 - Tube End O-Ring #6 3/8 ORFS906712-02-MAXO$1.30

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
