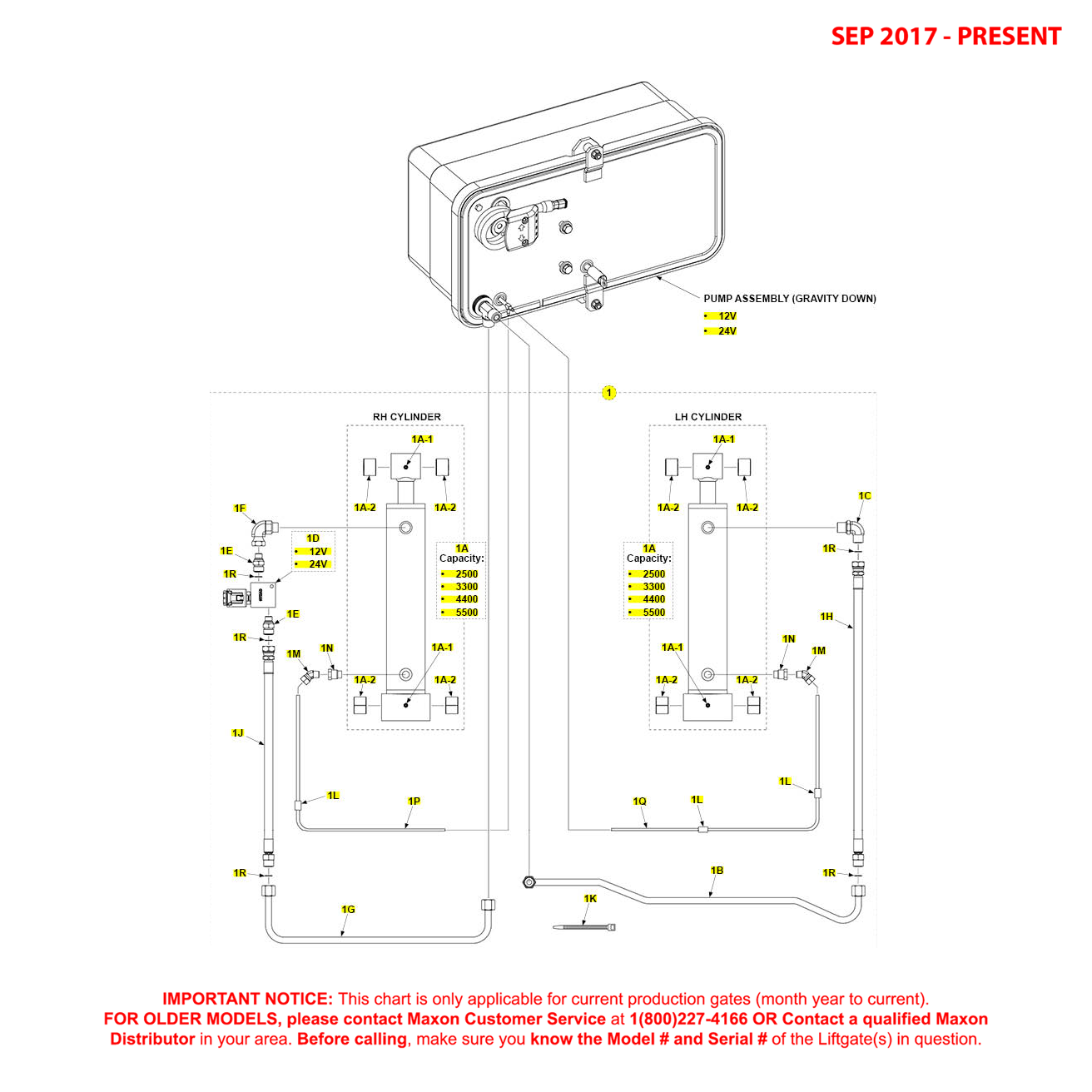

Maxon GPTLR (Sep 2017 - Present) Gravity Down Hydraulic Systems Diagram
Maxon Gptlr (sep 2017 – Present) Gravity Down Hydraulic Systems Diagram

Maxon GPTLR (Sep 2017 – Present) Gravity Down Hydraulic Systems Diagram

SKU: GPTLR-SEP17-PRES-GD-HYDS-DG Category:
ID Image Title SKU Price Quantity Add to Cart
0Maxon 224342 - 1/4 Self Drill Grease FittingMaxon 224342 - 1/4 Self Drill Grease Fitting224342-MAXO$0.45
0Maxon 280990-01 - Hydraulic Cylinder Assembly 2.75 X 11.5 X 1.25R InchMaxon 280990-01 - Hydraulic Cylinder Assembly 2.75 X 11.5 X 1.25R Inch280990-01-MAXO$773.72
0Maxon 281035-01 - Cylinder 3.25 BORE X 12.50 Inch ST S/LB/PULLMaxon 281035-01 - Cylinder 3.25 BORE X 12.50 Inch ST S/LB/PULL281035-01-MAXO$810.11
0Maxon 281040-01 - Cylinder 3.5 Bore X 12.50 Inch ST S/LB/PullMaxon 281040-01 - Cylinder 3.5 Bore X 12.50 Inch ST S/LB/Pull281040-01-MAXO$883.43
0Maxon 283333-01 - Lock Valve Assembly GPTLR 12VMaxon 283333-01 - Lock Valve Assembly GPTLR 12V283333-01-MAXO$197.49
0Maxon 283333-02 - Lock Valve Assembly GPTLR 24VMaxon 283333-02 - Lock Valve Assembly GPTLR 24V283333-02-MAXO$275.27
0Maxon 908046-02 - S/LUBR Bearing 1.25 X 1.38 X 1.00 InchMaxon 908046-02 - S/LUBR Bearing 1.25 X 1.38 X 1.00 Inch908046-02-MAXO$9.36
0Maxon 908047-02 - S/LUBR Bearing 1.38 X 1.50 X 1.00 InchMaxon 908047-02 - S/LUBR Bearing 1.38 X 1.50 X 1.00 Inch908047-02-MAXO$11.13
1Maxon 224370-21 - Hose - Plastic .25 X 44 Inch LGMaxon 224370-21 - Hose - Plastic .25 X 44 Inch LG224370-21-MAXO$6.09
1Maxon 224370-22 - Hose Plastic .25 X 107.0 Inch LGMaxon 224370-22 - Hose Plastic .25 X 107.0 Inch LG224370-22-MAXO$25.19
1Maxon 228012 - Adapter - Straight Thread - 9/16-18M-1/4F STMaxon 228012 - Adapter - Straight Thread - 9/16-18M-1/4F ST228012-MAXO$7.25
1Maxon 263811 - Elbow M 45 DegreeMaxon 263811 - Elbow M 45 Degree263811-MAXO$18.26
1Maxon 296812-01 - H/Assembly F/S 8-8 M-F GPTLR RH-UPMaxon 296812-01 - H/Assembly F/S 8-8 M-F GPTLR RH-UP296812-01-MAXO$44.09
1Maxon 296812-02 - H/Assembly F/S 8-8 M-F GPTLR LH-UPMaxon 296812-02 - H/Assembly F/S 8-8 M-F GPTLR LH-UP296812-02-MAXO$44.58
1Maxon 297303-01 - F/S Tube Assembly .5 OD P/UP LongMaxon 297303-01 - F/S Tube Assembly .5 OD P/UP Long297303-01-MAXO$180.06
1Maxon 297306-01 - F/S Tube Assembly .5 OD P/UP ShortMaxon 297306-01 - F/S Tube Assembly .5 OD P/UP Short297306-01-MAXO$80.24
1Maxon 905322-01 - Plastic Tie 8 Inch (120LB) BlackMaxon 905322-01 - Plastic Tie 8 Inch (120LB) Black905322-01-MAXO$0.50
1Maxon 905350-11 - Tubing - Rubber .25 ID X .5 OD X .75 Inch LGMaxon 905350-11 - Tubing - Rubber .25 ID X .5 OD X .75 Inch LG905350-11-MAXO$2.66
1Maxon 906704-01 - Elbow - NPSC - SEA #8 F/S O-R M-MMaxon 906704-01 - Elbow - NPSC - SEA #8 F/S O-R M-M906704-01-MAXO$34.83
1Maxon 906712-03 - Tube End O-Ring #8 1/2 ORFSMaxon 906712-03 - Tube End O-Ring #8 1/2 ORFS906712-03-MAXO$1.39
1Maxon 906762-01 - Connector M-M (0.562-18 X 0.812-16 Inches)Maxon 906762-01 - Connector M-M (0.562-18 X 0.812-16 Inches)906762-01-MAXO$5.45
1Maxon 906763-01 - Connector Elbow .812-16 X .75-16 InchMaxon 906763-01 - Connector Elbow .812-16 X .75-16 Inch906763-01-MAXO$16.34

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
