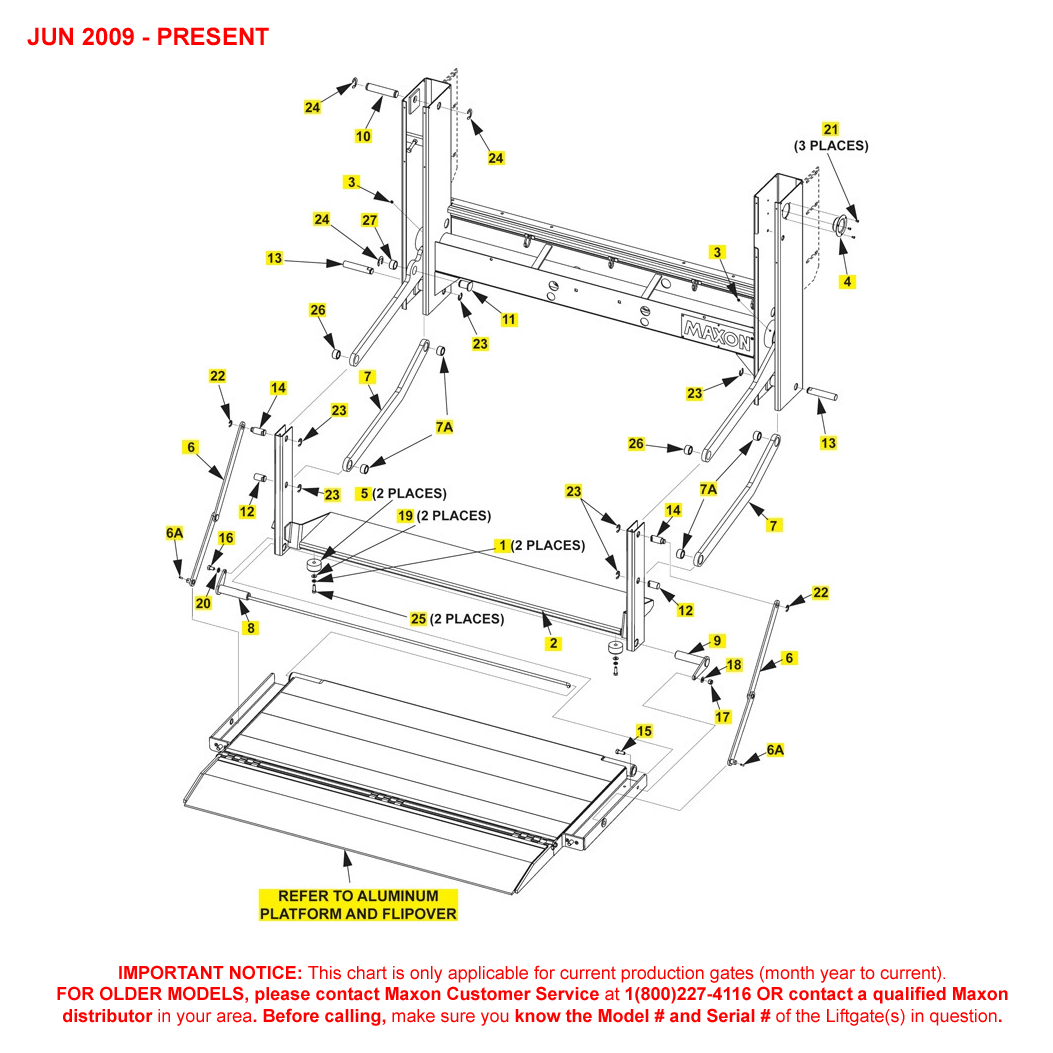

Maxon MM-1300 (Jun 2009 - Present) Aluminum Platform Main Assembly Diagram (2 OF 2)

Maxon MM-1300 (Jun 2009 – Present) Aluminum Platform Main Assembly Diagram (2 OF 2)

SKU: MM-1300-JUN09-PRES-ALPFMA-DG2 Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 902011-3 - Lock Washer 5/16 X 5/64 Inch G8 ZCMaxon 902011-3 - Lock Washer 5/16 X 5/64 Inch G8 ZC902011-3-MAXO$0.11
2Maxon 266358-03 - Threshold Weldment 53.12 Inch WIDE P/UMaxon 266358-03 - Threshold Weldment 53.12 Inch WIDE P/U266358-03-MAXO$802.61
2Maxon 266358-04 - Threshold Weldment 58.22 Inch WIDE P/UMaxon 266358-04 - Threshold Weldment 58.22 Inch WIDE P/U266358-04-MAXO$719.39
3Maxon 224342 - 1/4 Self Drill Grease FittingMaxon 224342 - 1/4 Self Drill Grease Fitting224342-MAXO$0.45
4Maxon 226598 - Plate Recessed SwitchMaxon 226598 - Plate Recessed Switch226598-MAXO$15.87
5Maxon 253516 - Bumper 2 X 1 Inch RubberMaxon 253516 - Bumper 2 X 1 Inch Rubber253516-MAXO$21.08
6Maxon 262589 - Link Assembly PickupMaxon 262589 - Link Assembly Pickup262589-MAXO$78.32
6Maxon 905015 - Pin Roll .188 X 1 Inch ZincMaxon 905015 - Pin Roll .188 X 1 Inch Zinc905015-MAXO$0.24
7Maxon 262595 - Lower Arm Assembly PickupMaxon 262595 - Lower Arm Assembly Pickup262595-MAXO$254.06
8Maxon 262625-01 - Torsion Bar Weldment 54 Inch PickupMaxon 262625-01 - Torsion Bar Weldment 54 Inch Pickup262625-01-MAXO$296.57
8Maxon 264717 - Torsion Bar WeldmentMaxon 264717 - Torsion Bar Weldment264717-MAXO$178.19
9Maxon 262626 - Pin Weldment PickupMaxon 262626 - Pin Weldment Pickup262626-MAXO$83.28
10Maxon 262633 - Pin Cylinder PickupMaxon 262633 - Pin Cylinder Pickup262633-MAXO$17.31
11Maxon 262679 - Pin CylinderMaxon 262679 - Pin Cylinder262679-MAXO$26.81
12Maxon 267657-01 - Pin Lower Arm MM1300Maxon 267657-01 - Pin Lower Arm MM1300267657-01-MAXO$18.26
13Maxon 267657-02 - Pin Lower Arm-Tower MM1300Maxon 267657-02 - Pin Lower Arm-Tower MM1300267657-02-MAXO$28.61
14Maxon 267658-01 - Pin Upper Arm MM1300Maxon 267658-01 - Pin Upper Arm MM1300267658-01-MAXO$28.61
15Maxon 900014-4 - Hex Cap Screw - .38-16 X 1 G8 ZCMaxon 900014-4 - Hex Cap Screw - .38-16 X 1 G8 ZC900014-4-MAXO$0.71
16Maxon 900014-12 - Screw Hex Cap 0.38-16 X .63 Inch G8 ZCMaxon 900014-12 - Screw Hex Cap 0.38-16 X .63 Inch G8 ZC900014-12-MAXO$0.74
17Maxon 901002 - Nut Nylon 3/8-16 ZincMaxon 901002 - Nut Nylon 3/8-16 Zinc901002-MAXO$0.36
18Maxon 902001-2 - Flat Washer 3/8 X 1/16 Inch ZCMaxon 902001-2 - Flat Washer 3/8 X 1/16 Inch ZC902001-2-MAXO$0.18
19Maxon 902002-1 - Washer Flat 5/16 X 1/16 Inch ZCMaxon 902002-1 - Washer Flat 5/16 X 1/16 Inch ZC902002-1-MAXO$0.11
20Maxon 902011-4 - Washer Lock 3/8 X .094 ZCMaxon 902011-4 - Washer Lock 3/8 X .094 ZC902011-4-MAXO$0.15
21Maxon 904005-1 - Rivet - Blind Stainless Steel Dome .187 X .44 InchMaxon 904005-1 - Rivet - Blind Stainless Steel Dome .187 X .44 Inch904005-1-MAXO$0.48
22Maxon 905138-08 - E Ring EXT Series 5133 .625Maxon 905138-08 - E Ring EXT Series 5133 .625905138-08-MAXO$1.05
23Maxon 905138-10 - E Ring EXT Series 5133 .750Maxon 905138-10 - E Ring EXT Series 5133 .750905138-10-MAXO$2.84
24Maxon 905138-13 - E Ring EXT Series 5133 1.00Maxon 905138-13 - E Ring EXT Series 5133 1.00905138-13-MAXO$2.46
25Maxon 900009-2 - Screw Cap .31-18 X 1 Inch GR8 ZCMaxon 900009-2 - Screw Cap .31-18 X 1 Inch GR8 ZC900009-2-MAXO$0.44
26Maxon 905139-01 - Bearing Bronze .878 X 3/4 (P/U)Maxon 905139-01 - Bearing Bronze .878 X 3/4 (P/U)905139-01-MAXO$9.71
27Maxon 905139-02 - Bearing Bronze 1.003 X 3/4 P/UMaxon 905139-02 - Bearing Bronze 1.003 X 3/4 P/U905139-02-MAXO$9.14

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
