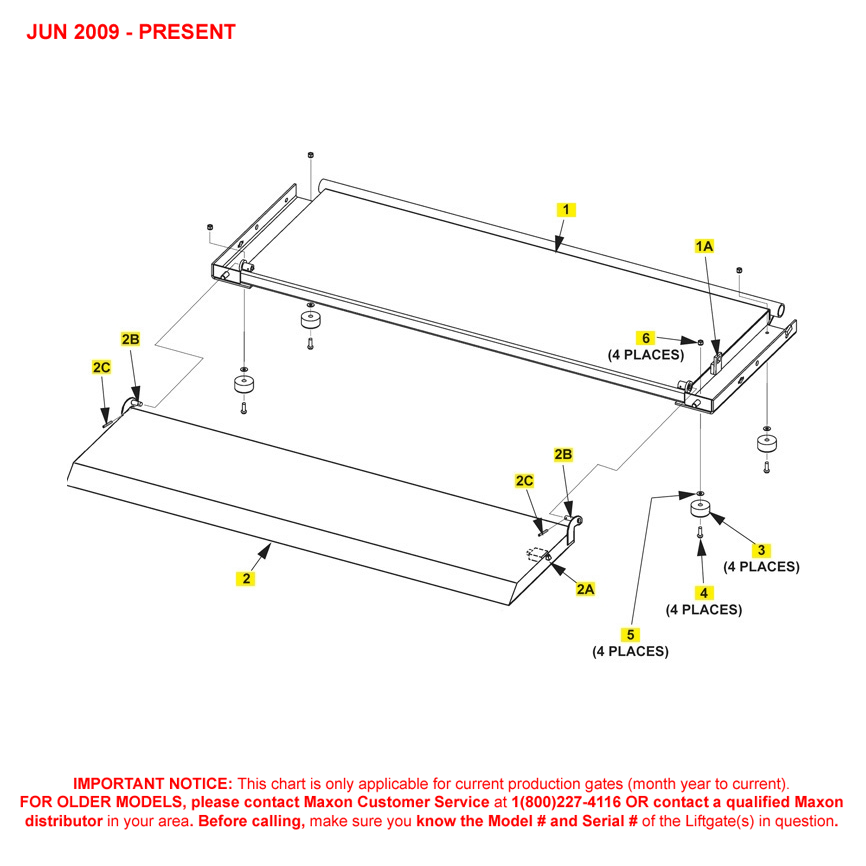

Maxon MM-1300 (Jun 2009 - Present) Steel Platform Main Assembly Diagram (1 OF 2) From ITEParts.com

ID	Title	SKU	Price
1	Maxon 262602-01 - Platform 49.22 Inch LG	262602-01-MAXO	$1,238.25
1	Maxon 262620 - Latch Catch Weldment Pickup	262620-MAXO	$18.12
1	Maxon 264706 - Platform Weldment	264706-MAXO	$1,565.85
2	Maxon 262670 - Latch Assembly Pickup	262670-MAXO	$45.18
2	Maxon 263529 - Pin 1/2 DIA X 1.80 LG	263529-MAXO	$20.88
2	Maxon 264711 - F/O 12 Inch Ramp	264711-MAXO	$749.24
3	Maxon 905314-04 - Bumper CYL w/ Washer DIA 1.0 X .5	905314-04-MAXO	$6.45
4	Maxon 900722-05 - Screw BTN 10-24 X .75 SS	900722-05-MAXO	$0.23
5	Maxon 902000-6 - Washer Flat #10.063 Inch THK	902000-6-MAXO	$0.99
6	Maxon 901003 - Nut Nylon 10-24 2B ZC	901003-MAXO	$0.11

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

LOCATE YOUR SERIAL PLATE on your Liftgate.
LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
