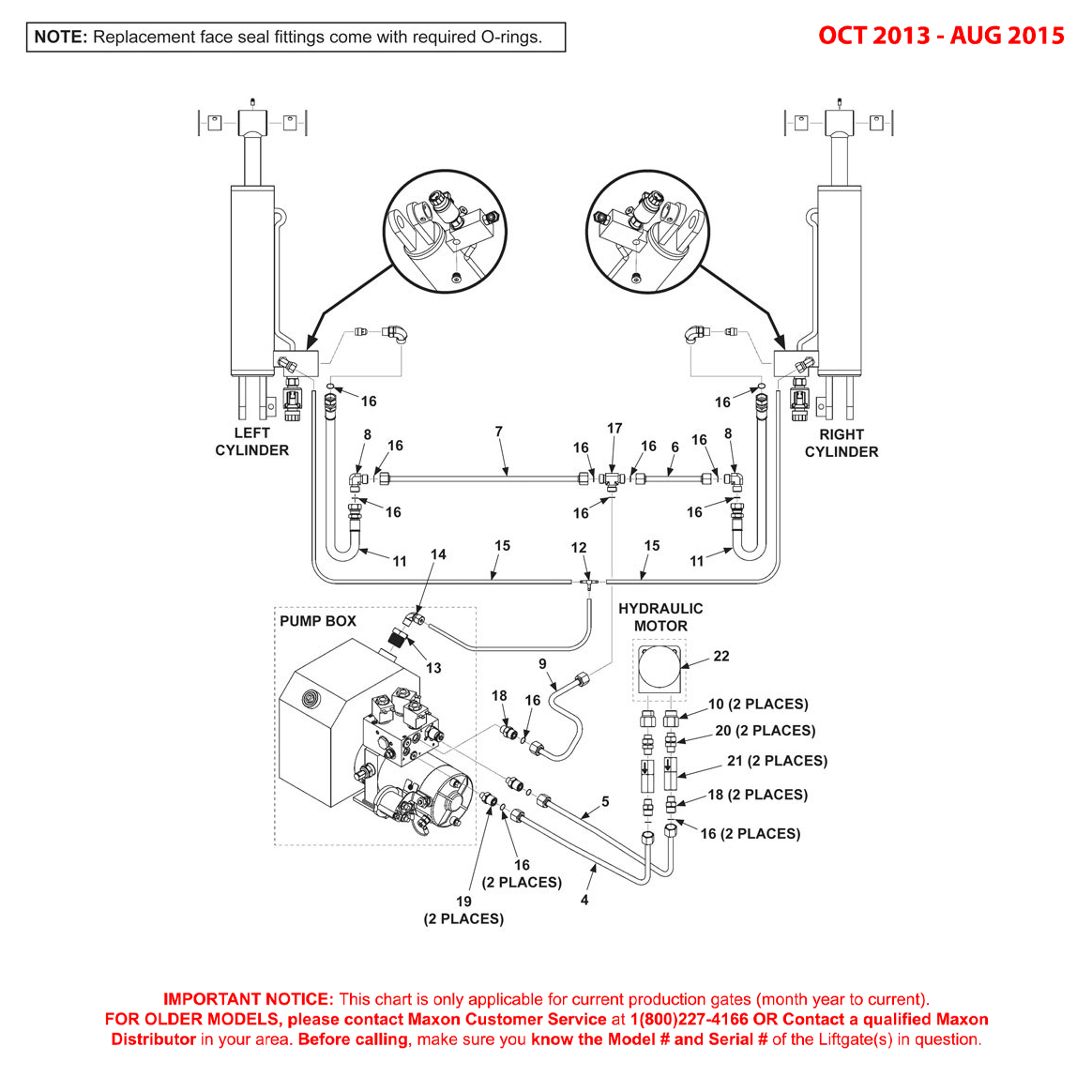

Maxon RA (Oct 2013 - Aug 2015) 48 Or 60-Inch Platform And Flip Ramp Assembly Diagram From ITEParts.com

ID	Title	SKU	Price
4	Maxon 284412-03 - HYD In/Out Line	284412-03-MAXO	$53.75
5	Maxon 284392-01 - HYD Line Assembly In/Out	284392-01-MAXO	$48.83
5	Maxon 284392-03 - HYD Line Assembly In/Out	284392-03-MAXO	$54.78
6	Maxon 284417-03 - HYD Line Cylinder Assembly LH 82 Inch	284417-03-MAXO	$29.60
7	Maxon 284417-06 - HYD Line Cylinder Assembly RH 82 Inch	284417-06-MAXO	$71.67
8	Maxon 906829-01 - Union Elbow F/S #6M-#6M 90DEG	906829-01-MAXO	$6.51
9	Maxon 284414-01 - HYD Line Tee Assembly	284414-01-MAXO	$33.30
10	Maxon 906812-01 - STR THD #10 and #6 ORB M/F RFCR	906812-01-MAXO	$7.56
11	Maxon 284418-01 - Hose Assembly .375HP SAE#6 F-F	284418-01-MAXO	$32.45
12	Maxon 906749-01 - Union Tee .25 Tube O.D.	906749-01-MAXO	$6.12
14	Maxon 202406 - Elbow Brass - 1/4 X 1/4 Inch	202406-MAXO	$17.46
15	Maxon 224370 - Plastic Hose 1/4 Inch	224370-MAXO	$1.83
16	Maxon 906712-02 - Tube End O-Ring #6 3/8 ORFS	906712-02-MAXO	$1.30
17	Maxon 905150 - Tee Union 3/8 FS Male 6-JLO	905150-MAXO	$12.77
18	Maxon 905173 - Connector F/S#6 and O-R#6 M-M	905173-MAXO	$3.51
19	Maxon 906759-01 - Connector #6FS #4OR M-M	906759-01-MAXO	$16.14
20	Maxon 906786-01 - Union STR SAE #6 M-M O-Ring ADJ	906786-01-MAXO	$6.75
21	Maxon 906709-07 - Valve Flow Regulator #6 SAE 1.25GPM	906709-07-MAXO	$85.59
22	Maxon 288226-01 - Motor HYD 9.4 DISPL	288226-01-MAXO	$740.96

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

LOCATE YOUR SERIAL PLATE on your Liftgate.
LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
