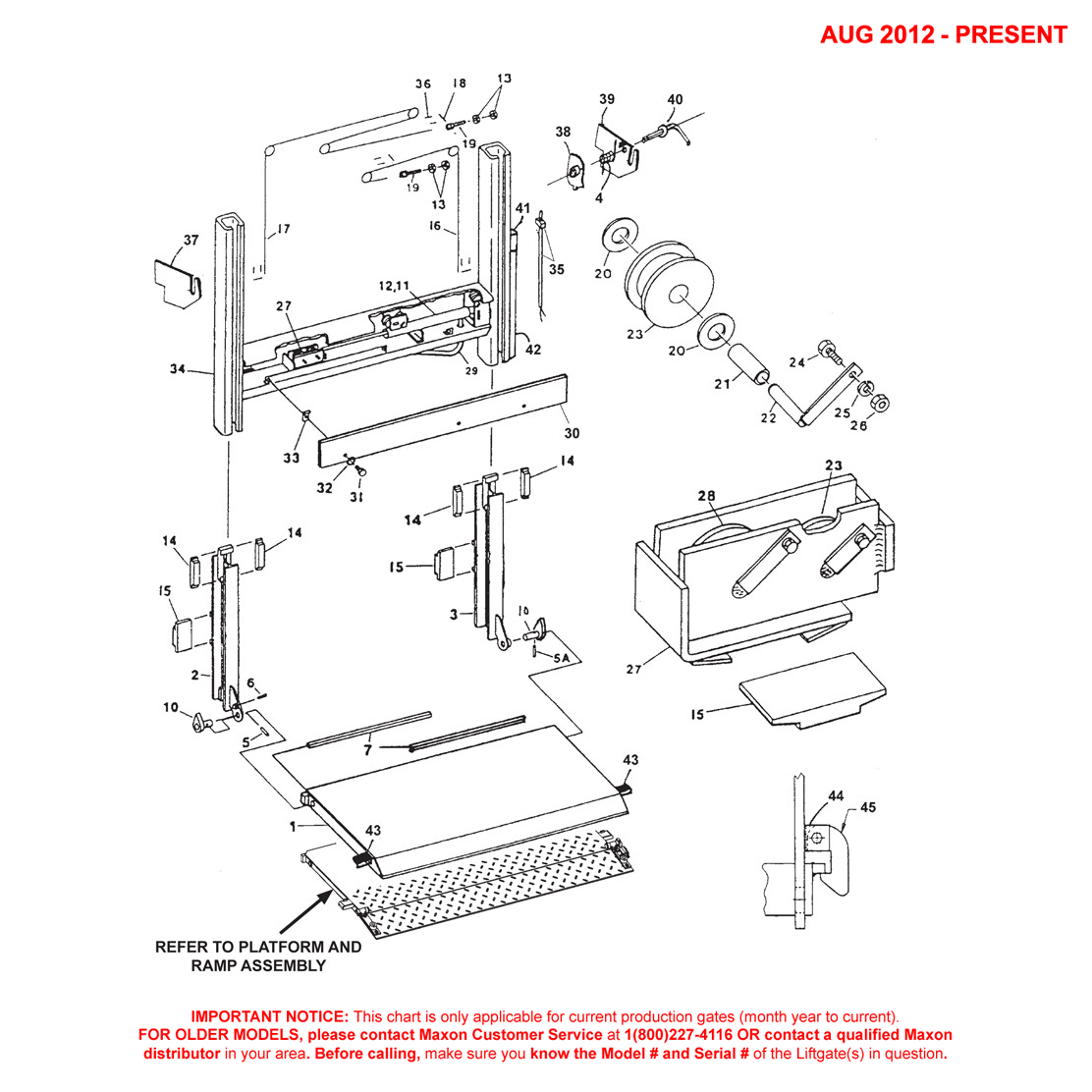

Maxon RCM (Aug 2012 - Present) 1600C Main Assembly Diagram (1 OF 2)
Maxon Rcm (aug 2012 – Present) 1600c Main Assembly Diagram (1 Of 2)

Maxon RCM (Aug 2012 – Present) 1600C Main Assembly Diagram (1 OF 2)

SKU: RCM-AUG12-PRES-1600C-MA-DG1 Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 252984-01 - P/F Weldment (36+6) X 85 Inch for 90 InchMaxon 252984-01 - P/F Weldment (36+6) X 85 Inch for 90 Inch252984-01-MAXO$1,897.35
1Maxon 252984-02 - P/F Weldment (36+6) x 91 Inch for 96 InchMaxon 252984-02 - P/F Weldment (36+6) x 91 Inch for 96 Inch252984-02-MAXO$1,938.30
2Maxon 226852-01 - Runner Assembly RCM20A LHMaxon 226852-01 - Runner Assembly RCM20A LH226852-01-MAXO$406.80
3Maxon 226852-02 - Runner Assembly RCM20A RHMaxon 226852-02 - Runner Assembly RCM20A RH226852-02-MAXO$399.06
4Maxon 252460 - Spring Torsion .095 X 3.5 LH 302SSMaxon 252460 - Spring Torsion .095 X 3.5 LH 302SS252460-MAXO$10.85
5Maxon 221416 - Pin Roll 3/8 Inch X 2 Inch ZC (Use 904717-06)Maxon 221416 - Pin Roll 3/8 Inch X 2 Inch ZC (Use 904717-06)221416-MAXO$0.84
5Maxon 221497 - Pin Roll 3/8 X 1-1/2 ZincMaxon 221497 - Pin Roll 3/8 X 1-1/2 Zinc221497-MAXO$1.52
6Maxon 224576 - Screw Socket 1/2-20 X 2 Inch AlloyMaxon 224576 - Screw Socket 1/2-20 X 2 Inch Alloy224576-MAXO$10.68
7Maxon 252999 - Torsion Bar .5 X .5 X 66 Inch 4140 AlloyMaxon 252999 - Torsion Bar .5 X .5 X 66 Inch 4140 Alloy252999-MAXO$227.49
10Maxon 224470 - Pin Hinge Weldment (RCMA/AB)Maxon 224470 - Pin Hinge Weldment (RCMA/AB)224470-MAXO$62.64
12Maxon 225823 - Seal Kit HCE 2.5 X 28 InchMaxon 225823 - Seal Kit HCE 2.5 X 28 Inch225823-MAXO$11.66
14Maxon 226772 - Slider Pad 0.63 Inch X 6 InchMaxon 226772 - Slider Pad 0.63 Inch X 6 Inch226772-MAXO$25.04
15Maxon 227350 - Slider Pad 2 X 6Maxon 227350 - Slider Pad 2 X 6227350-MAXO$28.58
16Maxon 226916-01 - Leaf Chain X 132 InchMaxon 226916-01 - Leaf Chain X 132 Inch226916-01-MAXO$409.19
17Maxon 226916-02 - Leaf Chain X 164 InchMaxon 226916-02 - Leaf Chain X 164 Inch226916-02-MAXO$492.51
17Maxon 226916-03 - Leaf Chain X 158 InchMaxon 226916-03 - Leaf Chain X 158 Inch226916-03-MAXO$476.91
18Maxon 226854-03 - Pin End Fitting RCM-20AMaxon 226854-03 - Pin End Fitting RCM-20A226854-03-MAXO$21.21
19Maxon 226931-01 - Chain Anchor RCM20AMaxon 226931-01 - Chain Anchor RCM20A226931-01-MAXO$69.90
20Maxon 224337 - Thrust BEAR 7/8 X 1.5 X 1/8 Inch BronzeMaxon 224337 - Thrust BEAR 7/8 X 1.5 X 1/8 Inch Bronze224337-MAXO$6.03
21Maxon 224338 - Bushing Bronze 5/8 X 7/8 X 1-1/4 InchMaxon 224338 - Bushing Bronze 5/8 X 7/8 X 1-1/4 Inch224338-MAXO$5.79
22Maxon 223670 - Shaft WeldmentMaxon 223670 - Shaft Weldment223670-MAXO$11.30
23Maxon 223672-02 - Sheave Assembly RCMAMaxon 223672-02 - Sheave Assembly RCMA223672-02-MAXO$107.75

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
