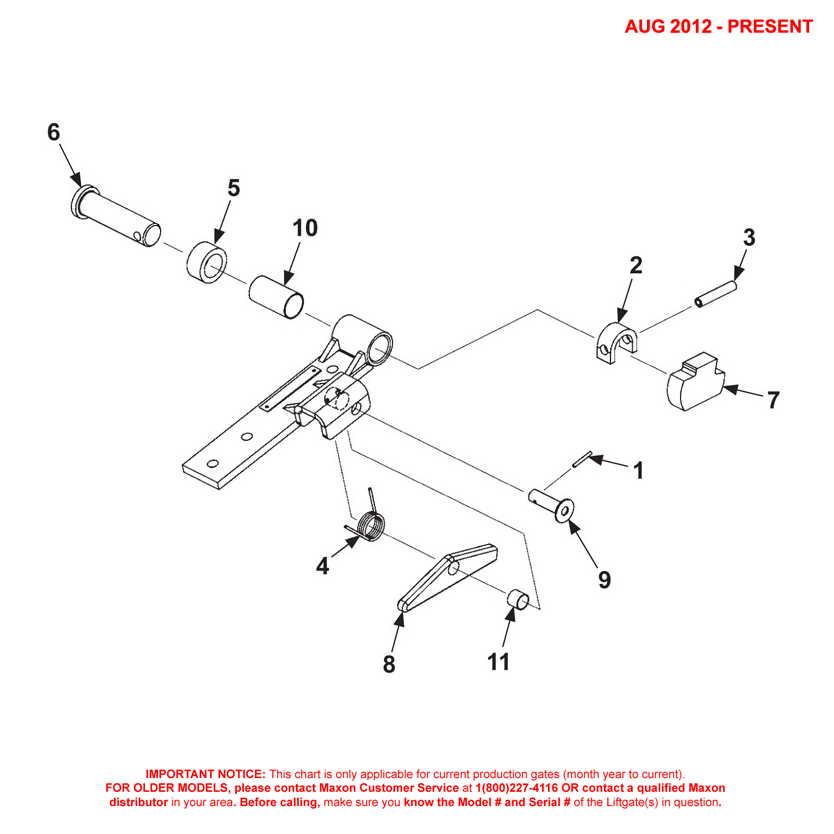

Maxon RCM (Aug 2012 - Present) Right Hand Hinge Assembly Diagram
Maxon Rcm (aug 2012 – Present) Right Hand Hinge Assembly Diagram

Maxon RCM (Aug 2012 – Present) Right Hand Hinge Assembly Diagram

SKU: RCM-AUG12-PRES-RHHA-DG Category:
ID Image Title SKU Price Quantity Add to Cart
3Maxon 221416 - Pin Roll 3/8 Inch X 2 Inch ZC (Use 904717-06)Maxon 221416 - Pin Roll 3/8 Inch X 2 Inch ZC (Use 904717-06)221416-MAXO$0.84
4Maxon 252460 - Spring Torsion .095 X 3.5 LH 302SSMaxon 252460 - Spring Torsion .095 X 3.5 LH 302SS252460-MAXO$10.85
5Maxon 253517 - Bushing X 3/4 InchMaxon 253517 - Bushing X 3/4 Inch253517-MAXO$8.37
6Maxon 253528 - PinMaxon 253528 - Pin253528-MAXO$42.69
8Maxon 253537 - Locking Arm Weldment LHMaxon 253537 - Locking Arm Weldment LH253537-MAXO$55.53
9Maxon 253538 - Pin WeldmentMaxon 253538 - Pin Weldment253538-MAXO$10.26
10Maxon 253541 - Bearing Self Lube 1X2Maxon 253541 - Bearing Self Lube 1X2253541-MAXO$22.46
11Maxon 253542 - Bearing Self Lube 1/2 X 1/2 InchMaxon 253542 - Bearing Self Lube 1/2 X 1/2 Inch253542-MAXO$13.04

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
