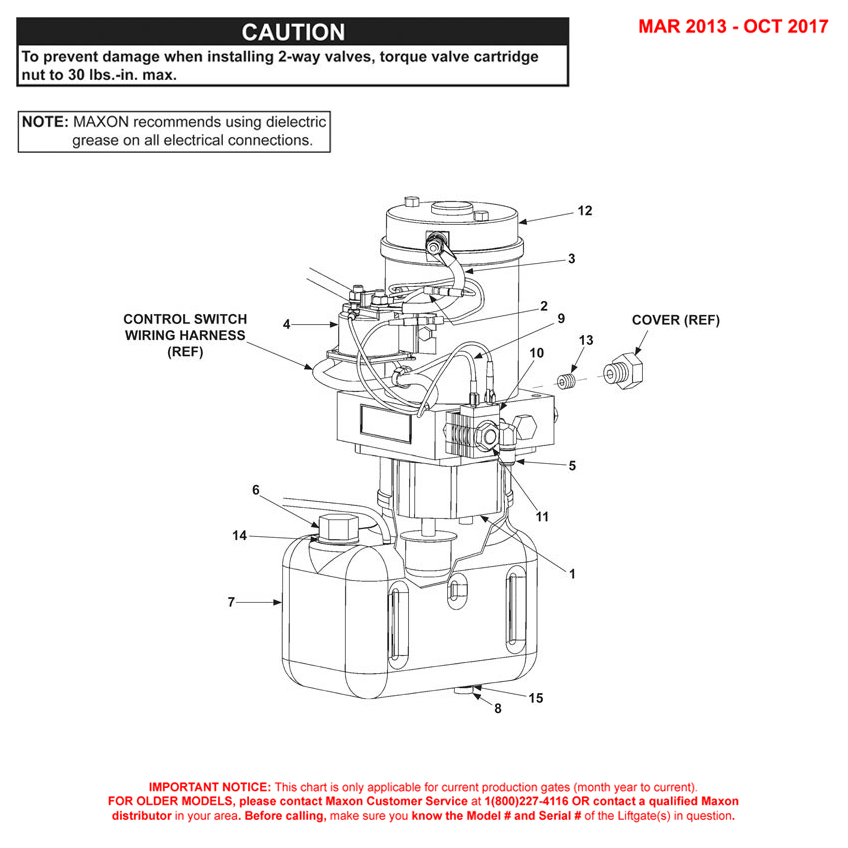

Maxon TE-20 (Mar 2013 - Oct 2017) Gravity Down 24VDC Power Unit Diagram
Maxon Te 20 (mar 2013 – Oct 2017) Gravity Down 24vdc Power Unit Diagram

Maxon TE-20 (Mar 2013 – Oct 2017) Gravity Down 24VDC Power Unit Diagram

SKU: TE20-MAR13-OCT17-GD24VDC-PU-DG Category:
ID Image Title SKU Price Quantity Add to Cart
3Maxon 280404 - Cable AssemblyMaxon 280404 - Cable Assembly280404-MAXO$9.51
4Maxon 281571-01 - 24VDC NC 2W2P SOL Valve DBL SPMaxon 281571-01 - 24VDC NC 2W2P SOL Valve DBL SP281571-01-MAXO$138.83
5Maxon 905152 - Elbow - 90 Degree O-Ring SAE6-JIC37 #6Maxon 905152 - Elbow - 90 Degree O-Ring SAE6-JIC37 #6905152-MAXO$22.58
6Maxon 280806-01 - Breather FillerMaxon 280806-01 - Breather Filler280806-01-MAXO$6.32
7Maxon 267733-11 - 3 QT Reservoir VERT 8 Inch H w/ VentMaxon 267733-11 - 3 QT Reservoir VERT 8 Inch H w/ Vent267733-11-MAXO$87.77
8Maxon 908017-01 - Drain Port PlugMaxon 908017-01 - Drain Port Plug908017-01-MAXO$3.36
9Maxon 280416 - Wire AssemblyMaxon 280416 - Wire Assembly280416-MAXO$6.20
11Maxon 906719-01 - Valve N.C. 2W2PMaxon 906719-01 - Valve N.C. 2W2P906719-01-MAXO$98.97
12Maxon 281573-01 - 24VDC 2-Terminal MotorMaxon 281573-01 - 24VDC 2-Terminal Motor281573-01-MAXO$400.55
13Maxon 906737-01 - Cartridge Relief ValveMaxon 906737-01 - Cartridge Relief Valve906737-01-MAXO$39.92
14Maxon 908016-01 - Rubber Grommet .60 IDMaxon 908016-01 - Rubber Grommet .60 ID908016-01-MAXO$2.69
15Maxon 908018-01 - Rubber Grommet .31 IDMaxon 908018-01 - Rubber Grommet .31 ID908018-01-MAXO$1.94

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
