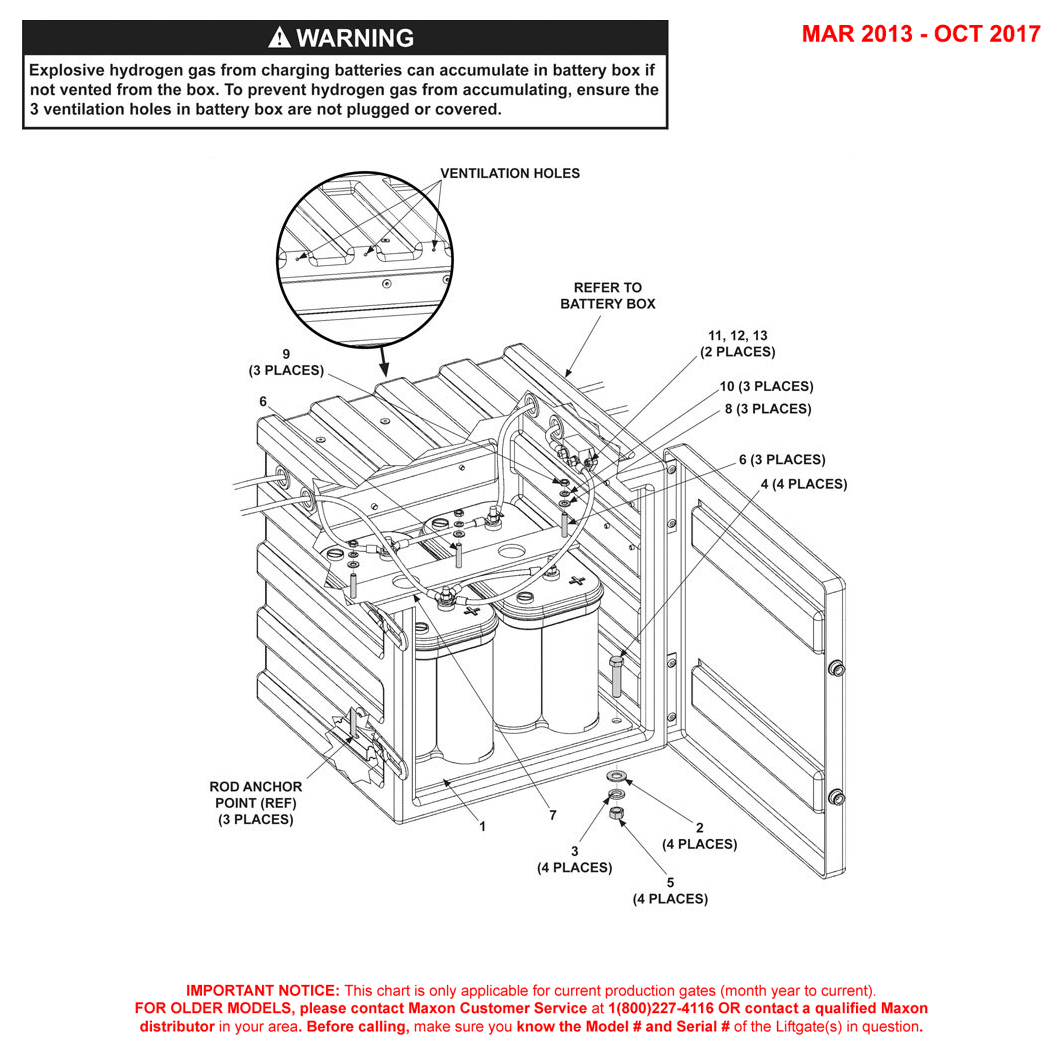

Maxon TE-20 (Mar 2013 - Oct 2017) Optional Battery Box Assembly Diagram

Maxon TE-20 (Mar 2013 – Oct 2017) Optional Battery Box Assembly Diagram

SKU: TE20-MAR13-OCT17-OBBA-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 269535-01G - Plate Weldment BATT Mount GALVMaxon 269535-01G - Plate Weldment BATT Mount GALV269535-01G-MAXO$168.27
2Maxon 902013-14 - Washer Flat 9/16 Inch SAE ZCMaxon 902013-14 - Washer Flat 9/16 Inch SAE ZC902013-14-MAXO$0.48
3Maxon 902011-7 - Washer Lock .563 .141 THKMaxon 902011-7 - Washer Lock .563 .141 THK902011-7-MAXO$0.26
4Maxon 900033-6 - Screw Cap .5-20 X 2.25 Inch GR8 ZCMaxon 900033-6 - Screw Cap .5-20 X 2.25 Inch GR8 ZC900033-6-MAXO$1.77
5Maxon 901011-10 - Nut Hex Head .500-20 UNF-2BMaxon 901011-10 - Nut Hex Head .500-20 UNF-2B901011-10-MAXO$0.44
6Maxon 227722-01 - Rod L-Shape .31 X 11.5 Inch BAT HLDNMaxon 227722-01 - Rod L-Shape .31 X 11.5 Inch BAT HLDN227722-01-MAXO$6.23
7Maxon 250479 - Bracket Battery X 15-3/8 InchMaxon 250479 - Bracket Battery X 15-3/8 Inch250479-MAXO$19.58
8Maxon 902013-10 - Washer Flat 5/16 Inch SAE ZCMaxon 902013-10 - Washer Flat 5/16 Inch SAE ZC902013-10-MAXO$0.18
9Maxon 901005 - Nut Hex 5/16-18 Inch GR8 ZCMaxon 901005 - Nut Hex 5/16-18 Inch GR8 ZC901005-MAXO$0.17
10Maxon 902011-3 - Lock Washer 5/16 X 5/64 Inch G8 ZCMaxon 902011-3 - Lock Washer 5/16 X 5/64 Inch G8 ZC902011-3-MAXO$0.11
11Maxon 902013-09 - Washer 1/4 Inch Zinc - Same 030564Maxon 902013-09 - Washer 1/4 Inch Zinc - Same 030564902013-09-MAXO$0.11
13Maxon 901000 - Nylon Nut 1/4-20 Inch ZincMaxon 901000 - Nylon Nut 1/4-20 Inch Zinc901000-MAXO$0.15

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
