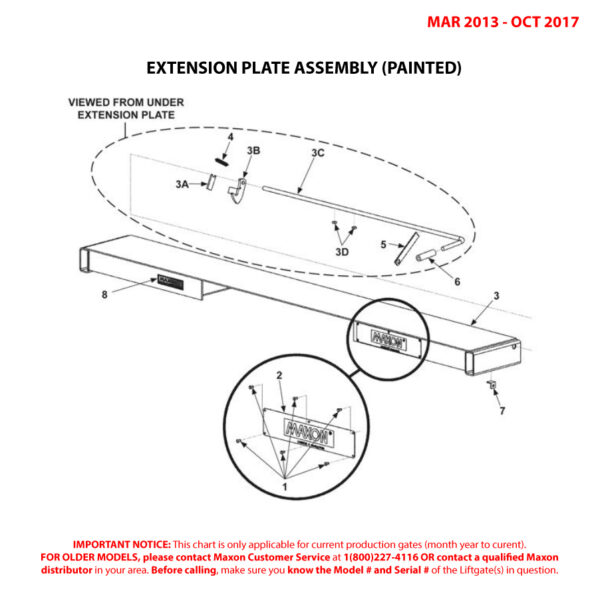

Maxon TE-20 (Mar 2013 - Oct 2017) Painted Extension Plate Assembly Diagram

Maxon TE-20 (Mar 2013 – Oct 2017) Painted Extension Plate Assembly Diagram

SKU: TE20-MAR13-OCT17-PEPA-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 207644 - Rivet BLND 0.19 X.58 DomeMaxon 207644 - Rivet BLND 0.19 X.58 Dome207644-MAXO$0.32
2Maxon 266705-01 - Plate Maxon - 3.25 X 15 BLKMaxon 266705-01 - Plate Maxon - 3.25 X 15 BLK266705-01-MAXO$3.00
3Maxon 201561 - Flat X 1/2 Inch (1/4X1/2)Maxon 201561 - Flat X 1/2 Inch (1/4X1/2)201561-MAXO$2.30
3Maxon 201606 - Handle Hook Release 5/8 X 52-3/4 InchMaxon 201606 - Handle Hook Release 5/8 X 52-3/4 Inch201606-MAXO$24.53
3Maxon 215341 - Safety Hook WeldmentMaxon 215341 - Safety Hook Weldment215341-MAXO$37.71
3Maxon 215342 - Spring Lever Extension PlateMaxon 215342 - Spring Lever Extension Plate215342-MAXO$6.09
4Maxon 215345 - Spring Extension .093 X 2.50Maxon 215345 - Spring Extension .093 X 2.50215345-MAXO$10.25
5Maxon 203417 - Rental Lock Bracket X 6-1/2 InchMaxon 203417 - Rental Lock Bracket X 6-1/2 Inch203417-MAXO$9.56
7Maxon 203570 - Inner Bracket X 1 InchMaxon 203570 - Inner Bracket X 1 Inch203570-MAXO$3.95

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
