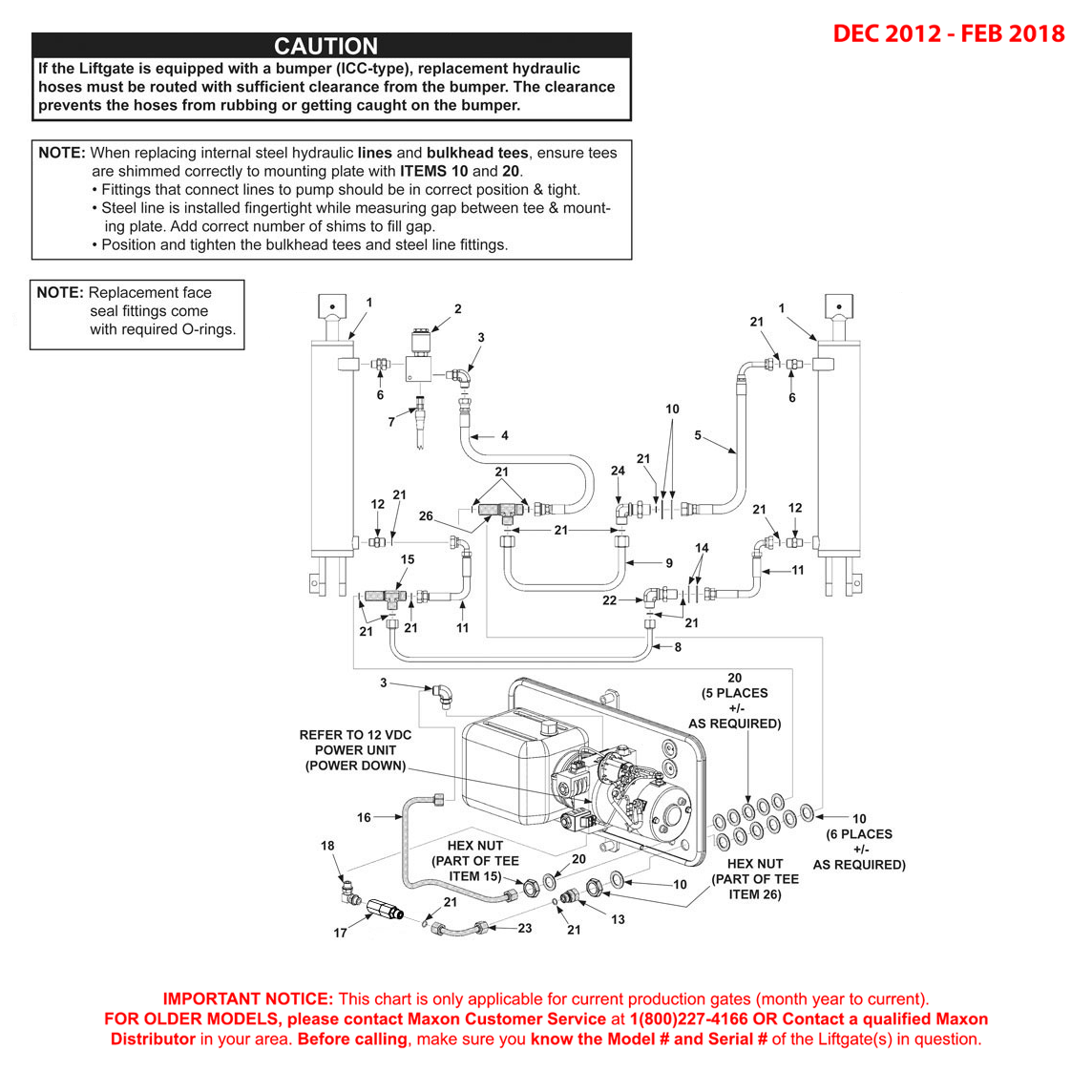

Maxon TE-33 (Dec 2012 - Feb 2018) Power Down Hydraulic Components Diagram
Maxon Te 33 (dec 2012 – Feb 2018) Power Down Hydraulic Components Diagram

Maxon TE-33 (Dec 2012 – Feb 2018) Power Down Hydraulic Components Diagram

SKU: TE33-DEC12-FEB18-PD-HYDC-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 284947-01 - Hydraulic Cylinder D/ACT 2.75BX12STX1RD LMaxon 284947-01 - Hydraulic Cylinder D/ACT 2.75BX12STX1RD L284947-01-MAXO$782.87
1Maxon 284947-02 - Hydraulic Cylinder D/Act 2.75BX12STX1RD RMaxon 284947-02 - Hydraulic Cylinder D/Act 2.75BX12STX1RD R284947-02-MAXO$782.87
2Maxon 282999-01 - Lock Valve Assembly 12VMaxon 282999-01 - Lock Valve Assembly 12V282999-01-MAXO$133.85
3Maxon 906707-01 - Elbow NPSC SAE #6 F/S O-R M-MMaxon 906707-01 - Elbow NPSC SAE #6 F/S O-R M-M906707-01-MAXO$8.45
4Maxon 285027-01 - H/Assembly 3/8HP ORFS 6-8 FEM 25 Inch LGMaxon 285027-01 - H/Assembly 3/8HP ORFS 6-8 FEM 25 Inch LG285027-01-MAXO$43.37
6Maxon 906786-01 - Union STR SAE #6 M-M O-Ring ADJMaxon 906786-01 - Union STR SAE #6 M-M O-Ring ADJ906786-01-MAXO$6.75
7Maxon 282625-02 - Cable Assembly L/Valve 16/2 X 36 InchMaxon 282625-02 - Cable Assembly L/Valve 16/2 X 36 Inch282625-02-MAXO$72.36
8Maxon 285655-01 - F/S Tube Assembly TE-33Maxon 285655-01 - F/S Tube Assembly TE-33285655-01-MAXO$73.47
9Maxon 285656-01 - F/S Tube Assembly TE-33Maxon 285656-01 - F/S Tube Assembly TE-33285656-01-MAXO$82.16
10Maxon 902028-14 - Washer Flat 1.437 OD X .884 IDMaxon 902028-14 - Washer Flat 1.437 OD X .884 ID902028-14-MAXO$0.96
12Maxon 228012 - Adapter - Straight Thread - 9/16-18M-1/4F STMaxon 228012 - Adapter - Straight Thread - 9/16-18M-1/4F ST228012-MAXO$7.25
13Maxon 906897-01 - Tube End Reducer ORFS 8-6Maxon 906897-01 - Tube End Reducer ORFS 8-6906897-01-MAXO$14.12
15Maxon 906896-01 - Tee Bulkhead Run ORFS SAE #8Maxon 906896-01 - Tee Bulkhead Run ORFS SAE #8906896-01-MAXO$33.99
16Maxon 285653-01 - F/S Tube Assembly TE-33 PDPMaxon 285653-01 - F/S Tube Assembly TE-33 PDP285653-01-MAXO$29.33
17Maxon 288518-03 - Valve 3GPM SAE#6 M/F Pressure COMPMaxon 288518-03 - Valve 3GPM SAE#6 M/F Pressure COMP288518-03-MAXO$47.03
18Maxon 906708-01 - Elbow - NPSC SAE #6 O-R M-F SWMaxon 906708-01 - Elbow - NPSC SAE #6 O-R M-F SW906708-01-MAXO$43.65
19Maxon 905173 - Connector F/S#6 and O-R#6 M-MMaxon 905173 - Connector F/S#6 and O-R#6 M-M905173-MAXO$3.51
20Maxon 902028-12 - Washer Flat - 1.250 OD X .757 IDMaxon 902028-12 - Washer Flat - 1.250 OD X .757 ID902028-12-MAXO$0.77
21Maxon 906712-02 - Tube End O-Ring #6 3/8 ORFSMaxon 906712-02 - Tube End O-Ring #6 3/8 ORFS906712-02-MAXO$1.30
22Maxon 905162 - Elbow Bulkhead Union F/S #6Maxon 905162 - Elbow Bulkhead Union F/S #6905162-MAXO$38.60
23Maxon 906858-01 - Elbow Bulkhead Union F/S #8Maxon 906858-01 - Elbow Bulkhead Union F/S #8906858-01-MAXO$33.99

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
