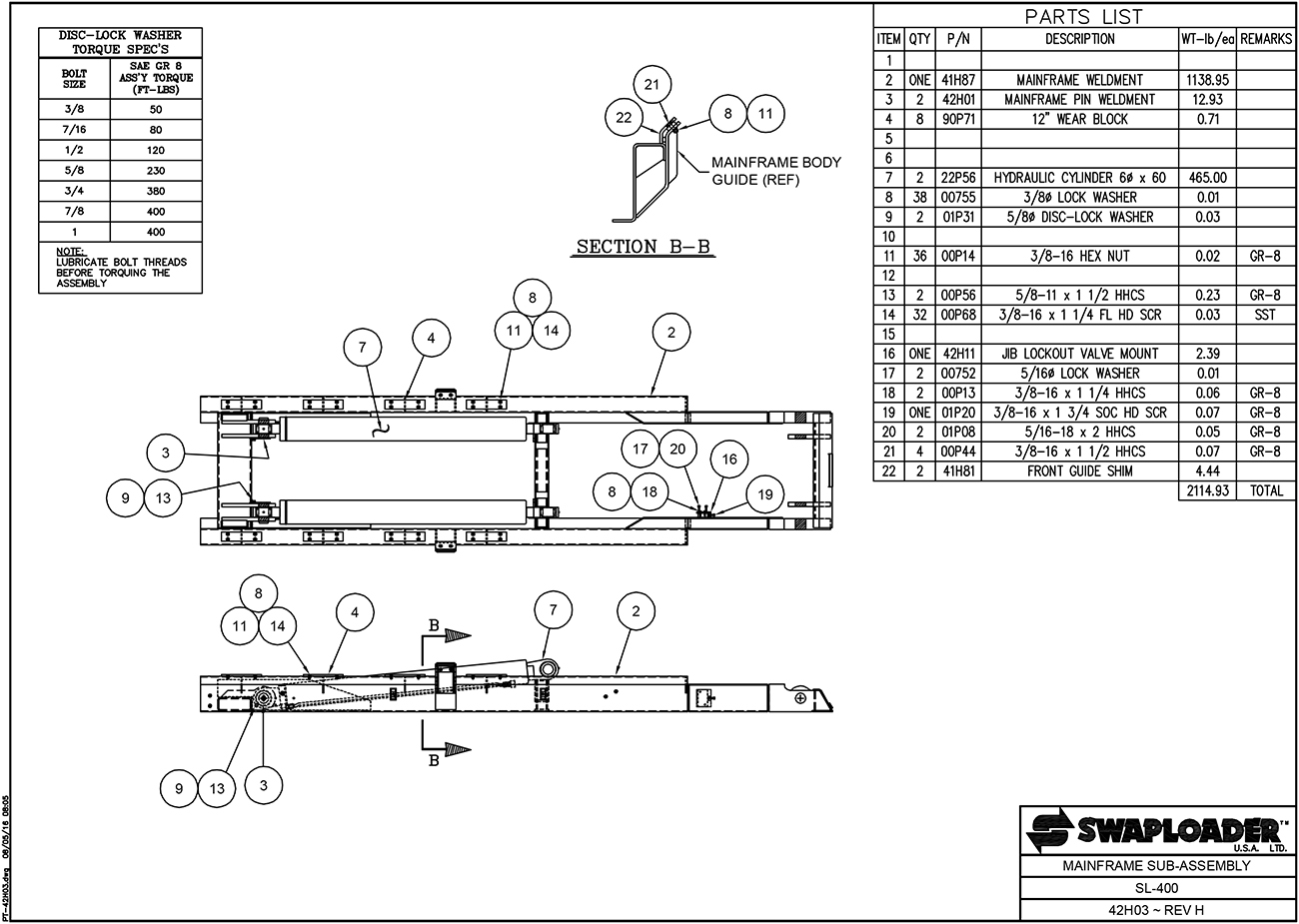

SL-400 Mainframe Sub-Assembly Diagram
Sl 400 Mainframe Sub Assembly Diagram

SL-400 Mainframe Sub-Assembly Diagram

SKU: SL-400-MFSA-DG Category: Brand:
ID Image Title SKU Price Quantity Add to Cart
2Swaploader 41H87 - Main Frame Wdmt SL-330/400Swaploader 41H87 - Main Frame Wdmt SL-330/40041H87-SWAP$6,628.87
3Swaploader 42H01 - Pin MF/Cyl 3 x 5-3/4 ZPSwaploader 42H01 - Pin MF/Cyl 3 x 5-3/4 ZP42H01-SWAP$116.97
4Swaploader 90P71 - Wear Pad 2-3/4x1/2x11-3/4Swaploader 90P71 - Wear Pad 2-3/4x1/2x11-3/490P71-SWAP$11.01
8Swaploader 00755 - Washer Lock 3/8Swaploader 00755 - Washer Lock 3/800755-SWAP$0.04
9Swaploader 01P31 - Washer Disc Lock 5/8 PrSwaploader 01P31 - Washer Disc Lock 5/8 Pr01P31-SWAP$2.71
11Swaploader 00P14 - Nut Hex 3/8-16 UNC Gr8Swaploader 00P14 - Nut Hex 3/8-16 UNC Gr800P14-SWAP$0.08
13Swaploader 00P56 - HHCS 5/8-11 UNC x 1-1/2 Gr8Swaploader 00P56 - HHCS 5/8-11 UNC x 1-1/2 Gr800P56-SWAP$1.20
14Swaploader 00P68 - FHCS 3/8-16 UNC x 1-1/4 SSSwaploader 00P68 - FHCS 3/8-16 UNC x 1-1/4 SS00P68-SWAP$0.43
16Swaploader 42H11 - Jib Lockout Mnt 5 x 5Swaploader 42H11 - Jib Lockout Mnt 5 x 542H11-SWAP$99.20
17Swaploader 00752 - 5/16" Split Lock WasherSwaploader 00752 - 5/16" Split Lock Washer00752-SWAP$0.04
18Swaploader 00P13 - HHCS 3/8-16 UNC x 1-1/4 Gr8Swaploader 00P13 - HHCS 3/8-16 UNC x 1-1/4 Gr800P13-SWAP$0.31
19Swaploader 01P20 - SHCS 3/8-16 UNC x 1-3/4 Gr8Swaploader 01P20 - SHCS 3/8-16 UNC x 1-3/4 Gr801P20-SWAP$0.78
20Swaploader 01P08 - HHCS 5/16-18 UNC x 2 Gr8Swaploader 01P08 - HHCS 5/16-18 UNC x 2 Gr801P08-SWAP$0.24
21Swaploader 00P44 - HHCS 3/8-16 UNC x 1-1/2 Gr8Swaploader 00P44 - HHCS 3/8-16 UNC x 1-1/2 Gr800P44-SWAP$0.35
22Swaploader 41H81 - Front Guide Shim Wdmt 400SSwaploader 41H81 - Front Guide Shim Wdmt 400S41H81-SWAP$31.22
