- Ideal for both high speed interstates and city streets.
- Pronounced J-shaped curl in the blade keeps snow close to the road to maintain driver visibility.
- Full 4 x 4 x 3/4 Inch push tube provides rigidity and strength.
- Angle and reverse with power with the 3 Inches by 16 Inches nitrided outboard cylinders
- Fully boxed A-frame design keeps the plow close to the truck for a tight turning radius and reduced front axle strain.
- Manganese bronze bushing for king pin is long lasting and easy to service.
- Torsion trip edge design with 8 moldboard-to-push-frame pivot points protects equipment from hidden curbs manholes and other obstacles.
- Three position attack angle adjusts from 5 to 20 Degrees to tackle a variety of plowing conditions.

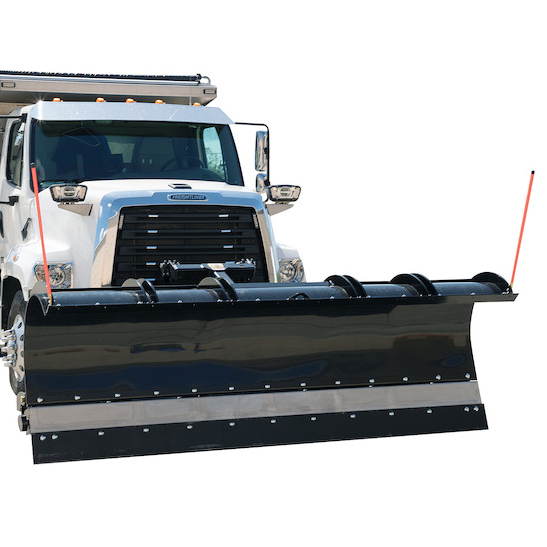

Buyers Products SnowDogg SuperJ Municipal Snow Plow is a reversible J-plow designed for urban and high speed interstate use. The pronounced J-shaped curve of the blade helps control the snow to maintain driver visibility even in intense plowing conditions. The 47.5 Inches tall moldboard pivots 35 Degrees from bulldoze position to provide superior control over where the snow is thrown. You can switch your discharge direction on-the-fly between driver side and passenger side giving you the ability to rapidly adjust to different plowing conditions.
The SuperJ’s fully boxed A-frame works with the full width push bar and nitrided outboard cylinders to provide a powerful push and spread impact force. This design also keeps the plow close to the truck for a tight turning radius and reduced strain on the vehicle’s front axle. The standard 2-point telescoping chain lift (with attachment point for optional 3-point lift) provides a level lift for smooth precise plow control. A 3-position attack angle adjusts from 5 to 20 Degrees to handle a variety of plowing conditions. The 4 x 4 x 3/4 Inch bottom angle and torsion trip edge protect your equipment from manholes and other hidden obstacles. A sturdy 3 Inches king pin features a manganese bronze bushing and grease fitting for easy maintenance.
The SuperJ is available in 10 11 and 12 foot lengths with a carbon steel 304 stainless steel or UHMW polycarbonate moldboard. Mounting the plow on your truck is easy with the swivel plate attachment.
| Blade Height | 42 Inches |
| Blade Width | 120 Inches |
| Material | Polycarbonate |
| Finish | Powder-Coat with Primer |
| Color | Black |
| Trip Style | Trip-Edge |
| Trip Spring Syle | Torsion |
| Number Of Trip Springs | 5 |
| Number Of Ribs | 10 |
| Rib Thickness | 0.50 Inches |
| Rib Material | Carbon Steel |
| Push Frame Tubing Dimensions | 4 x 3/8 Inches |
| King Pin Diameter | 2.50 Inches |
| King Pin Material | 1045 Steel |
| Tubing Material | Carbon Steel |
| Cutting Edge Dimensions | 6 x 1/2 Inches |
| Cutting Edge Material | 1080 Steel |
| Angle Cylinder Action | Single-Acting |
| Angle Cylinder Dimensions | 3 x 16 Inches |
| Attachment Style | Swivel |
| Min Order Qty | 1 |
| Multiple Sale Qty | 1 |
| Product Code | 930 |
| Sell Pack Type | Each |
| Shipping Weight | 2234 Lbs |
| UPC | 724920176118 |
Product Common Use: Big Jobs
