- Ideal for both high speed interstates and city streets.
- Flexible upper moldboard transforms on the fly to adapt to different road conditions .
- Switch between a center left or right discharge from the cab of your vehicle.
- Curl the blade down to control light powdery snow.
- Corrosion resistant 304 stainless steel lower moldboard skin never needs paint.
- Fully boxed A-frame and full-width push frame provide power and rigidity.
- Nitrided outboard cylinders keep the plow close to the vehicle for a tight turning radius.
- Telescoping 2-point level lift (with attachment point for optional 3-point lift) comes standard.
- A 2-1/2 Inch king pin with manganese bronze bushing and grease fitting is long lasting and easy to maintenance.

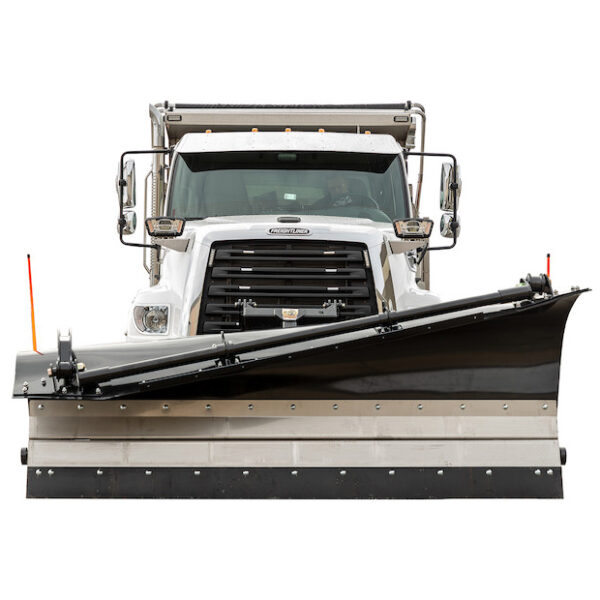

Buyers Products SnowDogg SuperFlex Municipal Snow Plow is designed for urban and high speed expressway use. The plow features a flexible UHMW polyethylene upper moldboard and hydraulically-powered ribs that transform the blade to handle different plowing conditions. Switch between standard left and right discharges on-the-fly from the cab of your vehicle. Curl the blade down to fit under mailboxes and control light powdery snow or open it up to move heavy wet snow. Three different attack angle positions (5 Degrees 10 Degrees and 20 Degrees) give you even more control over how your plow bites the road. A corrosion resistant 304 stainless steel lower moldboard skin comes standard.
The SuperFlex is equipped with a 4 x 4 x 3/4 Inch bottom angle and a torsion trip edge to protect your equipment from manholes and other hidden obstacles. The fully boxed A-frame full width 4 Inch structural tubing push frame and 3 Inch nitride outboard cylinders provide a powerful push and keep the plow close to the truck. This design gives the SuperFlex a tighter turning radius and reduces strain on the vehicle’s front axle.
A standard 2-point telescoping chain lift (with attachment point for optional 3-point lift) provides a level lift for smooth precise plow control. A sturdy 2-1/2 Inch king pin features a manganese bronze bushing and grease fitting for easy maintenance.
Blade Height | 33/51 Inches |
Blade Width | 132 Inches |
Material | Polyethylene |
Color | Orange |
Trip Style | Trip-Edge |
Trip Spring Style | Torsion |
Number Of Trip Springs | 5 |
Number Of Ribs | 10 |
Rib Thickness | 0.50 Inches |
Push Frame Tubing Dimensions | 4 x 3/8 Inches |
King Pin Diameter | 2.50 Inches |
King Pin Material | 1045 Steel |
Tubing Material | Carbon Steel |
Cutting Edge Dimensions | 6 x 1/2 Inches |
Cutting Edge Material | 1080 Steel |
Angle Cylinder Action | Single-Acting |
Angle Cylinder Dimensions | 3 x 16 Inches |
Attachment Style | Swivel |
Min Order Qty | 1 |
Multiple Sale Qty | 1 |
Product Code | 930 |
Sell Pack Type | Each |
Shipping Weight | 2646 Lbs |
UPC | 724920176163 |
