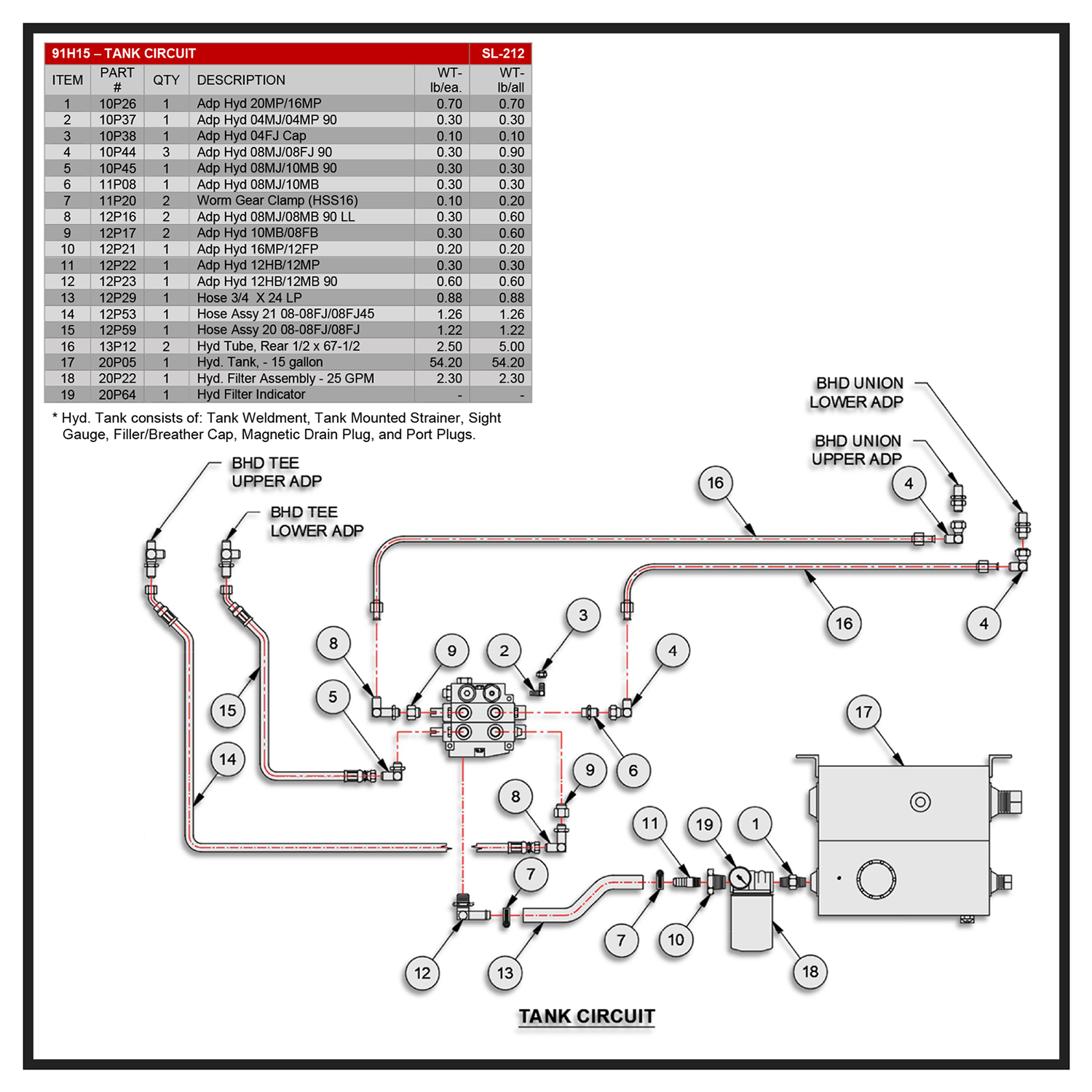

Swaploader SL-185/212 Hydraulic Sub-Assembly Chassis Tank Circuit Diagram
Swaploader Sl 185/212 Hydraulic Sub Assembly Chassis Tank Circuit Diagram

Swaploader SL-185/212 Hydraulic Sub-Assembly Chassis Tank Circuit Diagram

SKU: SL-185-212-HSA-CTC-DG Category: Brand:
ID Image Title SKU Price Quantity Add to Cart
1Swaploader 10P26 - Adp Hyd 20MP/16MPSwaploader 10P26 - Adp Hyd 20MP/16MP10P26-SWAP$12.17
2Swaploader 10P37 - Adp Hyd 04MJ/04MP 90Swaploader 10P37 - Adp Hyd 04MJ/04MP 9010P37-SWAP$2.46
3Swaploader 10P38 - Adp Hyd 04FJ CapSwaploader 10P38 - Adp Hyd 04FJ Cap10P38-SWAP$0.85
4Swaploader 10P44 - Adp Hyd 08MJ/08FJ 90Swaploader 10P44 - Adp Hyd 08MJ/08FJ 9010P44-SWAP$4.92
5Swaploader 10P45 - Adp Hyd 08MJ/10MB 90Swaploader 10P45 - Adp Hyd 08MJ/10MB 9010P45-SWAP$6.02
6Swaploader 11P08 - Adp Hyd 08MJ/10MBSwaploader 11P08 - Adp Hyd 08MJ/10MB11P08-SWAP$2.74
7Swaploader 11P20 - Clamp WG 11/16 - 1-1/2Swaploader 11P20 - Clamp WG 11/16 - 1-1/211P20-SWAP$3.88
8Swaploader 12P16 - Adp Hyd 08MJ/08MB 90 LLSwaploader 12P16 - Adp Hyd 08MJ/08MB 90 LL12P16-SWAP$7.98
9Swaploader 12P17 - Adp Hyd 10MB/08FBSwaploader 12P17 - Adp Hyd 10MB/08FB12P17-SWAP$3.64
10Swaploader 12P21 - Adp Hyd 16MP/12FPSwaploader 12P21 - Adp Hyd 16MP/12FP12P21-SWAP$5.80
11Swaploader 12P22 - Adp Hyd 12HB/12MPSwaploader 12P22 - Adp Hyd 12HB/12MP12P22-SWAP$6.72
12Swaploader 12P23 - Adp Hyd 12HB/12MB 90Swaploader 12P23 - Adp Hyd 12HB/12MB 9012P23-SWAP$16.08
13Swaploader 12P29 - Hose 3/4 x 24 LPSwaploader 12P29 - Hose 3/4 x 24 LP12P29-SWAP$36.95
14Swaploader 12P53 - Hose Assy 21 08-08FJ/08FJ45Swaploader 12P53 - Hose Assy 21 08-08FJ/08FJ4512P53-SWAP$64.58
15Swaploader 12P59 - Hose Assy 20 08-08FJ/08FJ45Swaploader 12P59 - Hose Assy 20 08-08FJ/08FJ4512P59-SWAP$60.46
16Swaploader 13P12 - Hyd Tube Rear 1/2 x 67-1/2Swaploader 13P12 - Hyd Tube Rear 1/2 x 67-1/213P12-SWAP$85.07
17Swaploader 20P05 - Hyd Tank 15 GallonSwaploader 20P05 - Hyd Tank 15 Gallon20P05-SWAP$590.85
18Swaploader 20P22 - Hyd Filter Assy 25 GPMSwaploader 20P22 - Hyd Filter Assy 25 GPM20P22-SWAP$78.27
19Swaploader 20P64 - Hyd Filter Indicator GaugeSwaploader 20P64 - Hyd Filter Indicator Gauge20P64-SWAP$15.51

Please note that the QTY column on the diagrams notes how many of that line item is needed for the full assembly.

Swaploader parts are not kept in stock but are shipped directly from the manufacturer to the customer. If you have concerns about stock lead times or fitment feel free to contact Swaploader at 515-266-3042.
