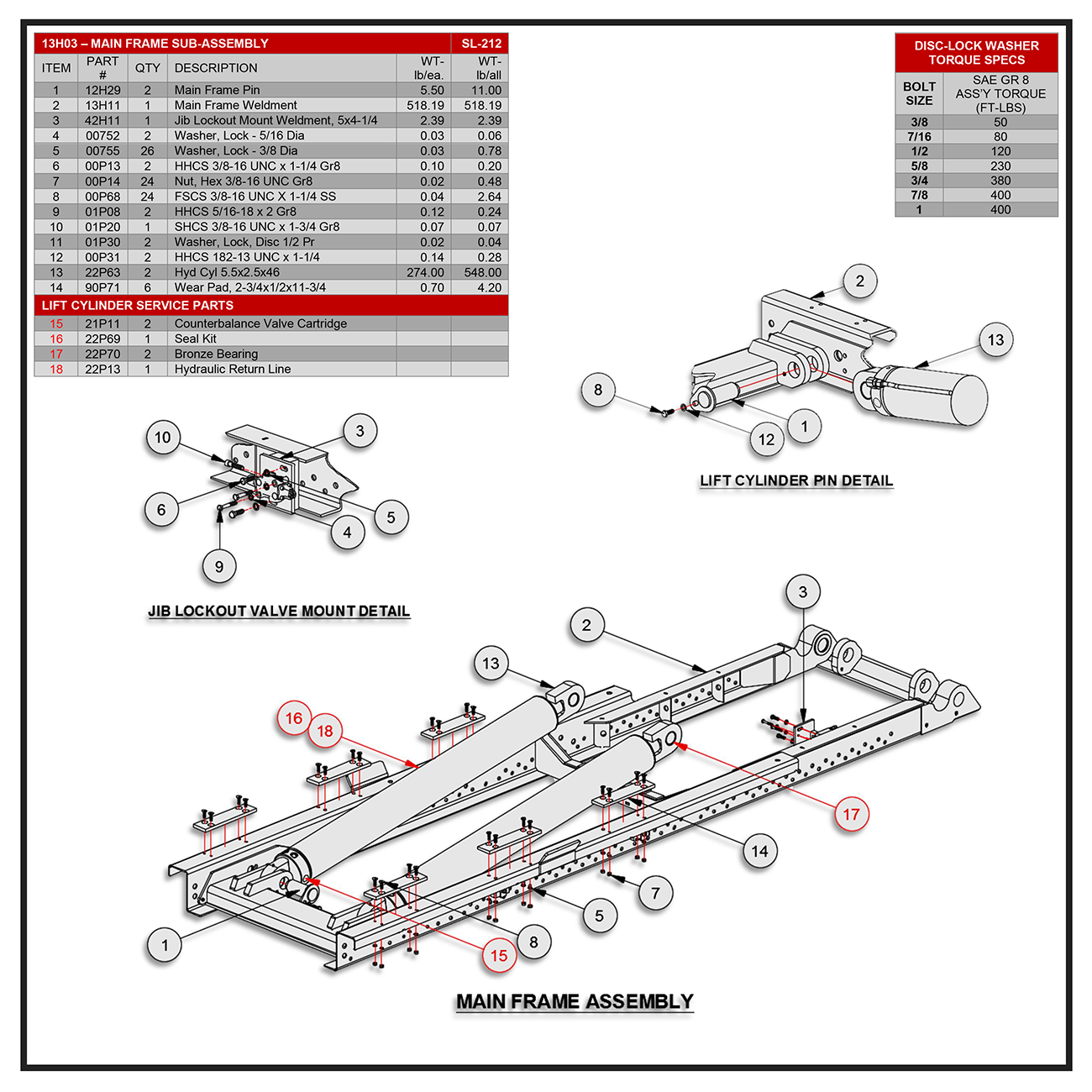

Swaploader SL-212 Main Frame Sub-Assembly Diagram
Swaploader Sl 212 Main Frame Sub Assembly Diagram

Swaploader SL-212 Main Frame Sub-Assembly Diagram

SKU: SL-212-MFSA-DG Category: Brand:
ID Image Title SKU Price Quantity Add to Cart
1Swaploader 12H29 - Pin MF/Cyl 2 x 5 ZPSwaploader 12H29 - Pin MF/Cyl 2 x 5 ZP12H29-SWAP$39.99
2Swaploader 13H11 - Main Frame Wdmt SL-212Swaploader 13H11 - Main Frame Wdmt SL-21213H11-SWAP$3,599.65
3Swaploader 42H11 - Jib Lockout Mnt 5 x 5Swaploader 42H11 - Jib Lockout Mnt 5 x 542H11-SWAP$99.20
4Swaploader 00752 - Washer Lock 5/16Swaploader 00752 - Washer Lock 5/1600752-SWAP$0.04
5Swaploader 00755 - Washer Lock 3/8Swaploader 00755 - Washer Lock 3/800755-SWAP$0.04
6Swaploader 00P13 - HHCS 3/8-16 UNC x 1-1/4 Gr8Swaploader 00P13 - HHCS 3/8-16 UNC x 1-1/4 Gr800P13-SWAP$0.31
7Swaploader 00P14 - Nut Hex 3/8-16 UNC Gr8Swaploader 00P14 - Nut Hex 3/8-16 UNC Gr800P14-SWAP$0.08
8Swaploader 00P68 - FHCS 3/8-16 UNC x 1-1/4 SSSwaploader 00P68 - FHCS 3/8-16 UNC x 1-1/4 SS00P68-SWAP$0.43
9Swaploader 01P08 - HHCS 5/16-18 UNC x 2 Gr8Swaploader 01P08 - HHCS 5/16-18 UNC x 2 Gr801P08-SWAP$0.24
10Swaploader 01P20 - SHCS 3/8-16 UNC x 1-3/4 Gr8Swaploader 01P20 - SHCS 3/8-16 UNC x 1-3/4 Gr801P20-SWAP$0.78
11Swaploader 01P30 - Washer Disc Lock 1/2 PrSwaploader 01P30 - Washer Disc Lock 1/2 Pr01P30-SWAP$1.81
12Swaploader 00P31 - HHCS 1/2-13 UNC x 1-1/4Swaploader 00P31 - HHCS 1/2-13 UNC x 1-1/400P31-SWAP$0.61
13Swaploader 22P63 - Hyd Cyl 5.5x2.5x46Swaploader 22P63 - Hyd Cyl 5.5x2.5x4622P63-SWAP$3,030.94
14Swaploader 90P71 - Wear Pad 2-3/4x1/2x11-3/4Swaploader 90P71 - Wear Pad 2-3/4x1/2x11-3/490P71-SWAP$11.01
15Swaploader 21P11 - C'Bal Cart 3700 PSI CBCA-LHNSwaploader 21P11 - C'Bal Cart 3700 PSI CBCA-LHN21P11-SWAP$189.46
16Swaploader 22P69 - Seal Kit Lift Cyl 212/214Swaploader 22P69 - Seal Kit Lift Cyl 212/21422P69-SWAP$156.77
17Swaploader 22P70 - Hyd Cyl Brg Brz 2.00IDSwaploader 22P70 - Hyd Cyl Brg Brz 2.00ID22P70-SWAP$100.47
18Swaploader 22P13 - Return Line Cyl 185/212Swaploader 22P13 - Return Line Cyl 185/21222P13-SWAP$219.86

Please note that the QTY column on the diagrams notes how many of that line item is needed for the full assembly.

Swaploader parts are not kept in stock but are shipped directly from the manufacturer to the customer. If you have concerns about stock lead times or fitment feel free to contact Swaploader at 515-266-3042.
