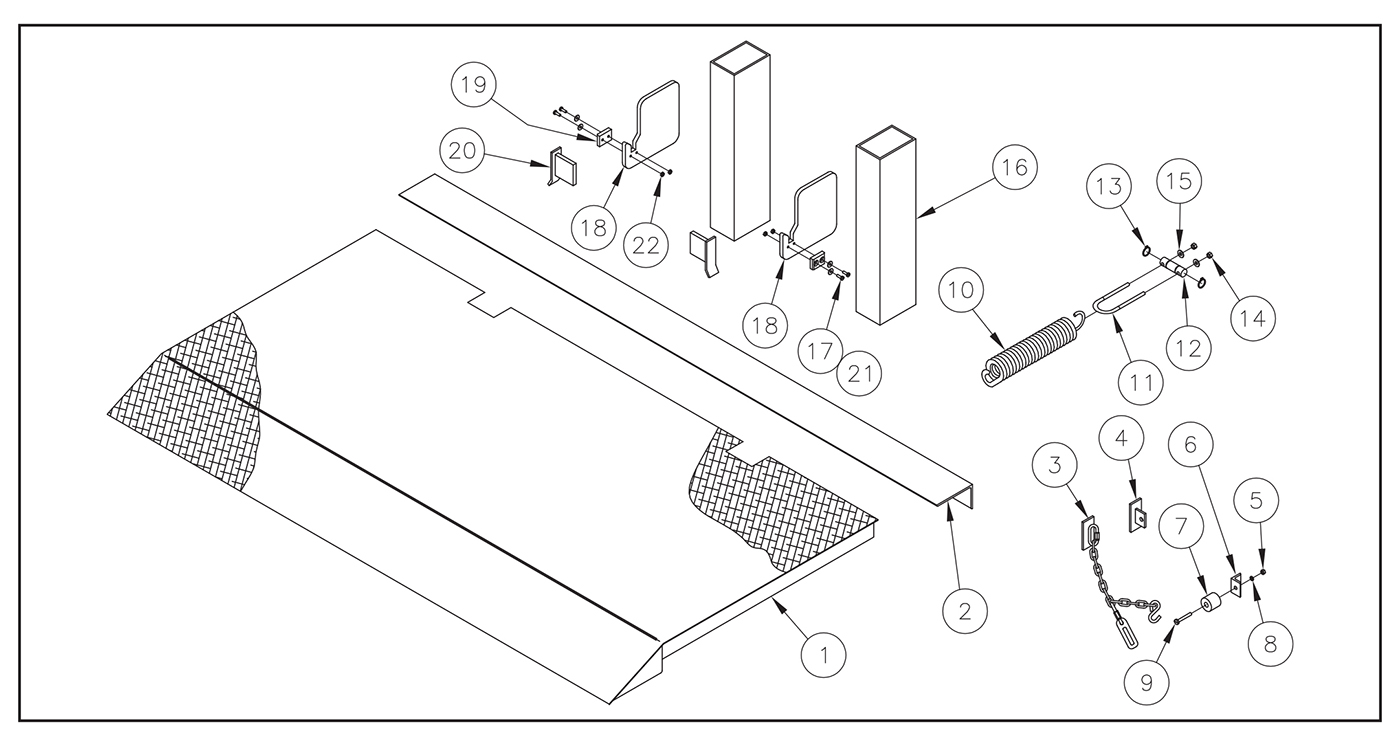

Thieman WT20/30/40 Platform Assembly Diagram

Thieman WT20/30/40 Platform Assembly Diagram

SKU: WT203040-PA-DG Category: Brand:
ID Image Title SKU Price Quantity Add to Cart
1Thieman 3400470 - Platform Assembly 8436Thieman 3400470 - Platform Assembly 84363400470-THIE$1,048.30
1Thieman 3400480 - Platform Assembly 9036Thieman 3400480 - Platform Assembly 90363400480-THIE$1,048.30
1Thieman 3400490 - Platform Assembly 9042Thieman 3400490 - Platform Assembly 90423400490-THIE$1,270.29
1Thieman 3400500 - Platform Assembly 9048Thieman 3400500 - Platform Assembly 90483400500-THIE$1,270.29
2Thieman 2019060 - Angle SpacerThieman 2019060 - Angle Spacer2019060-THIE$182.06
3Thieman 31606 - Platform Chain With S-HookThieman 31606 - Platform Chain With S-Hook31606-THIE$37.02
4Thieman 3103730 - Platform Chain AnchorThieman 3103730 - Platform Chain Anchor3103730-THIE$11.11
5Thieman 8120376 - Nut (0.312-18)Thieman 8120376 - Nut (0.312-18)8120376-THIE$0.35
6Thieman 2019033 - Snubber Mounting AngleThieman 2019033 - Snubber Mounting Angle2019033-THIE$5.54
7Thieman 5702290 - SnubberThieman 5702290 - Snubber5702290-THIE$4.94
8Thieman 8120214 - Lock Washer (0.31)Thieman 8120214 - Lock Washer (0.31)8120214-THIE$0.35
9Thieman 5792010 - Screw (0.312-18 x 2.25 Inches)Thieman 5792010 - Screw (0.312-18 x 2.25 Inches)5792010-THIE$0.57
10Thieman 5101120 - Closing Assist SpringThieman 5101120 - Closing Assist Spring5101120-THIE$31.17
11Thieman 5001380 - Spring AnchorThieman 5001380 - Spring Anchor5001380-THIE$19.90
12Thieman 5001390 - Spring Anchor PinThieman 5001390 - Spring Anchor Pin5001390-THIE$18.63
13Thieman 5781008 - Retaining RingThieman 5781008 - Retaining Ring5781008-THIE$0.90
14Thieman 8120377 - Nut (0.38-18)Thieman 8120377 - Nut (0.38-18)8120377-THIE$0.35
15Thieman 8120388 - Flat Washer (0.38)Thieman 8120388 - Flat Washer (0.38)8120388-THIE$0.35
16Thieman 3012-002 - Stow Latch Tube (PTO Models ONLY)Thieman 3012-002 - Stow Latch Tube (PTO Models ONLY)3012-002-THIE$106.82
17Thieman 8180022 - Hex Head Screw (0.25-20 x 1 Inch) PTO Models ONLYThieman 8180022 - Hex Head Screw (0.25-20 x 1 Inch) PTO Models ONLY8180022-THIE$0.57
18Thieman 27011 - Resting Plate for WT (PTO Models ONLY)Thieman 27011 - Resting Plate for WT (PTO Models ONLY)27011-THIE$46.70
19Thieman 5703 - Wear Pad (PTO Models ONLY)Thieman 5703 - Wear Pad (PTO Models ONLY)5703-THIE$8.88
20Thieman 3189 - Latch Bar Weldment (PTO Models ONLY)Thieman 3189 - Latch Bar Weldment (PTO Models ONLY)3189-THIE$35.53
21Thieman 8120386 - Flat Washer (0.25) PTO Models ONLYThieman 8120386 - Flat Washer (0.25) PTO Models ONLY8120386-THIE$0.35
22Thieman 8103-019 - Nylon Lock Nut (0.25-20) PTO Models ONLYThieman 8103-019 - Nylon Lock Nut (0.25-20) PTO Models ONLY8103-019-THIE$0.35

LIFTGATE PARTS ORDERED WITHOUT PROVIDING YOUR LIFTGATE MODEL/SERIAL NUMBERS ARE NOT ELIGIBLE FOR RETURN.

PLEASE NOTE THAT THE PRICES BELOW ARE FOR A SINGLE ITEM. THE QTY COLUMN ON THE DIAGRAM SHOWS THE TOTAL NUMBER YOU WILL NEED FOR A COMPLETE ASSEMBLY.
