Tommy Gate Railgate Series Bi-Fold Diagram (1 OF 2) [Flatbed / Stake / Van]
Tommy Gate Railgate Series Bi Fold Diagram (1 Of 2) [flatbed / Stake / Van]

Tommy Gate Railgate Series Bi-Fold Diagram (1 OF 2) [Flatbed / Stake / Van]

SKU: TG-RGSBF-FBSV-DG1 Category: Tag: Brand:
ID Image Title SKU Price Quantity Add to Cart
4Tommy Gate 1111 - License Plate Mount KitTommy Gate 1111 - License Plate Mount Kit1111-TOMM$6.30
5Tommy Gate 11772 - Replacement Slider Wheel SetTommy Gate 11772 - Replacement Slider Wheel Set11772-TOMM$544.95
6Tommy Gate 11770 - Replacement SliderTommy Gate 11770 - Replacement Slider11770-TOMM$804.83
7Tommy Gate 930 - Replacement Rail Safety SwitchTommy Gate 930 - Replacement Rail Safety Switch930-TOMM$61.59
8Tommy Gate 11773 - Replacement 3.00 OD Pulley - Pin and KeeperTommy Gate 11773 - Replacement 3.00 OD Pulley - Pin and Keeper11773-TOMM$149.63
9Tommy Gate 11774 - Replacement Idler Pulley - Pin and KeeperTommy Gate 11774 - Replacement Idler Pulley - Pin and Keeper11774-TOMM$39.38
10Tommy Gate 928 - Replacement Red Light with GrommetTommy Gate 928 - Replacement Red Light with Grommet928-TOMM$36.39
11Tommy Gate 926 - Replacement Clear Light with GrommetTommy Gate 926 - Replacement Clear Light with Grommet926-TOMM$36.39
12Tommy Gate 10199 - Replacement License Plate Light and Bracket (H1)Tommy Gate 10199 - Replacement License Plate Light and Bracket (H1)10199-TOMM$34.19
17Tommy Gate 967 - Replacement Raise Solenoid-3 PostTommy Gate 967 - Replacement Raise Solenoid-3 Post967-TOMM$85.68
19Tommy Gate 13559 - Replacement Compact Fixed ControlTommy Gate 13559 - Replacement Compact Fixed Control13559-TOMM$329.18
20Tommy Gate 11780 - Replacement Pump and Motor (3600psi) 3qt.** 2500# RailgateTommy Gate 11780 - Replacement Pump and Motor (3600psi) 3qt.** 2500# Railgate11780-TOMM$767.03
20Tommy Gate 11781 - Replacement Pump and Motor (3800psi) 3qt.** 3000# RailgateTommy Gate 11781 - Replacement Pump and Motor (3800psi) 3qt.** 3000# Railgate11781-TOMM$767.03
21Tommy Gate 989 - Replacement Vent PlugTommy Gate 989 - Replacement Vent Plug989-TOMM$6.30
23Tommy Gate 4355 - Replacement Plastic Tank (3qt.)**Tommy Gate 4355 - Replacement Plastic Tank (3qt.)**4355-TOMM$95.76
24Tommy Gate 958 - Replacement 12V Motor (MOTOR ONLY)Tommy Gate 958 - Replacement 12V Motor (MOTOR ONLY)958-TOMM$441.00
25Tommy Gate 11803 - Replacement 2 Ga. 2 Wire Electric Cable with Lugs-33 ft.Tommy Gate 11803 - Replacement 2 Ga. 2 Wire Electric Cable with Lugs-33 ft.11803-TOMM$406.35
26Tommy Gate 992 - Replacement Copper LugTommy Gate 992 - Replacement Copper Lug992-TOMM$6.30
28Tommy Gate 11790 - Replacement Rail Cylinder Pin and KeeperTommy Gate 11790 - Replacement Rail Cylinder Pin and Keeper11790-TOMM$45.05
30Tommy Gate 973 - Replacement Check ValveTommy Gate 973 - Replacement Check Valve973-TOMM$44.27
32Tommy Gate 12966 - Replacement 9/16 Inch x 7/16 Inch Flow ControlTommy Gate 12966 - Replacement 9/16 Inch x 7/16 Inch Flow Control12966-TOMM$75.60
33Tommy Gate 11787 - Cylinder Shaft with Pulleys Assembly (Rail) Includes: Cylinder Repair KitTommy Gate 11787 - Cylinder Shaft with Pulleys Assembly (Rail) Includes: Cylinder Repair Kit11787-TOMM$693.00
34Tommy Gate 11788 - 2 Inch x 35 Inch Replacement Cylinder Barrel (25-30 Rail) Includes: Cylinder Repair KitTommy Gate 11788 - 2 Inch x 35 Inch Replacement Cylinder Barrel (25-30 Rail) Includes: Cylinder Repair Kit11788-TOMM$593.78
35Tommy Gate 11789 - Replacement Cylinder Clamp (Rail)Tommy Gate 11789 - Replacement Cylinder Clamp (Rail)11789-TOMM$12.29
37Tommy Gate 11775 - Replacement 3.50 OD Pulley - Pin and KeeperTommy Gate 11775 - Replacement 3.50 OD Pulley - Pin and Keeper11775-TOMM$108.21
38Tommy Gate 11776 - Replacement 4.72 OD Pulley - Pin and KeeperTommy Gate 11776 - Replacement 4.72 OD Pulley - Pin and Keeper11776-TOMM$166.95
39Tommy Gate 12609 - Replacement 1/4 Inch x 20 Inch Hydraulic HoseTommy Gate 12609 - Replacement 1/4 Inch x 20 Inch Hydraulic Hose12609-TOMM$69.30
40Tommy Gate 12611 - Replacement 90 Degree Elbow 9/16 x 7/16Tommy Gate 12611 - Replacement 90 Degree Elbow 9/16 x 7/1612611-TOMM$15.60
41Tommy Gate 11795 - Replacement Leaf Chain 265 Pitch - Passenger's Side (BH)Tommy Gate 11795 - Replacement Leaf Chain 265 Pitch - Passenger's Side (BH)11795-TOMM$893.03
42Tommy Gate 11794 - Replacement Leaf Chain Attachment FittingTommy Gate 11794 - Replacement Leaf Chain Attachment Fitting11794-TOMM$157.19
43Tommy Gate 11796 - Replacement Leaf Chain 285 Pitch - Driver's Side (85) (BH)Tommy Gate 11796 - Replacement Leaf Chain 285 Pitch - Driver's Side (85) (BH)11796-TOMM$945.00
43Tommy Gate 11797 - Replacement Leaf Chain 291 Pitch - Driver's Side (89) (BH)Tommy Gate 11797 - Replacement Leaf Chain 291 Pitch - Driver's Side (89) (BH)11797-TOMM$965.48
43Tommy Gate 11798 - Replacement Leaf Chain 301 Pitch - Driver's Side (95) (BH)Tommy Gate 11798 - Replacement Leaf Chain 301 Pitch - Driver's Side (95) (BH)11798-TOMM$992.25
44Tommy Gate 11799 - Leaf Chain Adjustment Screw - Clevis and PinTommy Gate 11799 - Leaf Chain Adjustment Screw - Clevis and Pin11799-TOMM$142.38
46Tommy Gate 11800 - Replacement Rail Chain Cover BHTommy Gate 11800 - Replacement Rail Chain Cover BH11800-TOMM$40.64
47Tommy Gate 11804 - Replacement 200 Amp Manual Reset Circuit BreakerTommy Gate 11804 - Replacement 200 Amp Manual Reset Circuit Breaker11804-TOMM$115.29
48Tommy Gate 11801 - Replacement Steel Upper Pulley Assembly LeftTommy Gate 11801 - Replacement Steel Upper Pulley Assembly Left11801-TOMM$280.35
49Tommy Gate 11802 - Replacement Steel Upper Pulley Assembly RightTommy Gate 11802 - Replacement Steel Upper Pulley Assembly Right11802-TOMM$280.35
52Tommy Gate 11771 - Replacement Slider WheelTommy Gate 11771 - Replacement Slider Wheel11771-TOMM$146.16
65Tommy Gate 8171 - (85) Replacement Safety Trip Bar (77-1/2'')Tommy Gate 8171 - (85) Replacement Safety Trip Bar (77-1/2'')8171-TOMM$71.36
65Tommy Gate 8172 - (89) Replacement Safety Trip Bar (81-1/2'')Tommy Gate 8172 - (89) Replacement Safety Trip Bar (81-1/2'')8172-TOMM$71.36
65Tommy Gate 8173 - (95) Replacement Safety Trip Bar (87-1/2")Tommy Gate 8173 - (95) Replacement Safety Trip Bar (87-1/2")8173-TOMM$71.36
66Tommy Gate 9645 - Release Solenoid External Assembly with ConnectorTommy Gate 9645 - Release Solenoid External Assembly with Connector9645-TOMM$146.01
67Tommy Gate 11785 - 2 Inch Cylinder Repair Kit (25-30 Rail)Tommy Gate 11785 - 2 Inch Cylinder Repair Kit (25-30 Rail)11785-TOMM$384.30
70Tommy Gate 966 - Padlock with KeysTommy Gate 966 - Padlock with Keys966-TOMM$14.49
87Tommy Gate 11844 - Replacement Handle Strap Retention Ramp (BF)Tommy Gate 11844 - Replacement Handle Strap Retention Ramp (BF)11844-TOMM$19.38

LIFTGATE PARTS ORDERED WITHOUT PROVIDING YOUR LIFTGATE MODEL/SERIAL NUMBERS ARE NOT ELIGIBLE FOR RETURN.

PLEASE NOTE THAT THE PRICES BELOW ARE FOR A SINGLE ITEM. THE QTY COLUMN ON THE DIAGRAM SHOWS THE TOTAL NUMBER YOU WILL NEED FOR A COMPLETE ASSEMBLY.

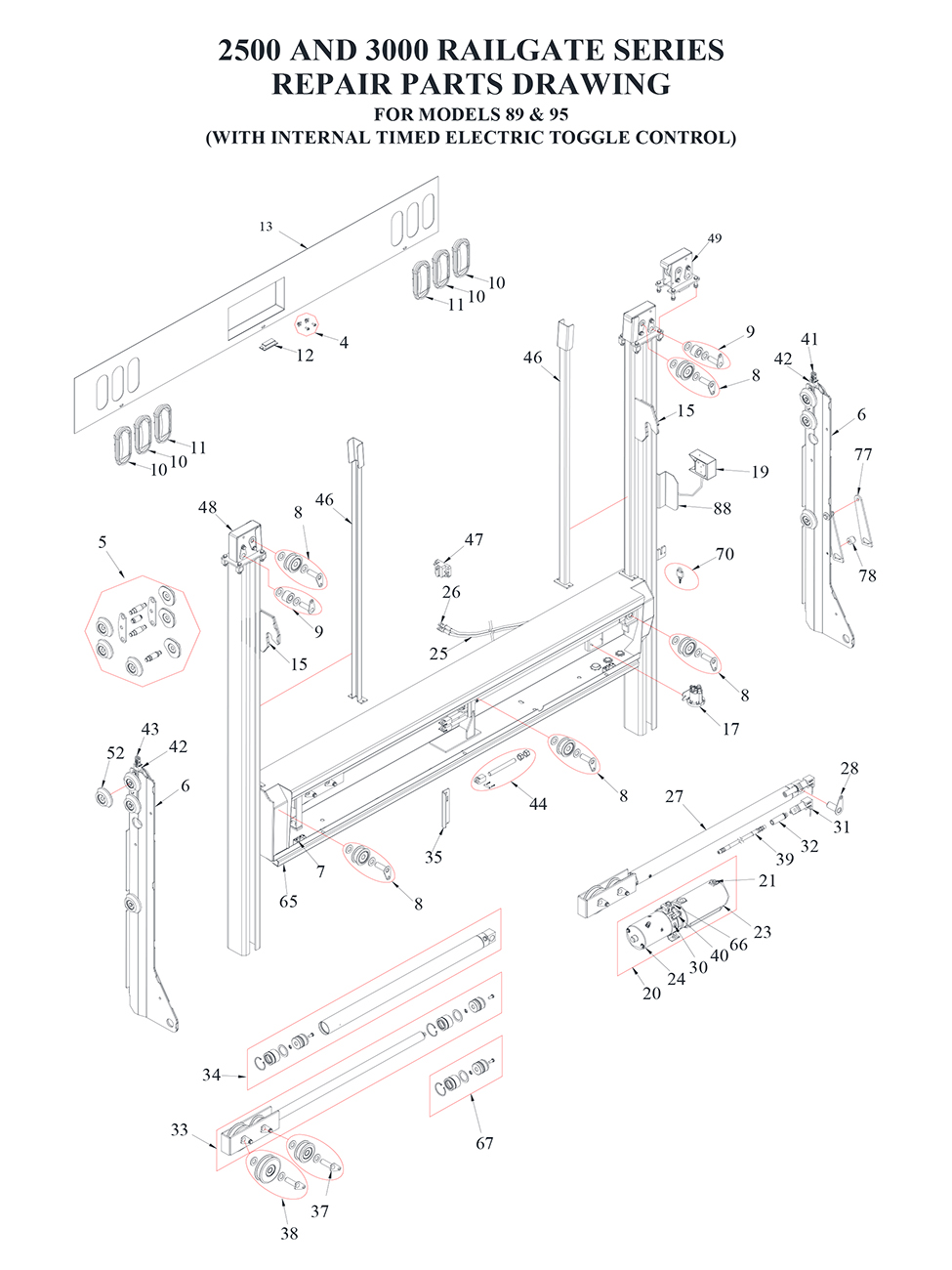

The most versatile, dependable liftgates ever seen in a loading bay, Bi-Fold, High-Cycle models support large steel platforms and high lifting capacities while still remaining completely dock-compatible. The platform drop-down function allows work vehicles to load and unload in any manner at any location.

For use with Flatbeds, Stake Bodies and Vans.
