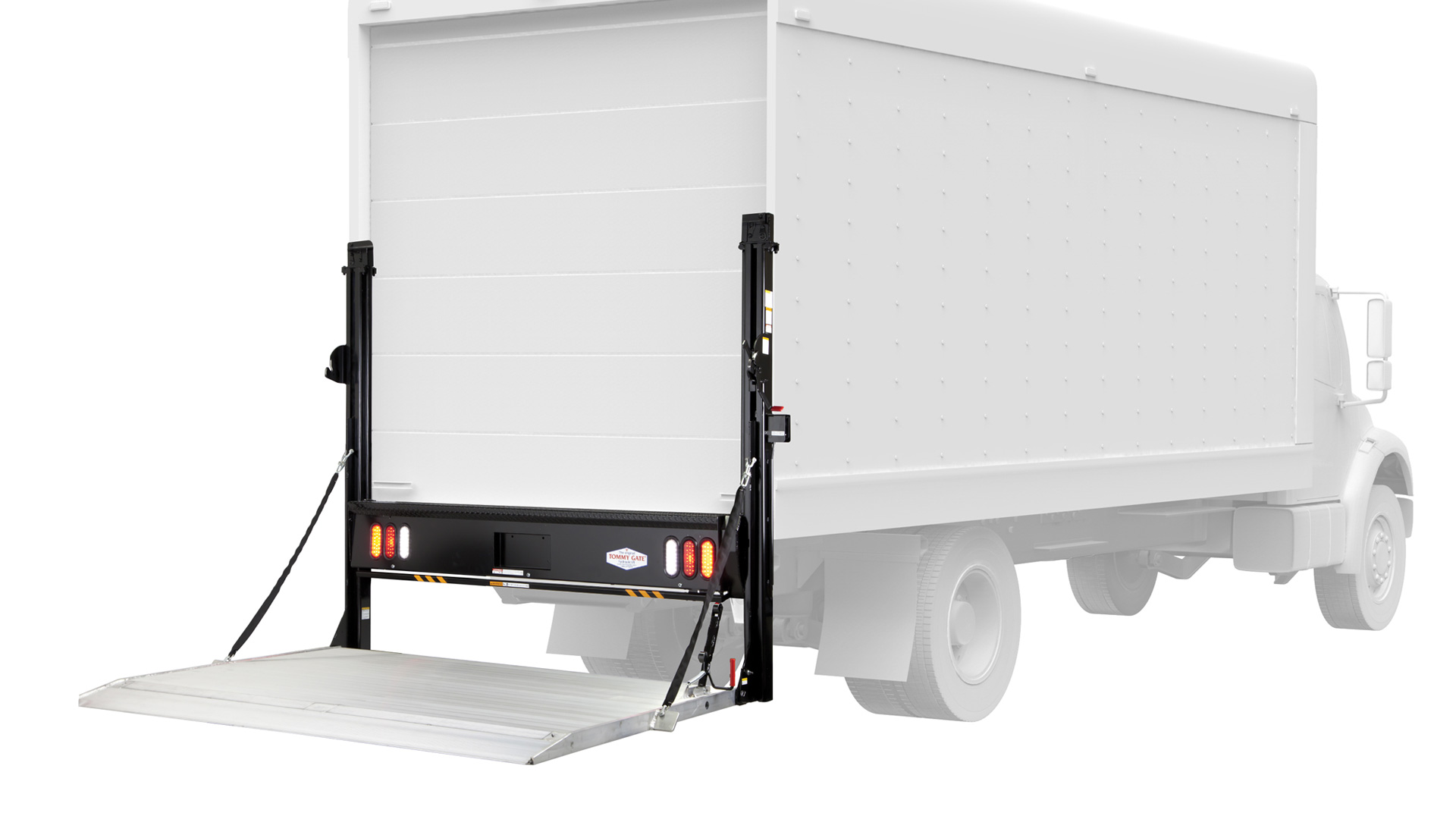

Tommy Gate Railgate Series: High-Cycle 90″ Bodies
PLEASE INDICATE THE FOLLOWING INFORMATION IN YOUR ORDER COMMENTS:
- VEHICLE YEAR
- VEHICLE MAKE
- VEHICLE MODEL
- VEHICLE DECK HEIGHT
- APPLICATION CODE (see table below)
LIFTGATES ARE NOT RETURNABLE. MAKE SURE YOU PROVIDE AS MUCH INFORMATION AS POSSIBLE TO ENSURE YOU RECEIVE THE CORRECT LIFTGATE.
High-Cycle Railgate Models
High-cycle models apply a steel roller and leaf-chain pulley system to maximize smoothness of motion, endurance, and strength. This medium-duty railgate is ideal for high-cycle applications in any environment. These lifts are built with the highest quality components and place a priority on function and safety.
Liftgate Capacity
2500 & 3000 lbs.
Rail Style
Steel Rollers
Hydraulic System
Single-Cylinder
Railgate Series: High-Cycle Features
- High-Cycle durability
- Higher lifting capacities
- Larger platforms
- Dock compatible
Rollers
Steel rollers guide the platform vertically within the rail track and are designed to withstand intensive cycling. Dual-sealed, maintenance-free ball bearings ensure the rollers are long-lasting and perform consistently in all climate conditions.
Safety
High-cycle railgates come standard with a safety trip bar, auto open and close, and recessed lights. Taper-integrated cart stops are optional on extruded-aluminum platform models.
 Models for 90″ Wide Bodies
| Model | Capacity | Load Area | Taper | Travel | Weight | Applications | Spec |
|---|---|---|---|---|---|---|---|
| 85-25 TP36 | 2500 | 85  x  36 | 12 | 32-54 | 1024 | C | |
| 85-25 TP42 | 2500 | 85  x  42 | 12 | 32-54 | 1075 | C | |
| 85-25 TP48 | 2500 | 85  x  48 | 12 | 32-54 | 1126 | C | |
| 85-25 EA55 | 2500 | 85  x  55 | 12 | 32-54 | 955 | C | |
| 85-30 TP36 | 3000 | 85  x  36 | 12 | 32-54 | 1024 | C | |
| 85-30 TP42 | 3000 | 85  x  42 | 12 | 32-54 | 1075 | C | |
| 85-30 TP48 | 3000 | 85  x  48 | 12 | 32-54 | 1126 | C | |
| 85-30 EA55 | 3000 | 85  x  55 | 12 | 32-54 | 955 | C |
 Applications & Order Codes – Flatbed and Van → Railgate Series: High-Cycle
| Code | Body Style |
|---|---|
| A | 102″ Wide Bodies |
| B | 96″ Wide Bodies |
| C | 90″ Wide Bodies |
