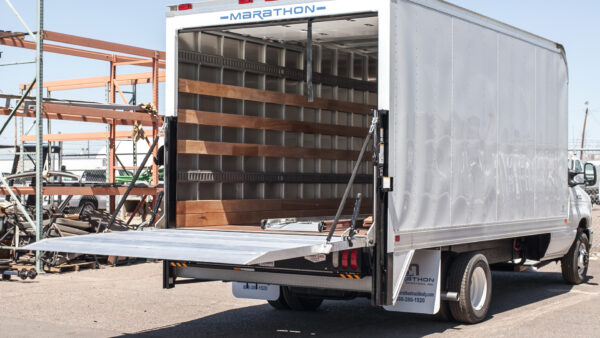

Tommy Gate Standard Railgate Models with Fixed Platforms for 80″ Bodies
The Tommy Gate Railgate Series comprises expertly engineered lifts that enable higher weight capacities and deeper platform loading areas. Standard model railgates employ a padded-slider system and are offered in both steel and aluminum frames.
Liftgate Capacity
1600 & 2000 lbs.
Hydraulic System
Single-Cylinder
Rail Style
Padded Sliders
Railgate Series: Standard Features
1600 and 2000 lb. capacity railgates come standard with safety trip bar, auto-close, and recessed lights.
Above-Bed Optional Capability
On standard models, optional above-bed capability allows the platform to rise above the liftgate mainframe for dock loading.
All-Aluminum Models
A corrosion-resistant, lightweight, all-aluminum frame is available for most models.
Models for 80″ Wide Bodies
| Model | Capacity | Load Area | Taper | Travel | Weight | Applications | Spec |
|---|---|---|---|---|---|---|---|
| 73-16 TP37 | 1600 | 73  x  37 | 6 | 32-48 | 700 | E | |
| 73-16 TP42 | 1600 | 73  x  42 | 6 | 32-48 | 740 | E | |
| 73-16 EA55 | 1600 | 73  x  55 | 12 | 32-48 | 640 | E | |
| 73-20 TP37 | 2000 | 73  x  37 | 6 | 32-48 | 700 | E | |
| 73-20 TP42 | 2000 | 73  x  42 | 6 | 32-48 | 740 | E | |
| 73-20 EA55 | 2000 | 73  x  55 | 12 | 32-48 | 640 | E | |
| 73-20 GBR | 2000 | 25  x  30 | 12 | 32-48 | 720 | E |
- Self-closing system not available for 65″ or 70″ EA platforms at 1600 lb. capacity.
- Retention ramps are only available on Model 89 and Model 85. Retention ramps add 5″ of loading depth to the platform and include a 12″ aluminum taper.
Applications & Order Codes – Flatbed and Van → Railgate Series: Standard
| Code | Body Style |
|---|---|
| A | 102″ Wide Bodies |
| B | 96″ Wide Bodies |
| C | 90″ Wide Bodies |
| D | 85″ Wide Bodies |
| E | 80″ Wide Bodies |
