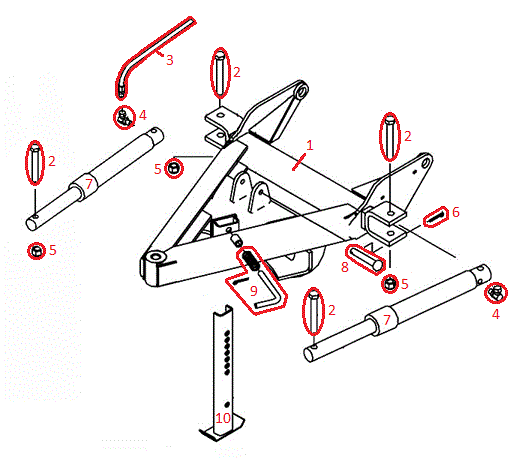

Trip-Edge RT3 Pushframe Assembly Diagram
Trip Edge Rt3 Pushframe Assembly Diagram

Trip-Edge RT3 Pushframe Assembly Diagram

SKU: TE-RT3-SH-PFA-DG Category:
ID Image Title SKU Price Quantity Add to Cart
2BOSS HDW01706 - 5/8" x 4" Grade 5 Bolt - Hex Head Cap Screw - YZNBOSS HDW01706 - 5/8" x 4" Grade 5 Bolt - Hex Head Cap Screw - YZNHDW01706-BOSS$2.58
3BOSS HYD01810 - Hydraulic Hose (3/8" x 34") [3/8" MP x 1/4" MP]BOSS HYD01810 - Hydraulic Hose (3/8" x 34") [3/8" MP x 1/4" MP]HYD01810-BOSS$35.09
4BOSS HYD07018 - Fitting 90 Deg Swvl 3/8Mp X 3/8FpBOSS HYD07018 - Fitting 90 Deg Swvl 3/8Mp X 3/8FpHYD07018-BOSS$9.98
5BOSS HDW01709 - Grade B YZN 5/8-11 Top Lock NutBOSS HDW01709 - Grade B YZN 5/8-11 Top Lock NutHDW01709-BOSS$0.99
7BOSS HYD08830 - Cylinder Angle Rt3 Stb Nitrobar 05-BOSS HYD08830 - Cylinder Angle Rt3 Stb Nitrobar 05-HYD08830-BOSS$309.80
9BOSS SnowplowBOSS TRP07881 - Kit-Pin Spring Kickstand TripedgeTRP07881-BOSS$24.44
10BOSS SnowplowBOSS STB03220 - RT3 Straight Blade Kickstand LegSTB03220-BOSS$39.57
