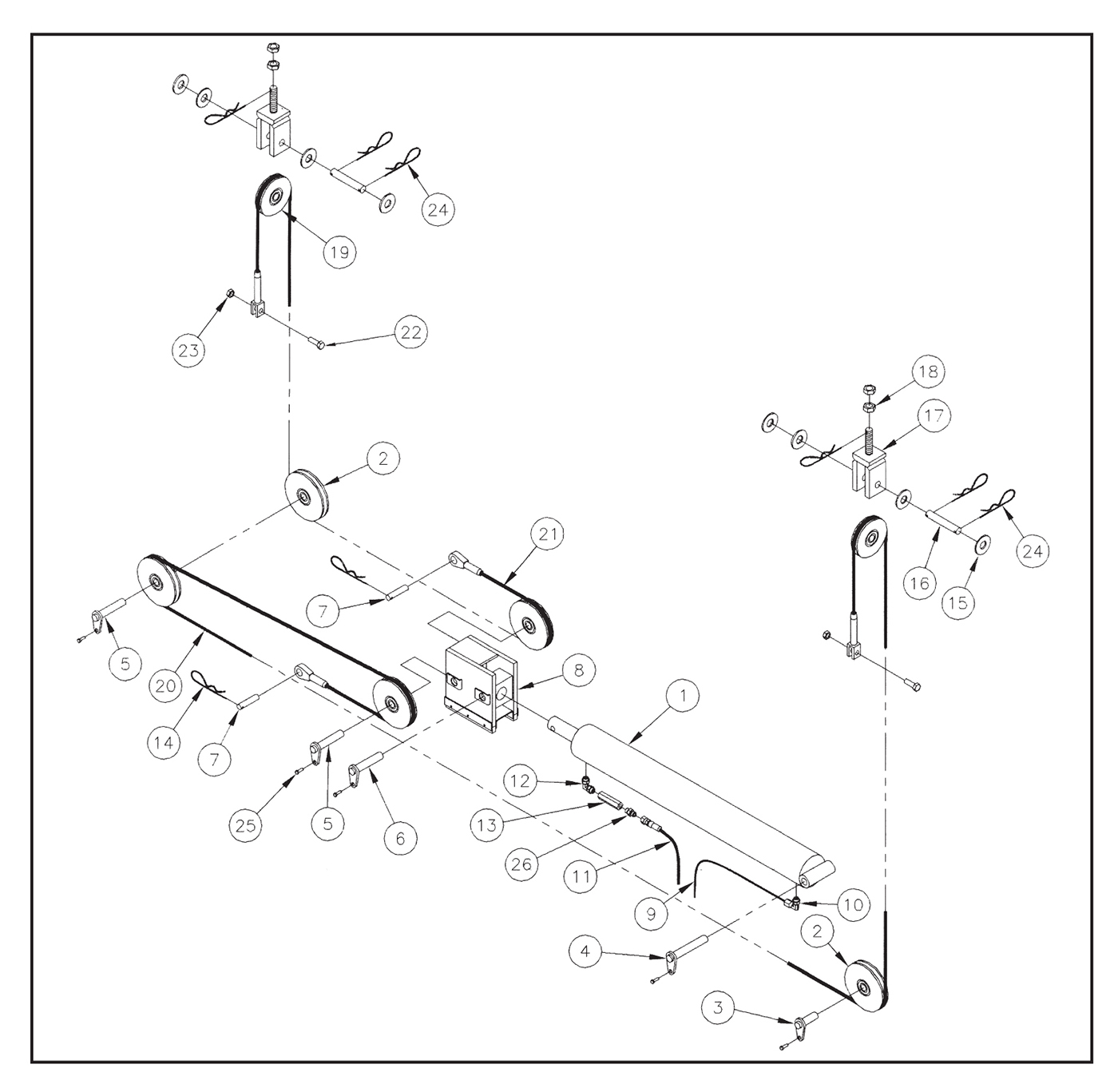

VL 30/40/50 Lifting Cable Assembly Diagram
Vl 30/40/50 Lifting Cable Assembly Diagram

VL 30/40/50 Lifting Cable Assembly Diagram

SKU: VL304050-LCA-DG Category: Brand:
ID Image Title SKU Price Quantity Add to Cart
1Thieman 42007 - New Style Cylinder For VLThieman 42007 - New Style Cylinder For VL42007-THIE$1,047.17
2Thieman 31270-002 - Large Sheave With BushingThieman 31270-002 - Large Sheave With Bushing31270-002-THIE$117.79
3Thieman 31149-003 - Curb Side Sheave PinThieman 31149-003 - Curb Side Sheave Pin31149-003-THIE$26.91
4Thieman 31149-004 - Cylinder PinThieman 31149-004 - Cylinder Pin31149-004-THIE$24.70
5Thieman 31149-002 - Pusher Sheaves PinThieman 31149-002 - Pusher Sheaves Pin31149-002-THIE$32.29
6Thieman 31149-001 - Pusher To Cylinder PinThieman 31149-001 - Pusher To Cylinder Pin31149-001-THIE$24.28
7Thieman 5025-005 - Cable To Housing PinThieman 5025-005 - Cable To Housing Pin5025-005-THIE$21.01
8Thieman 31134 - Pusher Block WeldThieman 31134 - Pusher Block Weld31134-THIE$215.98
10Thieman 4933-001 - Tube Elbow BT-MAORBThieman 4933-001 - Tube Elbow BT-MAORB4933-001-THIE$17.04
11Thieman 4951-006 - Hose (0.25 x 34 Inches)Thieman 4951-006 - Hose (0.25 x 34 Inches)4951-006-THIE$49.98
12Thieman 4936-001 - 90 Degree Elbow MAORB-MAORBThieman 4936-001 - 90 Degree Elbow MAORB-MAORB4936-001-THIE$7.18
13Thieman 4948-005 - 6 GPM Flow ControlThieman 4948-005 - 6 GPM Flow Control4948-005-THIE$75.71
14Thieman 5700022 - Hairpin Cotter (0.12 x 2.50 Inches)Thieman 5700022 - Hairpin Cotter (0.12 x 2.50 Inches)5700022-THIE$1.50
15Thieman 9429664 - Flat Washer (0.75)Thieman 9429664 - Flat Washer (0.75)9429664-THIE$0.76
16Thieman 5026 - PinThieman 5026 - Pin5026-THIE$31.34
17Thieman 31068 - Upper Sheave BracketThieman 31068 - Upper Sheave Bracket31068-THIE$79.44
18Thieman 8426897 - Jam Nut (0.75)Thieman 8426897 - Jam Nut (0.75)8426897-THIE$1.50
19Thieman 31270-001 - Small Sheave With BushingThieman 31270-001 - Small Sheave With Bushing31270-001-THIE$113.62
20Thieman 3800-002 - CS Cable For 102 Inch Wide BodyThieman 3800-002 - CS Cable For 102 Inch Wide Body3800-002-THIE$556.42
20Thieman 3800-004 - CS Cable For 96 Inch Wide BodyThieman 3800-004 - CS Cable For 96 Inch Wide Body3800-004-THIE$549.50
21Thieman 3800-001 - SS Cable For 102 Inch Wide BodyThieman 3800-001 - SS Cable For 102 Inch Wide Body3800-001-THIE$459.65
21Thieman 3800-003 - SS Cable For 96 Inch Wide BodyThieman 3800-003 - SS Cable For 96 Inch Wide Body3800-003-THIE$449.28
22Thieman 8100-014 - Hex Head Screw (0.50-13 x 1.50 Inches)Thieman 8100-014 - Hex Head Screw (0.50-13 x 1.50 Inches)8100-014-THIE$1.52
23Thieman 9414074 - Lock Nut (0.50-13)Thieman 9414074 - Lock Nut (0.50-13)9414074-THIE$0.44
24Thieman 5700020 - Spring CotterThieman 5700020 - Spring Cotter5700020-THIE$2.98
25Thieman 8109-012 - Hex Head Screw (0.25-20 x 0.75 Inch)Thieman 8109-012 - Hex Head Screw (0.25-20 x 0.75 Inch)8109-012-THIE$0.44
26Thieman 4941-001 - Straight Fitting MJ-MORBThieman 4941-001 - Straight Fitting MJ-MORB4941-001-THIE$4.02

LIFTGATE PARTS ORDERED WITHOUT PROVIDING YOUR LIFTGATE MODEL/SERIAL NUMBERS ARE NOT ELIGIBLE FOR RETURN.

PLEASE NOTE THAT THE PRICES BELOW ARE FOR A SINGLE ITEM. THE QTY COLUMN ON THE DIAGRAM SHOWS THE TOTAL NUMBER YOU WILL NEED FOR A COMPLETE ASSEMBLY.
